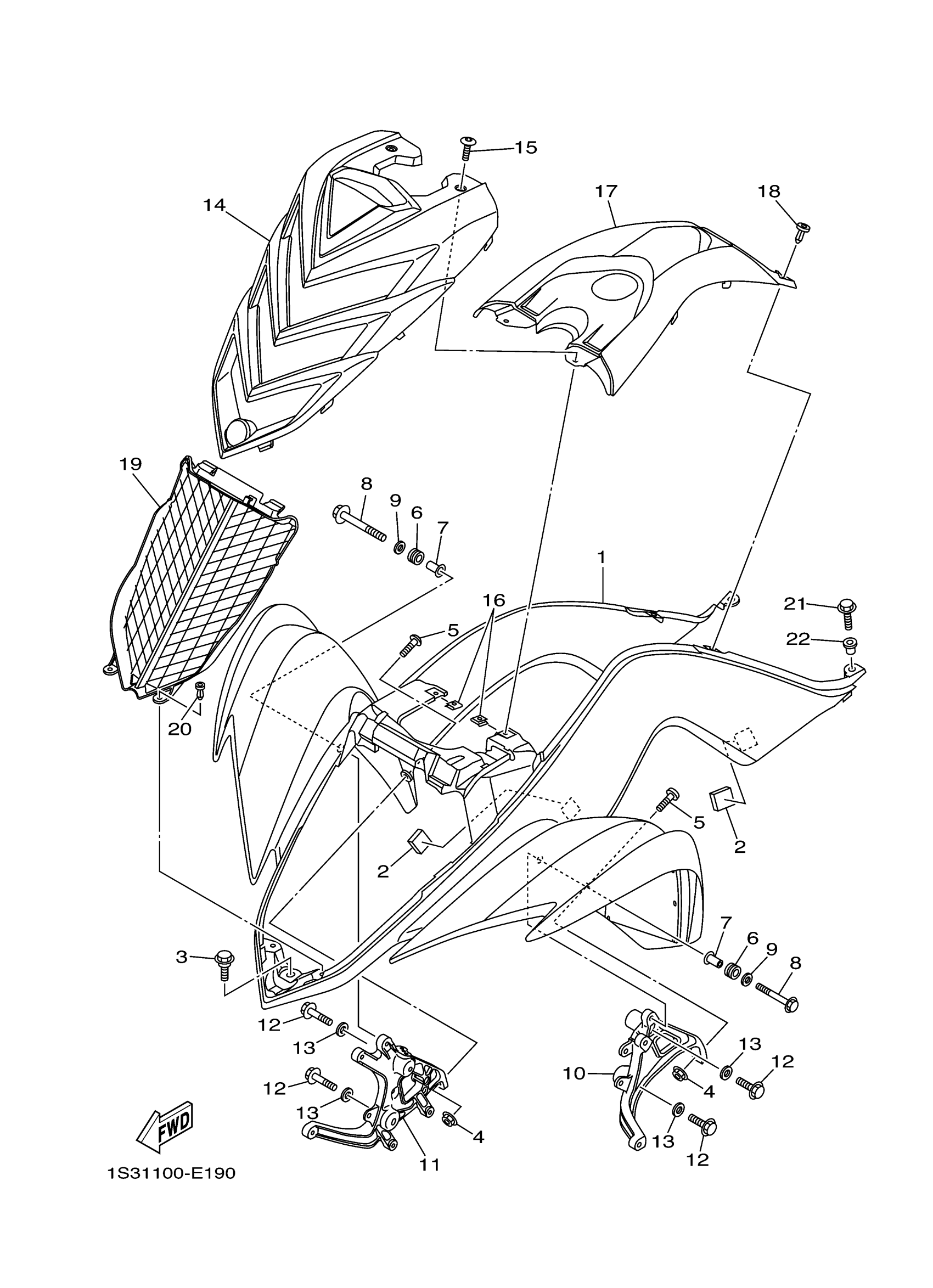

Yamaha YFM70RW (RAPTOR 700) 1S37 2007 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
1S3-W2151-01-00
Unavailable
1
FRONT FENDER COMP. (PASTEL DARK GRAY)
1S3-W2151-30-00
Unavailable
14
FENDER, FRONT 2
1S3-21556-A0-00
Unavailable
15
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
16
NUT, SPRING
90183-05008-00
Unavailable
17
COVER, TOP
1S3-2171A-00-00
Unavailable
17
COVER, TOP
1S3-2171A-20-00
Unavailable
18
RIVET
90269-06002-00
Unavailable
19
COVER, RADIATOR
1S3-12467-00-00
Unavailable
20
RIVET
90269-06002-00
Unavailable
21
BOLT, FLANGE
90105-06084-00
Unavailable
22
COLLAR
90387-06146-00
Unavailable
