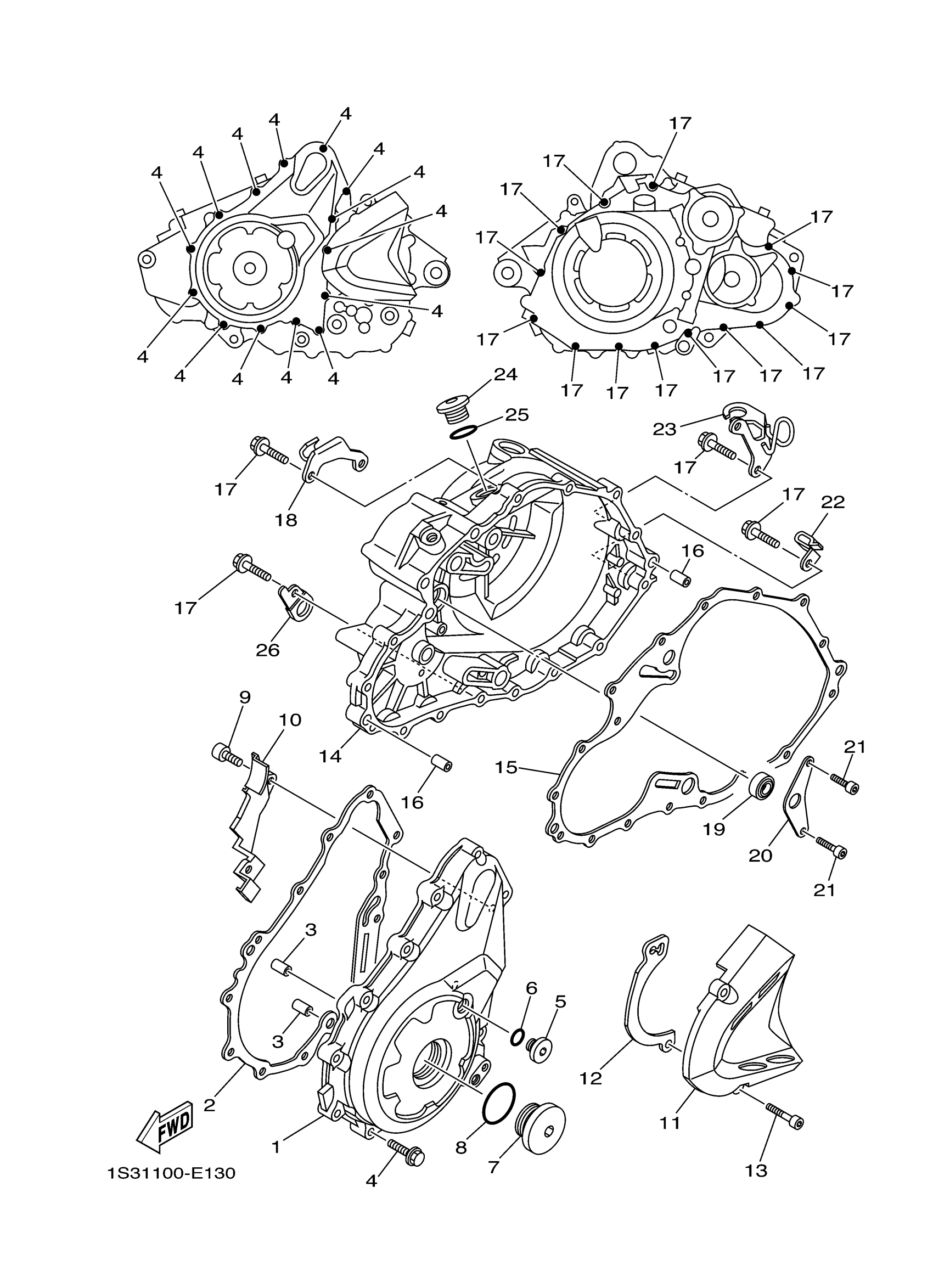

Yamaha YFM70RSXKL (RAPTOR 700R) 2LSP 2019 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1S3-15411-00-00

$239.99

2

GASKET, CRANKCASE COVER 1

1S3-15451-00-00

$18.49

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, FLANGE

95022-06030-00

$3.72

5

PLUG, STRAIGHT SCREW

90340-14016-00

$17.99

6

O-RING (2H9)

93210-14369-00

$7.49

7

PLUG, STRAIGHT SCREW

90340-36004-00

$18.99

8

O-RING

93210-35804-00

$0.48

9

BOLT

91312-05014-00

$2.97

10

PLATE

1S3-15113-00-00

Unavailable

11

COVER, CRANKCASE 2

1S3-15421-00-00

$23.99

12

GUIDE, CHAIN

1S3-17466-00-00

$19.99

13

BOLT,SOCKET

91317-06025-00

$5.60

14

COVER, CRANKCASE 3

1S3-15431-00-00

$358.99

15

GASKET, CRANKCASE COVER 3

1S3-15462-00-00

$19.99

16

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

17

BOLT, FLANGE

95022-06030-00

$3.72

18

HOLDER, CLUTCH CABLE

1S3-15441-00-00

Unavailable

19

OIL SEAL(4GY)

93101-14164-00

Unavailable

20

HOLDER

1S3-15118-00-00

Unavailable

21

BOLT,SOCKET

91317-06012-00

Unavailable

22

CLAMP

90461-10011-00

Unavailable

23

HOLDER

1S3-1546C-00-00

Unavailable

24

PLUG

4H7-15189-00-00

Unavailable

25

O-RING

93210-20802-00

Unavailable

26

CLAMP

90462-08046-00

Unavailable
