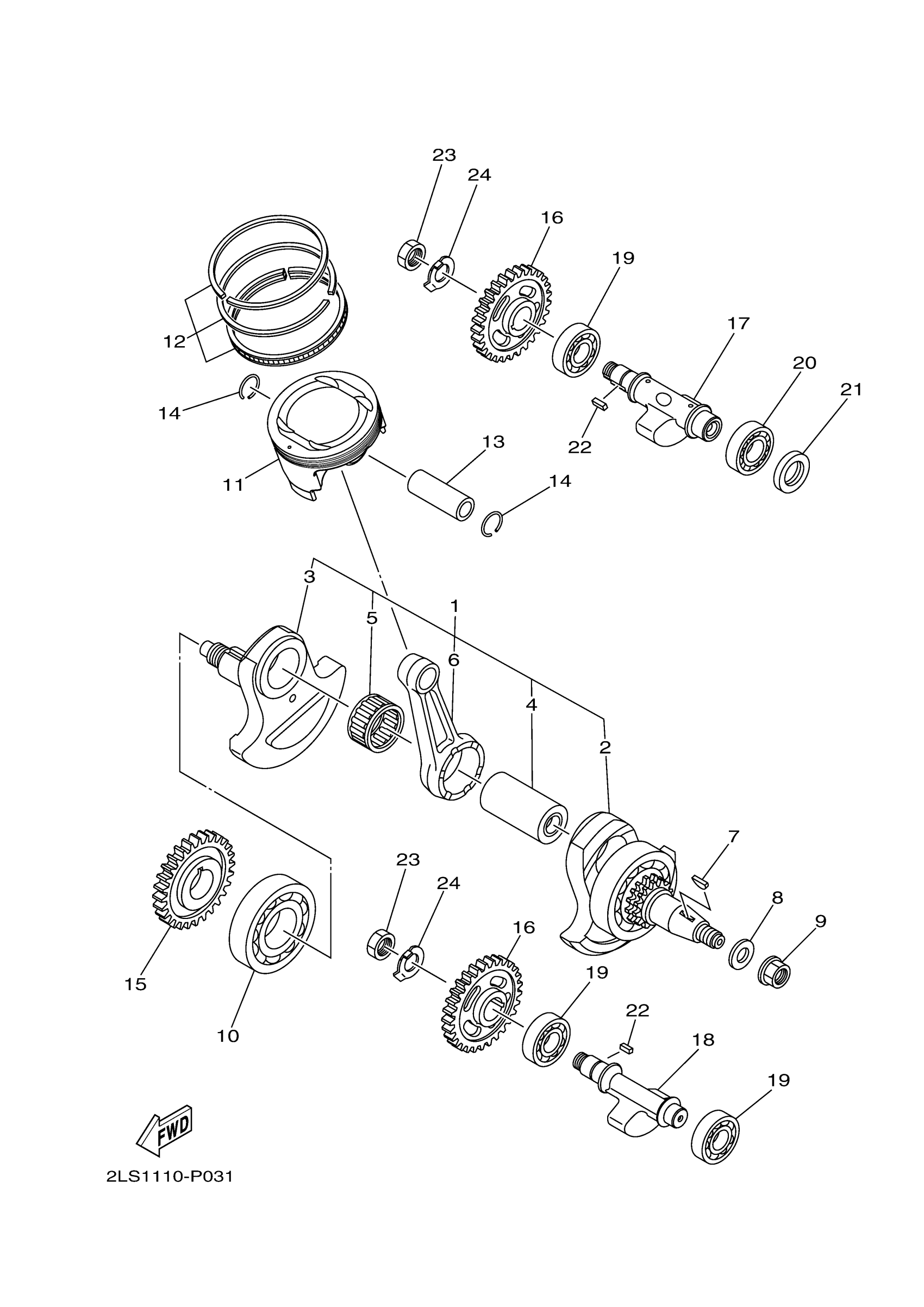

Yamaha YFM70RSXJL (RAPTOR 700R) 2LSF 2018 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

2LS-11400-10-00

$567.99

2

CRANK SUB ASSY 1

1S3-11401-09-00

$396.99

3

CRANK 2

1S3-11422-00-00

$300.99

4

PIN, CRANK 1

1S3-11681-00-00

$102.99

5

BEARING

93310-84037-00

$83.99

6

ROD, CONNECTING

2BG-11651-00-00

$146.99

7

KEY, WOODRUFF

90280-05001-00

$12.49

8

WASHER, PLATE

90201-16013-00

$13.99

9

NUT

90179-16004-00

$15.99

10

BEARING

93306-30810-00

$75.99

11

PISTON (STD)

2BG-11631-00-00

$159.99

12

PISTON RING SET (STD)

1S3-11603-10-00

$61.99

13

PIN, PISTON

5VK-11633-00-00

$41.99

14

CIRCLIP

93450-24154-00

$3.14

15

GEAR, DRIVE

1S3-11536-10-00

$120.99

16

GEAR, BALANCE WEIG

1S3-11531-10-00

Unavailable

17

WEIGHT 1

2LS-11454-01-00

Unavailable

18

WEIGHT 2

2LS-11464-01-00

Unavailable

19

BEARING

93306-20481-00

Unavailable

20

BEARING(1FF)

93306-00519-00

Unavailable

21

OIL SEAL (5Y1)

93101-25106-00

Unavailable

22

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable

23

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

24

WASHER, LOCK (30X)

90215-16221-00

Unavailable
