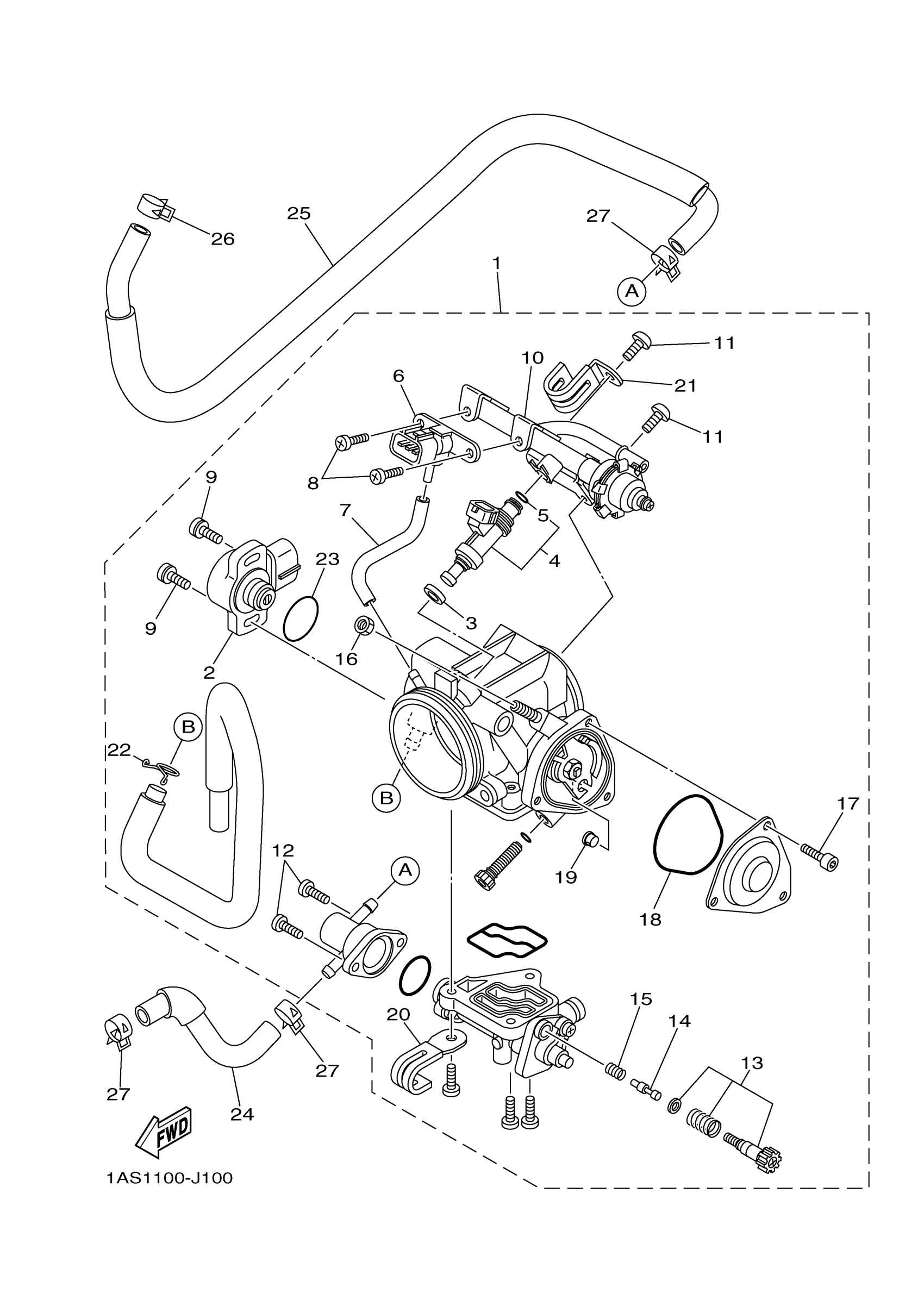

Yamaha YFM70RSSHB (RAPTOR 700R SE) B469 2017 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1S3-13750-11-00

$997.99

2

THROTTLE SENSOR AS

8GL-85885-01-00

Unavailable

3

GASKET, MANIFOLD

8FP-13556-00-00

$11.73

4

INJECTOR ASSY

5VK-13761-00-00

Unavailable

5

O-RING

5PS-14147-00-00

$8.68

6

SENSOR, PRESSURE

1C7-82380-00-00

$151.99

7

PIPE 1

5JW-14348-00-00

$17.76

8

SCREW, PAN

98507-06010-00

$2.52

9

SCREW

8CC-14216-10-00

$6.68

10

DELIVERY PIPE ASSY 1

1S3-13160-00-00

Unavailable

11

SCREW, PAN

98517-06012-00

$2.93

12

SCREW, PAN

98517-05012-00

$3.65

13

ADJUST SCREW SET

5VX-14503-00-00

$70.67

14

PLUNGER

1S3-13493-00-00

$41.03

15

. SPRING, AIR ADJUSTING

4BH-14134-00-00

$2.56

16

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

17

BOLT

91312-04006-00

Unavailable

18

O-RING

4WV-14147-10-00

Unavailable

19

GUIDE, CABLE

1UY-14155-00-00

Unavailable

20

PLATE

3JC-14146-00-00

Unavailable

21

JET

5JW-14945-00-00

Unavailable

22

CLIP

90467-090A2-00

Unavailable

23

O-RING

5YP-14562-00-00

Unavailable

24

HOSE 1

1PE-E243A-00-00

Unavailable

25

HOSE 2

1PE-E243E-00-00

Unavailable

26

CLIP(3BM)

90467-10135-00

Unavailable

27

CLIP(3BM)

90467-10135-00

Unavailable
