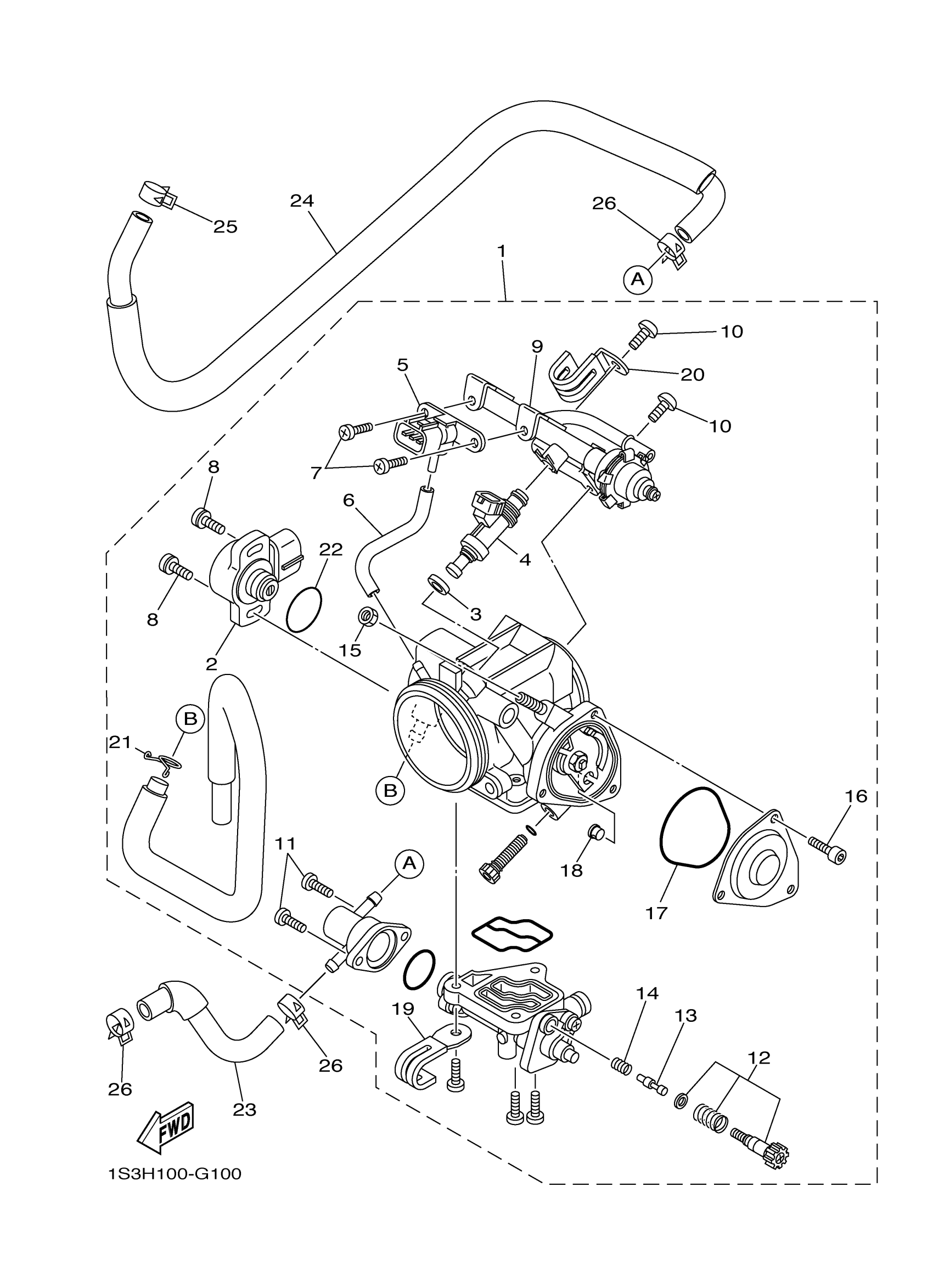

Yamaha YFM70RSPX (RAPTOR 700 SPECIAL EDITION) 1S3M 2008 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1S3-13750-11-00

$923.99

2

THROTTLE SENSOR AS

8GL-85885-01-00

$92.99

3

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

4

INJECTOR ASSY

5VK-13761-00-00

Unavailable

5

SENSOR, PRESSURE

1C7-82380-00-00

$184.99

6

PIPE 1

5JW-14348-00-00

$20.99

7

SCREW, PAN

98507-06010-00

$3.55

8

SCREW

8CC-14216-10-00

$7.99

9

DELIVERY PIPE ASSY 1

1S3-13160-00-00

Unavailable

10

SCREW, PAN

98517-06012-00

$3.78

11

SCREW, PAN

98517-05012-00

$4.73

12

ADJUST SCREW SET

5VX-14503-00-00

$85.99

13

PLUNGER

1S3-13493-00-00

$47.99

14

. SPRING, AIR ADJUSTING

4BH-14134-00-00

Unavailable

15

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

16

BOLT

91312-04006-00

Unavailable

17

O-RING

4WV-14147-10-00

Unavailable

18

GUIDE, CABLE

1UY-14155-00-00

Unavailable

19

PLATE

3JC-14146-00-00

Unavailable

20

JET

5JW-14945-00-00

Unavailable

21

CLIP

90467-090A2-00

Unavailable

22

O-RING

5YP-14562-00-00

Unavailable

23

HOSE 1

1S3-1243A-00-00

Unavailable

24

HOSE 2

1S3-1243E-00-00

Unavailable

25

CLIP(3BM)

90467-10135-00

Unavailable

26

CLIP(3BM)

90467-10135-00

Unavailable
