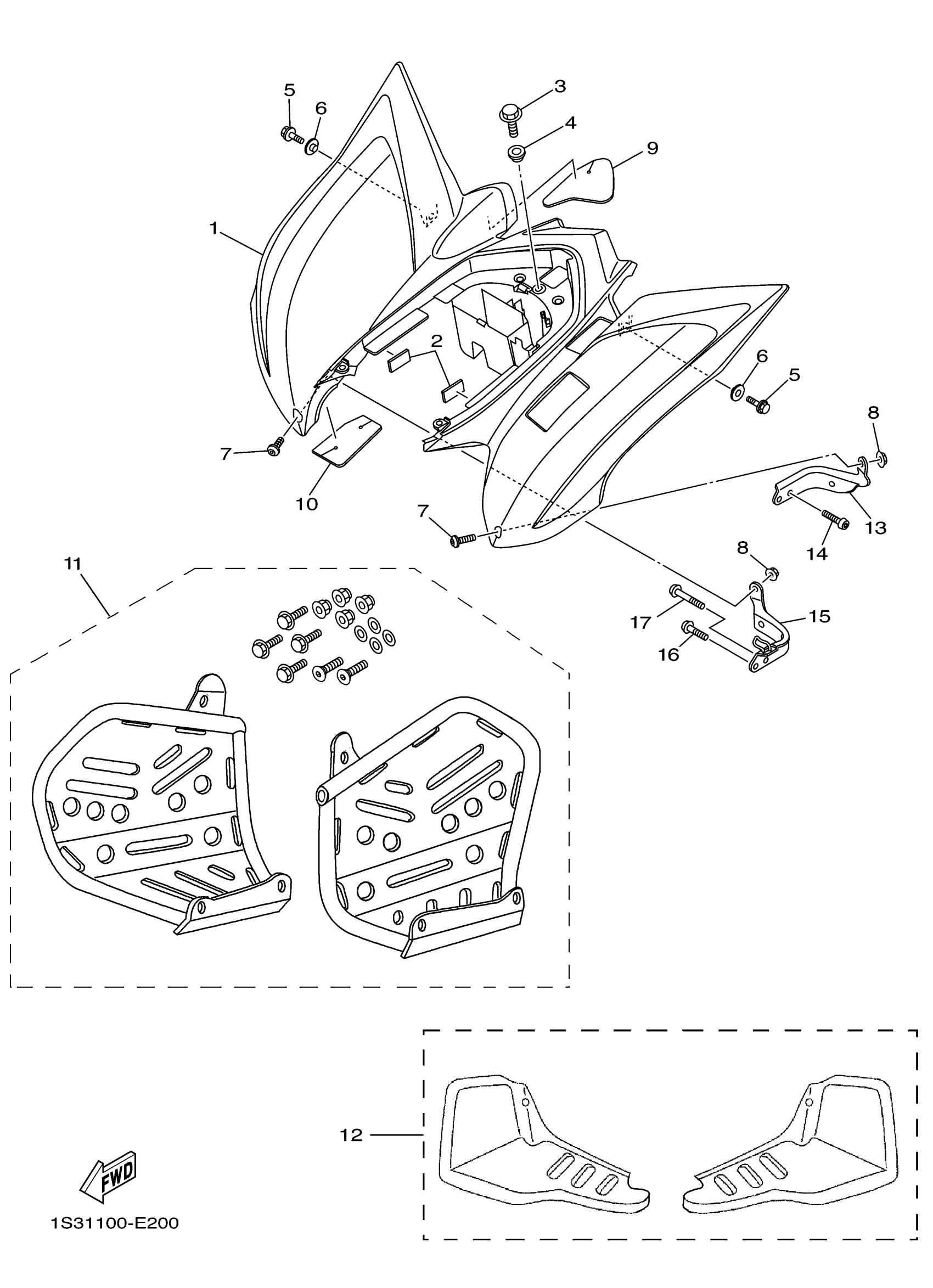

Yamaha YFM70RSP2X (RAPTOR 700 SPECIAL EDITION 2) 1S3S 2008 REAR FENDER FOOTWELL Diagram

#

Description
Price

1

REAR FENDER COMP.

1S3-W2161-40-00

Unavailable

2

DAMPER, STOPPER

1S3-2140A-00-00

$7.99

3

BOLT, FLANGE

90105-06084-00

$4.61

4

COLLAR

90387-06153-00

$7.49

5

BOLT, FLANGE

95812-06014-00

$5.60

6

COLLAR

90387-06153-00

$7.49

7

BOLT

90111-06038-00

$4.29

8

NUT, U FLANGE

95604-06200-00

$8.49

9

COVER, REAR FENDER 1

1S3-2163A-00-00

$5.49

10

COVER, REAR FENDER 2

1S3-2163E-00-00

$4.06

11

FOOTWELL KIT

GYT-1S357-00-AL

Unavailable

12

PLASTIC FOOT EX- RAPTOR 700

ATV-1AS57-00-01

Unavailable

13

STAY, REAR

1S3-21643-10-00

$20.99

14

BOLT, BUTTON HEAD

92012-08020-00

$7.49

15

STAY, REAR

1S3-21644-10-00

$45.99

16

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

17

BOLT, BUTTON HEAD

92012-08035-00

Unavailable
