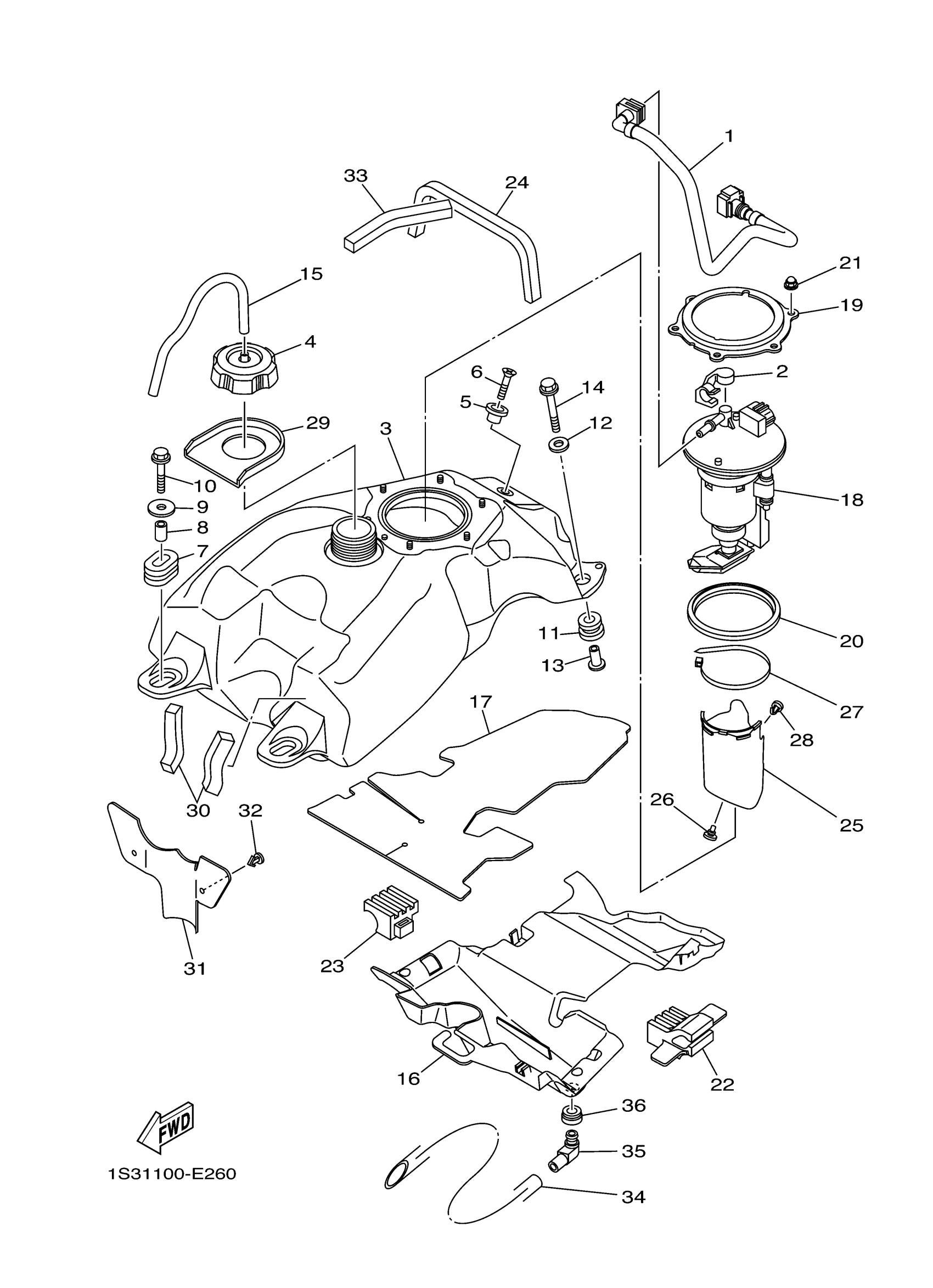

Yamaha YFM70RSP2X (RAPTOR 700 SPECIAL EDITION 2) 1S3S 2008 FUEL TANK Diagram
#
Description
Price
3
FUEL TANK COMP.
1S3-24110-20-00
Unavailable
7
GROMMET
90480-01017-00
Unavailable
16
DAMPER, PLATE 1
1S3-2414H-00-00
Unavailable
17
INSULATOR, FUEL TANK 1
1S3-2416F-00-00
Unavailable
18
FUEL PUMP COMP.
1S3-13907-13-00
Unavailable
19
BRACKET, FUEL PUMP
1S3-24491-10-00
Unavailable
20
O-RING
1S3-24486-00-00
Unavailable
21
NUT (J17)
95380-06800-00
Unavailable
22
STOPPER 1
1S3-24278-00-00
Unavailable
23
STOPPER 2
1S3-24279-00-00
Unavailable
24
DAMPER, LOCATING 1
1S3-24181-00-00
Unavailable
25
COVER
1S3-24452-00-00
Unavailable
26
PLUG
90338-05008-00
Unavailable
27
CLAMP
90464-66001-00
Unavailable
28
RIVET
90269-07011-00
Unavailable
29
DAMPER, PLATE 2
1S3-2414J-00-00
Unavailable
30
DAMPER, LOCATING 2
1S3-24182-00-00
Unavailable
31
PLATE
1S3-2413X-00-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
DAMPER, LOCATING 3
1S3-24183-00-00
Unavailable
34
HOSE (L400)
90445-16007-00
Unavailable
35
PIPE
31A-14419-00-00
Unavailable
36
GROMMET
31A-14435-01-00
Unavailable
