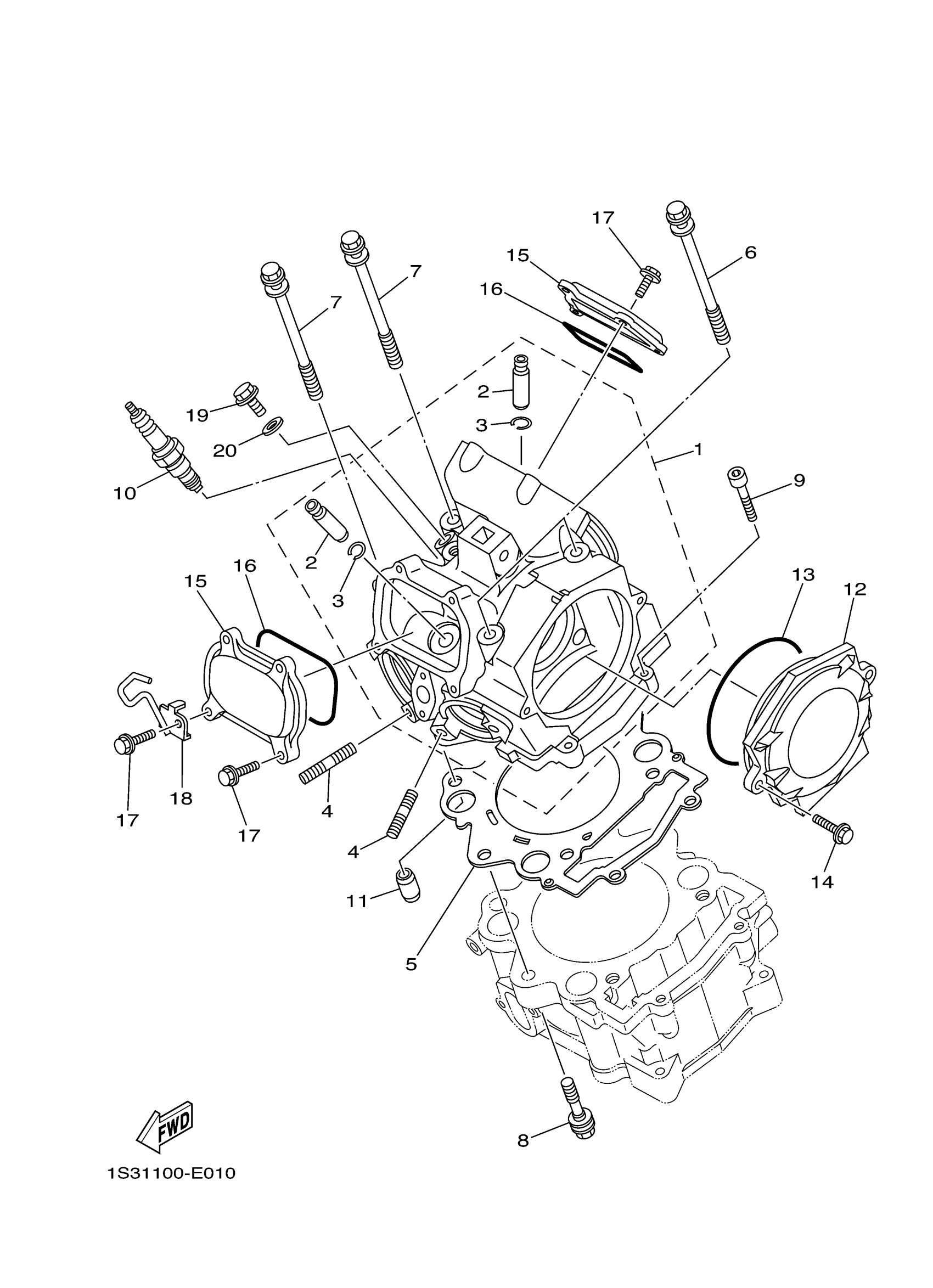

Yamaha YFM70RSP2X (RAPTOR 700 SPECIAL EDITION 2) 1S3S 2008 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1S3-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$49.99

3

CIRCLIP (4G0)

93440-10085-00

$8.49

4

BOLT, STUD

95612-08625-00

$7.49

5

GASKET, CYLINDER HEAD 1

3B4-11181-00-00

$53.99

6

BOLT

90109-09003-00

$10.49

7

BOLT

90109-09002-00

$10.49

8

BOLT

90109-09005-00

$8.49

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

10

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

11

PIN, DOWEL(4XL)

93612-16254-00

$5.60

12

COVER, CYLINDER HEAD SIDE 3

1S3-11185-10-00

Unavailable

13

O-RING (70R)

93210-96601-00

$12.49

14

BOLT, FLANGE

95022-06020-00

$3.62

15

COVER, CYLINDER HEAD SIDE 2

1S3-11186-00-00

$30.99

16

O-RING (14X)

93210-78544-00

Unavailable

17

BOLT, FLANGE

95022-06020-00

$3.62

18

HOLDER 1

1S3-1131E-00-00

Unavailable

19

BOLT, UNION

90401-08004-00

Unavailable

20

GASKET

90430-08119-00

Unavailable
