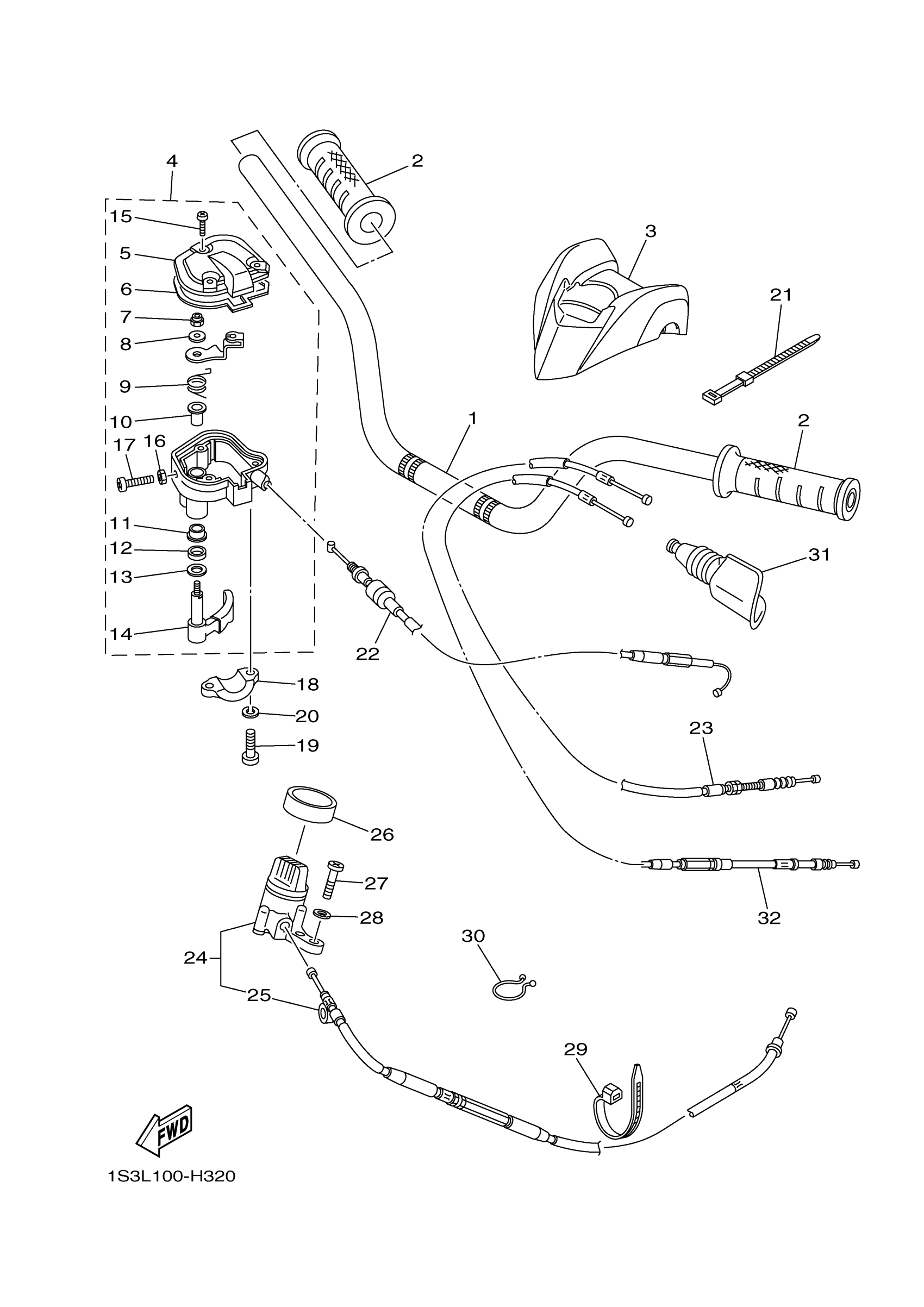

Yamaha YFM70RSEY (RAPTOR 700 SPECIAL EDITION) 1S3W 2009 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

1S3-26111-20-00

Unavailable

2

GRIP (LEFT)

5LP-26241-00-00

$24.99

3

PROTECTOR, HANDLEBAR

1S3-26124-20-00

Unavailable

4

THROTTLE LEVER ASS

1S3-26250-02-00

$128.99

5

CAP, GEAR

1S3-2628F-00-00

$17.49

6

GASKET

1S3-2628G-00-00

$10.99

7

NUT, U

95617-05100-00

$9.49

8

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

9

SPRING

1NV-26304-00-00

$11.99

10

COLLAR

1NV-26259-01-00

$7.99

11

COLLAR

1NV-2625K-00-00

$6.99

12

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

13

WASHER

1NV-26129-00-00

$6.99

14

LEVER, THROTTLE

1S3-2625G-01-00

$61.99

15

SCREW(3HE)

90149-04278-00

$2.39

16

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

Unavailable

18

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

19

SCREW, PAN HEAD

98517-05020-00

Unavailable

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable

22

CABLE, THROTTLE 1

1S3-26311-11-00

Unavailable

23

CABLE, CLUTCH

1S3-26335-01-00

Unavailable

24

REV. LEVER ASSY.

1S3-26150-10-00

Unavailable

25

CABLE, CONTROL 1

1S3-2637E-11-00

Unavailable

26

DAMPER

1S3-26113-00-00

Unavailable

27

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

28

WASHER, PLAIN (646)

92990-05600-00

Unavailable

29

CLAMP(4FM)

90464-15195-00

Unavailable

30

CLAMP

90464-25267-00

Unavailable

31

COVER, HANDLE LEVER 1

31A-26372-00-00

Unavailable

32

CABLE, BRAKE

1S3-26341-00-00

Unavailable
