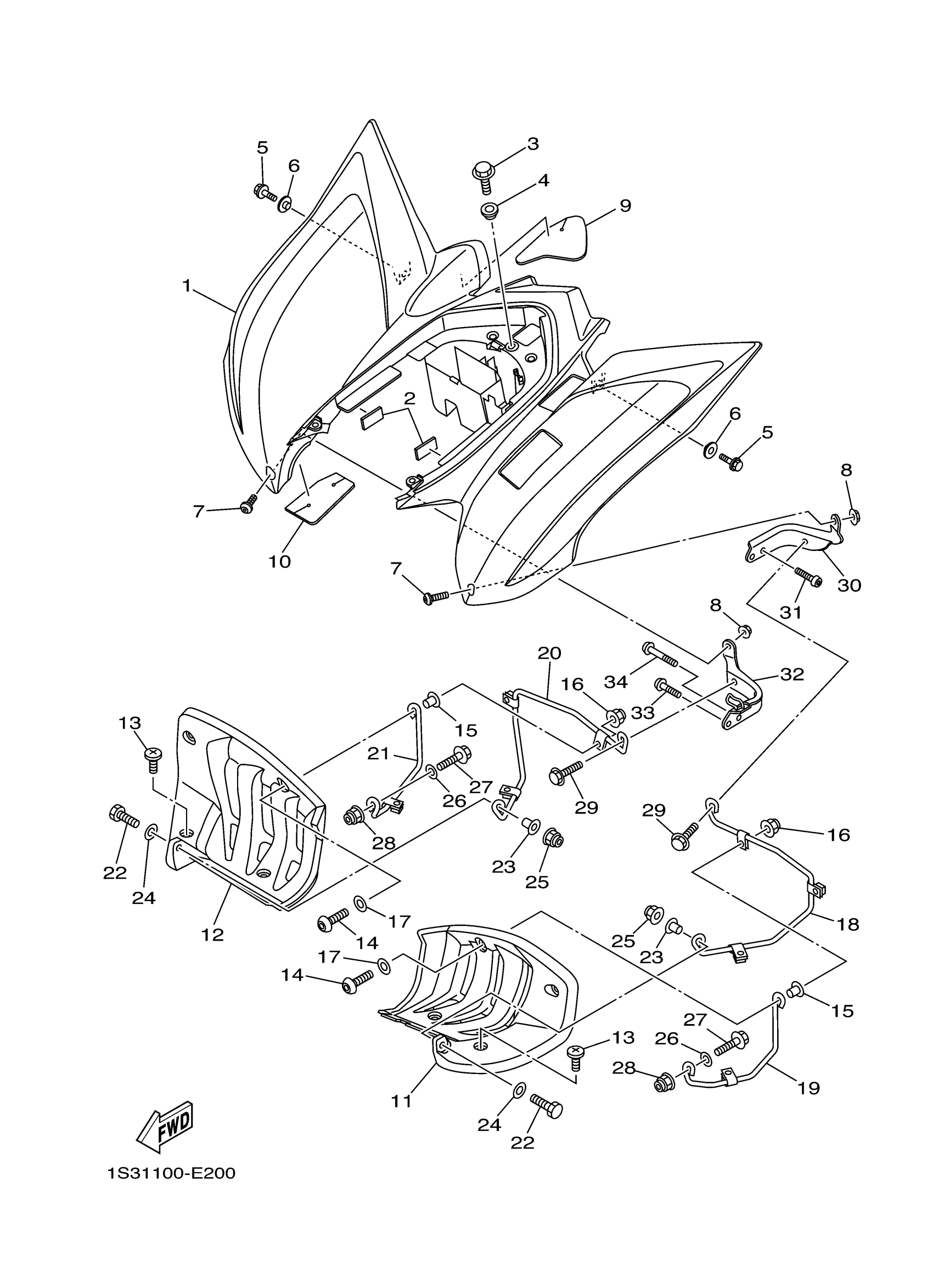

Yamaha YFM70RSEY (RAPTOR 700 SPECIAL EDITION) 1S3W 2009 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER COMP.
1S3-W2161-41-00
Unavailable
17
WASHER, PLATE
90201-06380-00
Unavailable
18
STAY 1
1S3-2164F-10-00
Unavailable
19
STAY 3
1S3-2164H-20-00
Unavailable
20
STAY 2
5TG-2164G-20-00
Unavailable
21
STAY 4
1S3-2164J-20-00
Unavailable
22
BOLT, HEXAGON
97017-06025-00
Unavailable
23
COLLAR
90387-06204-00
Unavailable
24
WASHER, PLATE
90201-06093-00
Unavailable
26
WASHER, PLATE
90201-08053-00
Unavailable
27
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
28
NUT, SELF-LOCKING
95602-08200-00
Unavailable
29
BOLT, FLANGE
95814-08016-00
Unavailable
30
STAY, REAR
1S3-21643-10-00
Unavailable
31
BOLT, BUTTON HEAD
92012-08020-00
Unavailable
32
STAY, REAR
1S3-21644-10-00
Unavailable
33
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
34
BOLT, BUTTON HEAD
92012-08035-00
Unavailable
