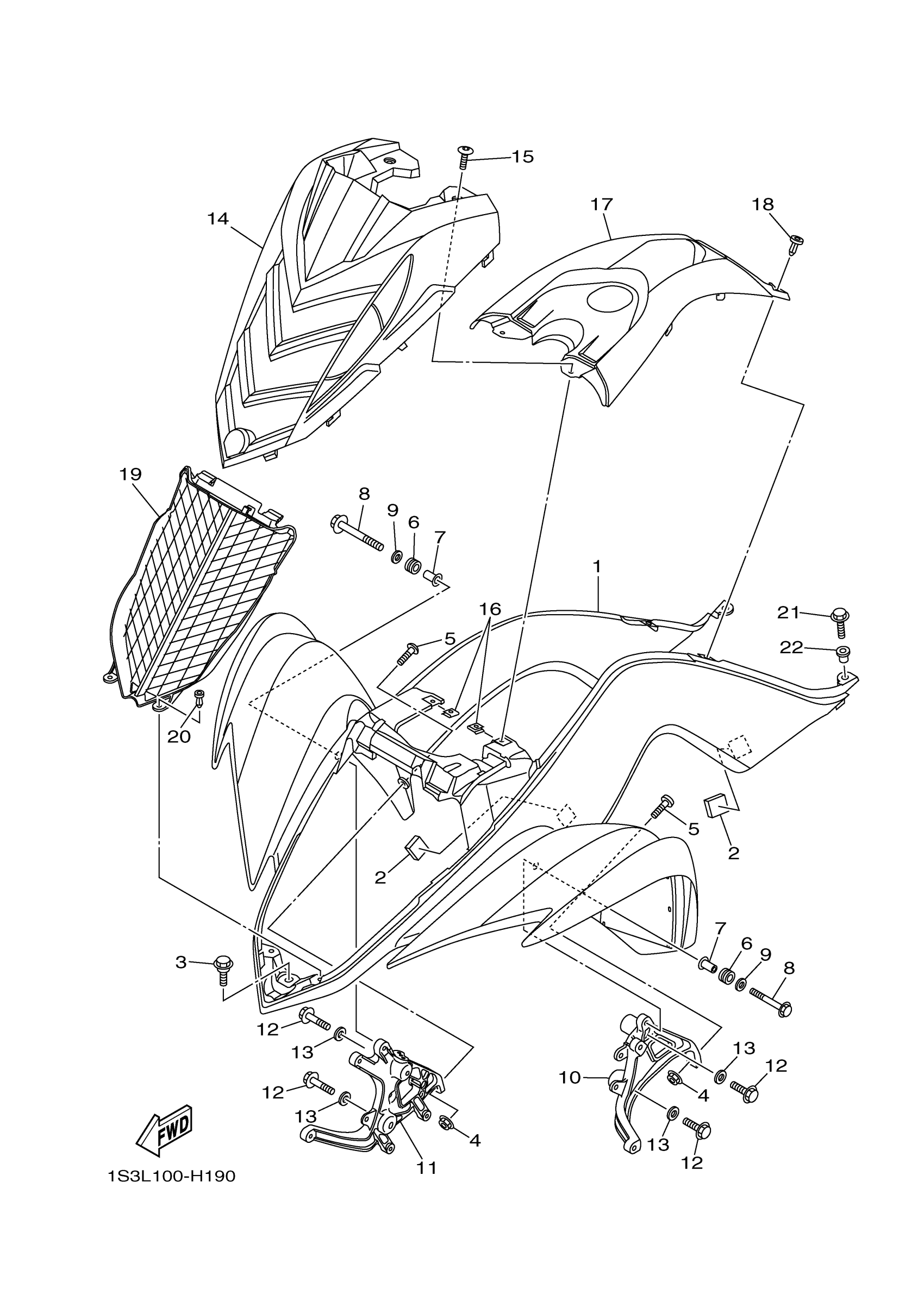

Yamaha YFM70RSEY (RAPTOR 700 SPECIAL EDITION) 1S3W 2009 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

1S3-W2151-41-00

Unavailable

2

DAMPER 1

1S3-21541-00-00

$7.99

3

BOLT

90109-06172-00

$7.49

4

NUT, U FLANGE

95604-06200-00

$8.49

5

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

6

GROMMET 839774310000

90480-14023-00

$7.49

7

COLLAR

90387-06136-00

$7.49

8

BOLT, FLANGE

95812-06030-00

$8.49

9

WASHER, PLATE

90201-06078-00

$5.60

10

STAY, FENDER 1

1S3-21513-00-00

$65.99

11

STAY, FENDER 2

1S3-21514-00-00

$80.99

12

BOLT, FLANGE

95812-06014-00

$5.60

13

WASHER, PLATE

90201-06089-00

$4.29

14

PANEL, FRONT

1S3-23391-A0-00

Unavailable

15

SCREW(3YF)

90149-05299-00

$4.14

16

NUT, SPRING

90183-05008-00

Unavailable

17

COVER, TOP

1S3-2171A-E0-00

Unavailable

18

RIVET

90269-06002-00

Unavailable

19

COVER, RADIATOR

1S3-12467-00-00

Unavailable

20

RIVET

90269-06002-00

Unavailable

21

BOLT, FLANGE

90105-06084-00

Unavailable

22

COLLAR

90387-06146-00

Unavailable
