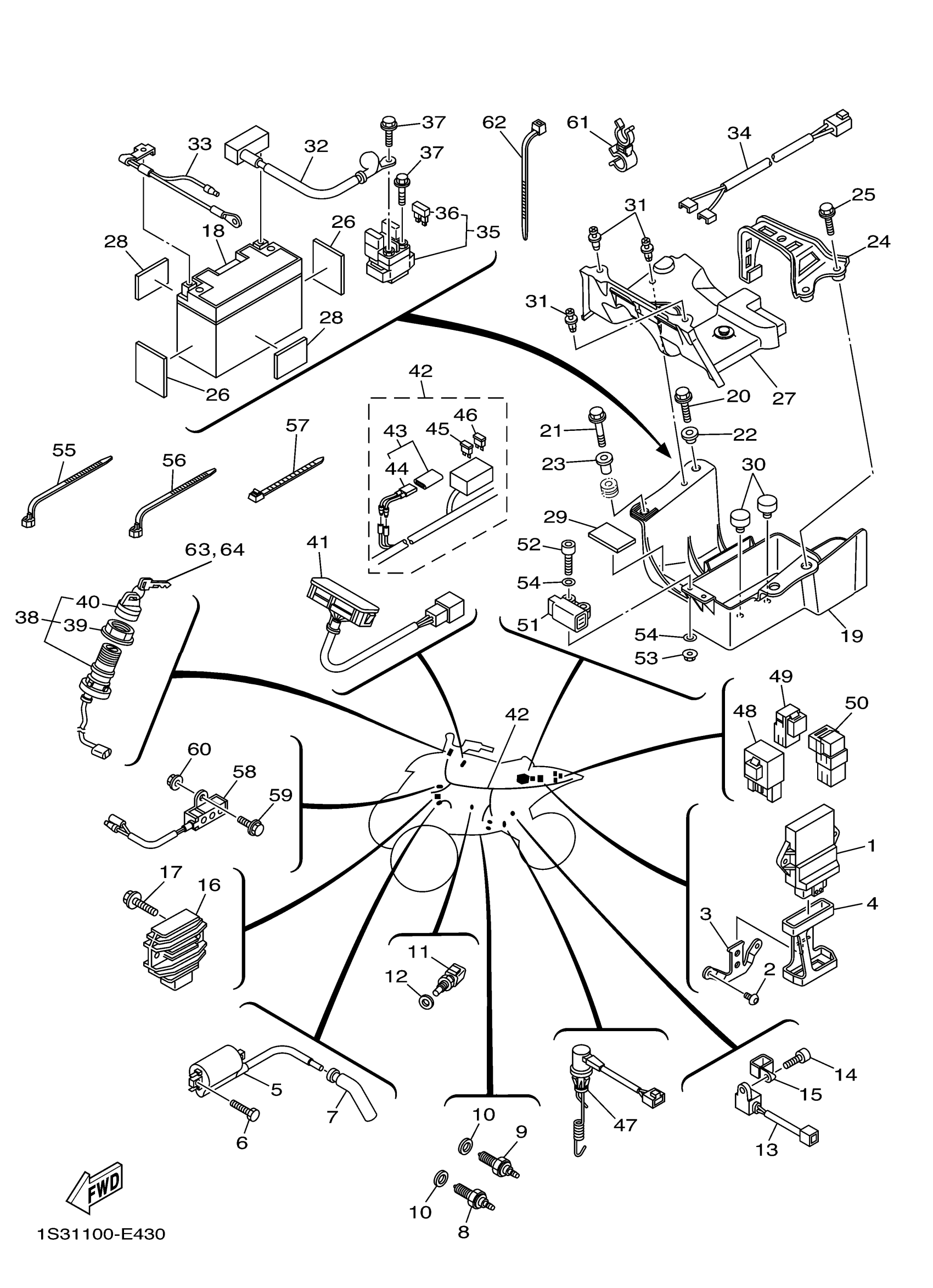

Yamaha YFM70RSEW (RAPTOR 700 SPECIAL EDITION) 1S3A 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

Engine Control Unit Assembly

1S3-8591A-01-00

Unavailable

2

BOLT, BUTTON HEAD

92012-06010-00

$2.45

3

BRACKET, C.D.I. UNIT

1S3-21274-00-00

$8.22

4

BAND

1S3-85546-00-00

$21.74

5

IGNITION COIL ASSY

4DN-82320-01-00

$97.02

6

BOLT(3JK)

97027-05020-00

$2.48

7

PLUG CAP ASSY

5VK-82370-00-00

$56.94

8

NEUTRAL SWITCH ASSY

5LP-82540-01-00

$32.90

9

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

10

GASKET (1KH,1.0T)

90430-10148-00

$4.74

11

THERMOSENSOR ASSY

5PS-85790-00-00

$73.65

12

GASKET(2GH)

90430-12202-00

$7.09

13

SENSOR, SPEED

1S3-83755-02-00

$110.65

14

BOLT(3MA)

91312-06016-00

$4.89

15

CLAMP

90461-10004-00

$7.05

16

RECTIFIER & REGULATOR ASSY

5BN-81960-00-00

$177.40

17

BOLT, FLANGE

95822-06025-00

$1.46

18

YT9BB-S YUASA BATTERY - SA

YT9-BBS00-00-00

$124.30

19

BOX, BATTERY 1

1S3-8212B-00-00

Unavailable

20

BOLT, FLANGE

90105-06084-00

$3.92

21

BOLT, FLANGE

95817-06030-00

$3.91

22

COLLAR

90387-06153-00

$5.75

23

COLLAR

90387-06168-00

$6.18

24

BRACKET, BATTERY

1S3-82128-00-00

$46.32

25

BOLT, FLANGE

95817-06020-00

$2.69

26

SEAT, BATTERY

1S3-82123-00-00

$3.09

27

COVER, BATTERY

1S3-82129-00-00

$59.82

28

SEAT, BATTERY

1S3-82122-00-00

$3.03

29

DAMPER

22F-2139X-00-00

$6.38

30

PAD, BATTERY

5TG-82121-10-00

$3.58

31

RIVET

90269-06002-00

$6.17

32

WIRE, PLUS LEAD

1S3-82115-00-00

$32.90

33

WIRE, MINUS LEAD

1S3-82116-10-00

$56.89

34

WIRE, LEAD

1S3-82541-00-00

$21.25

35

STARTER RELAY ASSY (2768106-A)

1S3-81940-00-00

$82.36

36

FUSE (20A)

2GV-82151-00-00

$4.21

37

BOLT, FLANGE

95022-06008-00

$6.26

38

MAIN SWITCH ASSY

5LP-82510-01-00

$60.18

39

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

40

CAP, KEY

3HN-82579-00-00

$12.27

41

PILOT LIGHT ASSY

1S3-83530-01-00

$106.64

42

WIRE HARNESS ASSY

1S3-82590-10-00

Unavailable

43

CIRCUIT BREAKER ASSY

5GT-82180-00-00

$27.83

44

THERMO SWITCH ASSY

5GT-82560-00-00

$31.58

45

FUSE (15A)

67F-82151-50-00

$3.71

46

. FUSE (10A)

67F-82151-40-00

$6.67

47

STOP SWITCH ASSY

1S3-82530-11-00

$33.79

48

RELAY ASSY

5VK-81950-33-00

Unavailable

49

RELAY ASSY (5EA-02)

5EA-81950-20-00

$49.46

50

RELAY ASSY

5DM-81950-01-00

$24.72

51

SENSOR, LEAN ANGLE

5PS-82576-02-00

$77.77

52

BOLT

91312-04025-00

$1.49

53

NUT, FLANGE

95707-04500-00

$6.68

54

WASHER, PLATE

90201-04030-00

$1.51

55

CLAMP

90464-13077-00

$6.68

56

CLAMP(4FM)

90464-15195-00

$2.77

57

CLAMP (6E5)

90465-13M11-00

$5.72

58

RESISTOR ASSY

1S3-85370-00-00

$91.97

59

BOLT, FLANGE

95817-06016-00

$1.49

60

NUT, FLANGE

95702-06500-00

$1.98

61

CLAMP

90464-16013-00

Unavailable

62

CLAMP

90465-10098-00

$2.24

63

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

64

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92
