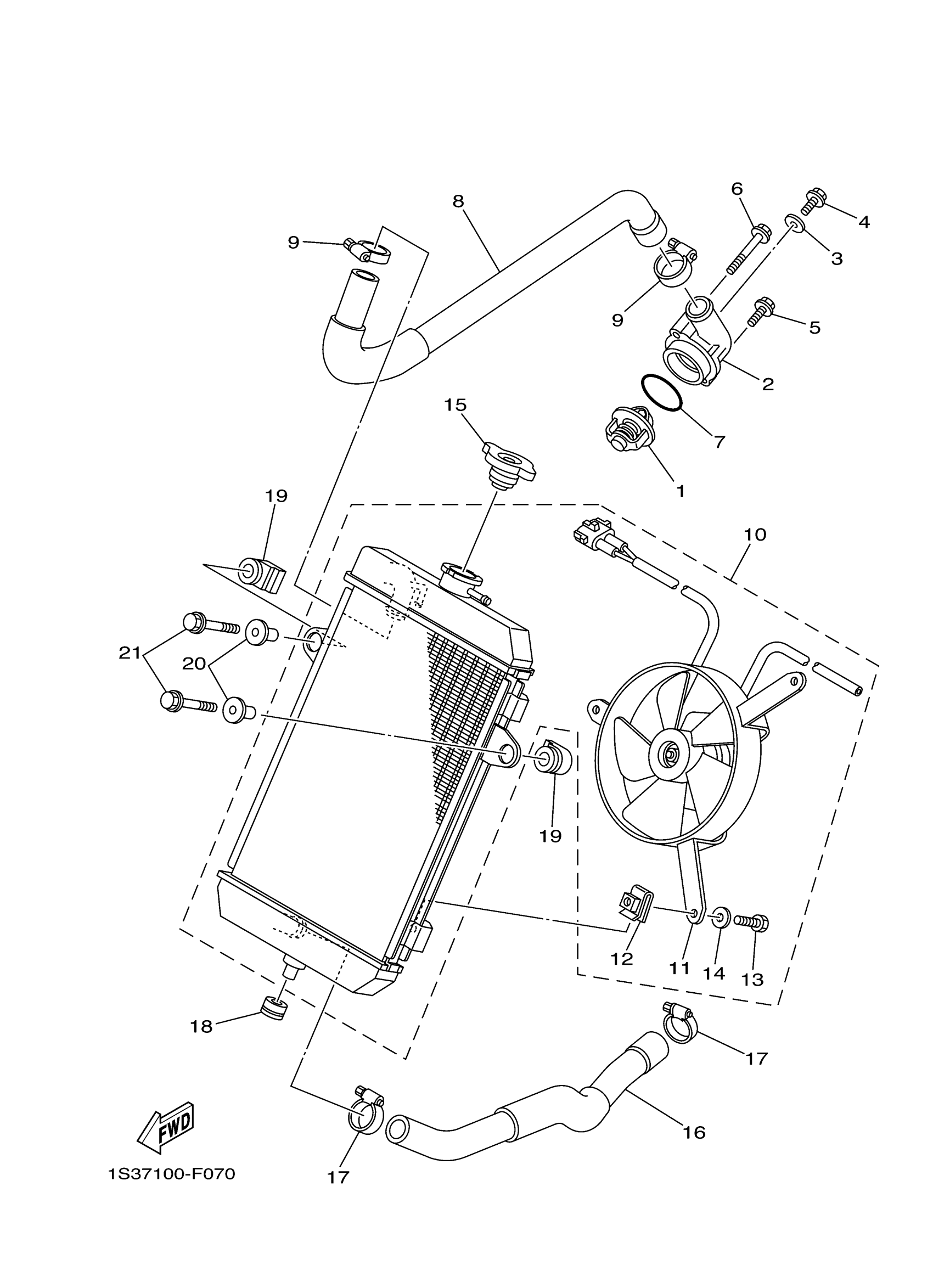

Yamaha YFM70RSE2W (RAPTOR 700 SPECIAL EDITION 2) 1S3E 2007 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

5VK-12410-01-00

$27.28

2

COVER, THERMOSTAT

1S3-12413-00-00

$41.97

3

GASKET 256113960000

90430-06014-00

$7.23

4

BOLT, FLANGE

95022-06010-00

$5.45

5

BOLT, FLANGE

95022-06020-00

$3.32

6

BOLT, FLANGE

95022-06045-00

$2.48

7

O-RING (132)

93210-41042-00

$5.72

8

HOSE 3

1S3-12578-00-00

$41.97

9

HOSE CLAMP ASSY

90450-32015-00

$15.23

10

YFM700R RADIATOR KIT

1PE-WE246-00-00

$532.43

11

BLOWER ASSY

1S3-12405-00-00

$314.94

12

PLATE

1AA-12535-00-00

$12.27

13

BOLT(3JP)

97017-06010-00

$2.62

14

WASHER(6TA)

92907-06600-00

$0.78

15

CAP, RADIATOR

4FL-12462-00-00

$55.82

16

HOSE 4

1S3-12579-00-00

$40.38

17

HOSE CLAMP ASSY

90450-32015-00

$15.23

18

GROMMET (13X)

90480-18330-00

$2.46

19

DAMPER, RADIATOR

1S3-12465-00-00

$4.98

20

COLLAR

90387-06166-00

$10.20

21

BOLT, FLANGE

95817-06030-00

$3.91
