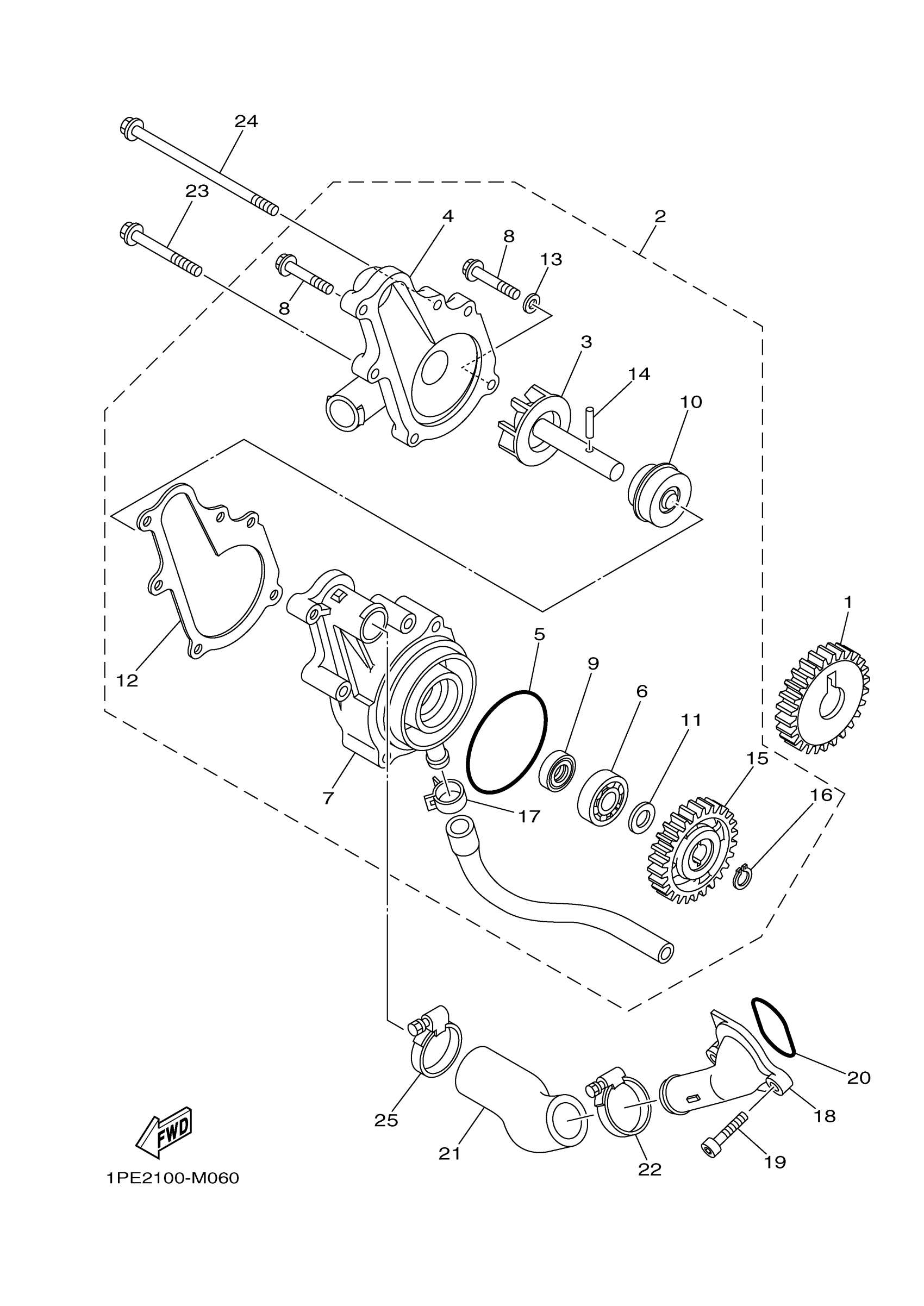

Yamaha YFM70RSCTW (RAPTOR 700R SE) DE34 2026 WATER PUMP Diagram

#

Description
Price

1

GEAR, DRIVE

1S3-12436-00-00

$49.91

2

WATER PUMP ASSY

1S3-12420-00-00

$250.26

3

IMPELLER SHAFT ASSY

1S3-12450-00-00

$48.06

4

COVER, HOUSING

1S3-12422-00-00

Unavailable

5

O-RING(2HT)

93210-61750-00

$6.68

6

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$25.40

7

HOUSING, WATER PUMP

1S3-12421-00-00

$69.91

8

BOLT, FLANGE

95022-06025-00

$1.46

9

OIL SEAL

93101-12173-00

$11.31

10

SEAL, MECHANICAL

4C8-12438-00-00

$42.76

11

WASHER, PLATE (525)

90201-12541-00

$5.98

12

GASKET, HOUSING COVER 2

1S3-12428-00-00

$8.66

13

GASKET 256113960000

90430-06014-00

$7.23

14

PIN, DOWEL(1HX)

93603-16219-00

$5.10

15

GEAR, IMPELLER SHAFT

5VK-12459-00-00

$37.52

16

CIRCLIP(10Y)

99009-12400-00

$3.08

17

CLIP(MG5)

90467-14117-00

$6.68

18

JOINT 1

1S3-12469-00-00

$18.82

19

BOLT,SOCKET HEAD

91314-06020-00

$2.05

20

O-RING

93210-33006-00

$4.85

21

HOSE 2

1S3-12577-00-00

$12.46

22

HOSE CLAMP ASSY

90450-32015-00

$15.23

23

BOLT, FLANGE

95022-06050-00

$1.38

24

BOLT, FLANGE

95022-06110-00

$2.08

25

HOSE CLAMP ASSY

90450-32015-00

$15.23
