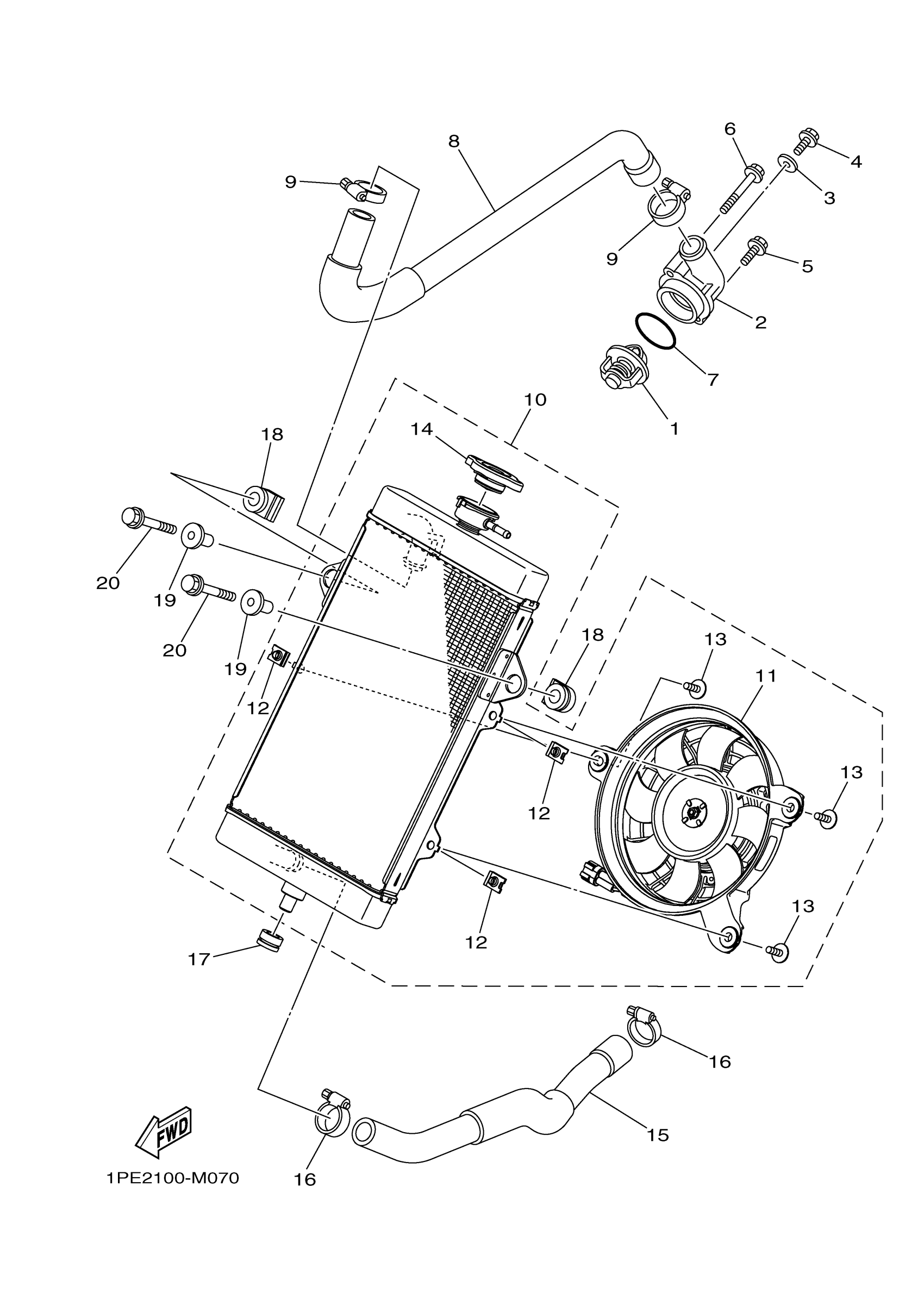

Yamaha YFM70RSCTW (RAPTOR 700R SE) DE34 2026 RADIATOR & HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

5VK-12410-01-00

$31.99

2

COVER, THERMOSTAT

1S3-12413-00-00

Unavailable

3

GASKET 256113960000

90430-06014-00

Unavailable

4

BOLT, FLANGE

95022-06010-00

$5.60

5

BOLT, FLANGE

95022-06020-00

$3.62

6

BOLT, FLANGE

95022-06045-00

$4.29

7

O-RING (132)

93210-41042-00

$7.49

8

HOSE 3

1PE-E2578-00-00

$34.99

9

CLIP

90467-26189-00

$7.49

10

RADIATOR ASSY

1PE-E2460-04-00

Unavailable

11

. BLOWER ASSY

1PE-E2405-02-00

Unavailable

12

PLATE

1PE-E2535-00-00

$3.85

13

BOLT, BLOWER HOLDING

1PE-E2675-00-00

$2.91

14

CAP, RADIATOR

1XD-E2462-00-00

$15.49

15

HOSE 4

1PE-E2579-00-00

$38.99

16

HOSE CLAMP ASSY

90450-32015-00

Unavailable

17

GROMMET (13X)

90480-18330-00

Unavailable

18

DAMPER, RADIATOR

1S3-12465-00-00

Unavailable

19

COLLAR

90387-06166-00

Unavailable

20

BOLT, FLANGE

95817-06030-00

Unavailable
