Description

Price

1

WHEEL,FRONT

1TD-F5180-11-00

$169.99

2

AT22X7-10 MS13 TL 2LS/B46

94107-10803-00

$175.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

GRAPHIC 1

BFK-F51G1-60-00

Unavailable

5

WHEEL,FRONT

1TD-F5180-11-00

$169.99

6

AT22X7-10 MS13 TL 2LS/B46

94107-10803-00

$175.99

7

VALVE, RIM

93900-00812-00

Unavailable

8

GRAPHIC 1

BFK-F51G1-60-00

Unavailable

9

HUB ASSY., 2

1PE-F510D-00-00

$74.99

10

BOLT, SERRATION

90114-10006-00

$5.60

11

SPACER, BEARING

5LP-25117-00-00

$17.49

12

BEARING

93306-00446-00

$43.99

13

. BEARING

93306-20231-00

Unavailable

14

OIL SEAL(1UY)

93105-26026-00

$12.49

15

OIL SEAL (7H5)

93102-22216-00

$11.49

16

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

17

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

18

COVER, PLATE

1S3-25127-01-00

Unavailable

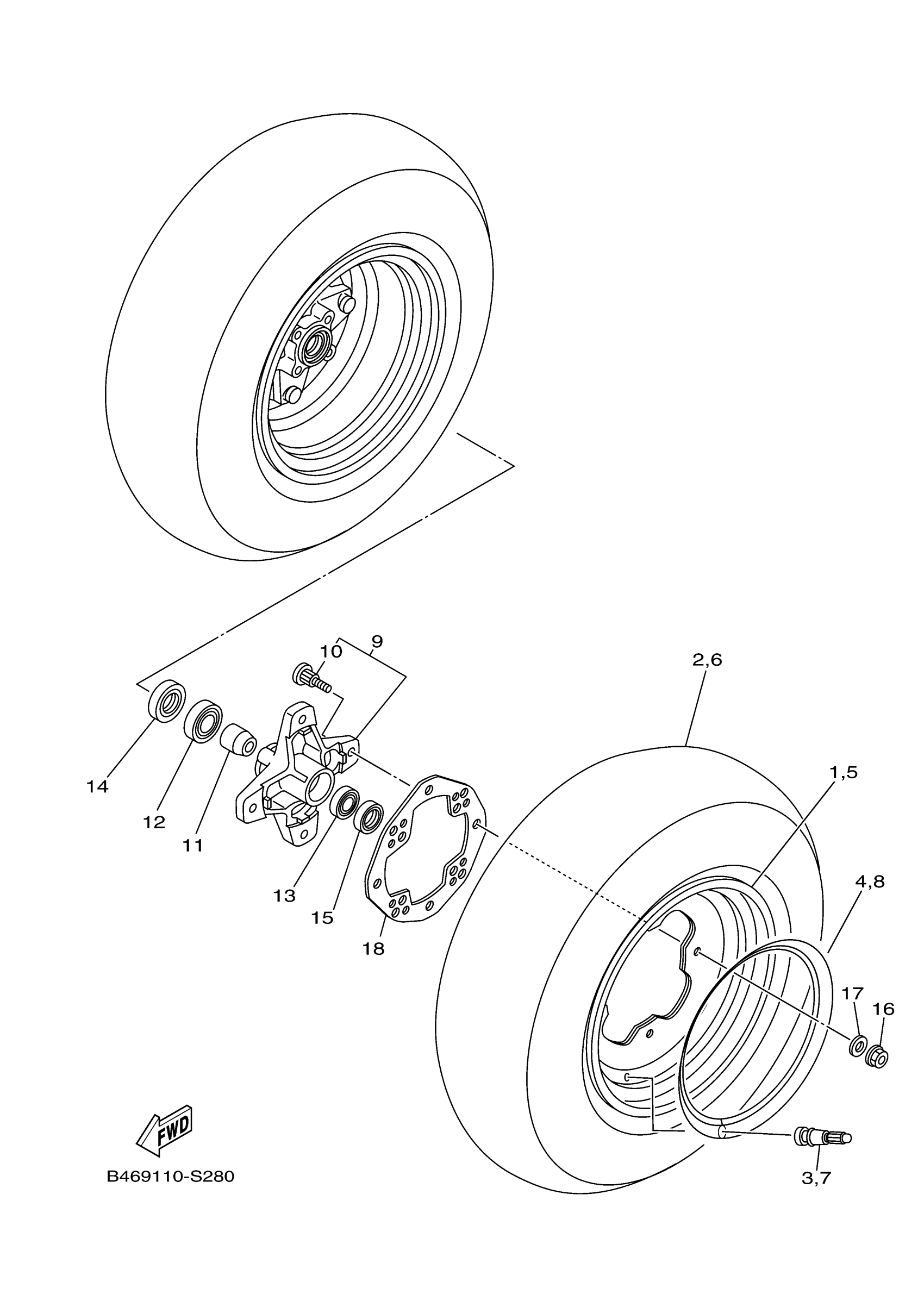

Yamaha YFM70RSCTW (RAPTOR 700R SE) DE34 2026 FRONT WHEEL Diagram

WHEEL,FRONT

AT22X7-10 MS13 TL 2LS/B46

VALVE, RIM

GRAPHIC 1

WHEEL,FRONT

AT22X7-10 MS13 TL 2LS/B46

VALVE, RIM

GRAPHIC 1

HUB ASSY., 2

BOLT, SERRATION

SPACER, BEARING

BEARING

. BEARING

OIL SEAL(1UY)

OIL SEAL (7H5)

NUT, FLANGE(3BM)

958-69527-00 WASHER, PLAIN

COVER, PLATE
