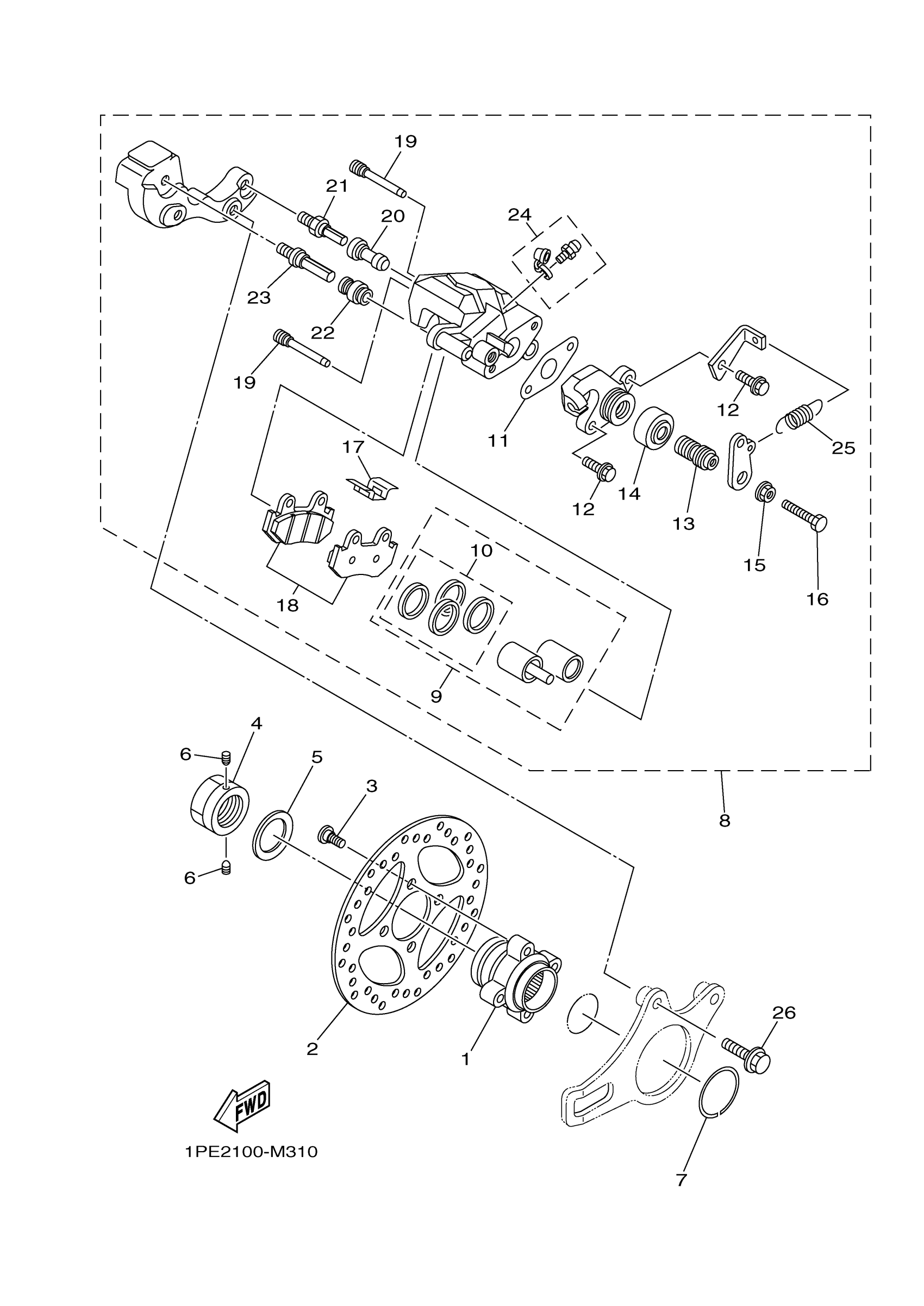

Yamaha YFM70RSCTL (RAPTOR 700R) DE31 2026 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET, DISC

1PE-F5712-00-00

$109.40

2

DISK, REAR BRAKE 2

1PE-F582W-00-00

$58.60

3

BOLT

90109-08077-00

$2.88

4

NUT

90179-36003-00

$42.44

5

WASHER, CONICAL SPRING

90208-37001-00

$9.46

6

BOLT, SET (8K2)

90113-06039-00

$6.97

7

CIRCLIP

1S3-25415-00-00

$5.75

8

CALIPER ASSY, REAR 2

5TG-2580W-21-00

$386.35

9

PISTON ASSY, CALIPER

5TG-W0057-10-00

$105.80

10

CALIPER SEAL KIT

5TG-W0047-00-00

$25.26

11

RUBBER, BUSHING

5TG-25975-00-00

$9.94

12

BOLT, FITTING

5UG-25833-00-00

$5.93

13

SHAFT L

5TG-25978-00-00

$56.48

14

BOOT

1UY-25974-51-00

$6.43

15

NUT

1UY-25973-51-00

$6.38

16

ADJUSTBOLT

5TG-25972-00-00

$7.05

17

SPRING, PAD

3LD-25934-01-00

$26.56

18

BRAKE PAD KIT 2

5TG-W0046-10-00

$50.99

19

PIN, PAD

5DH-25933-00-00

$17.38

20

BOOT 2

1UY-25937-51-00

$12.27

21

BOLT

3SP-25914-51-00

$3.92

22

BOOT, CALIPER

3JD-25917-00-00

$7.51

23

BOLT

3SP-25926-51-00

$11.47

24

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

25

SPRING, RETURN

5TG-25977-50-00

$6.43

26

BOLT, FLANGE

90105-10405-00

$4.71
