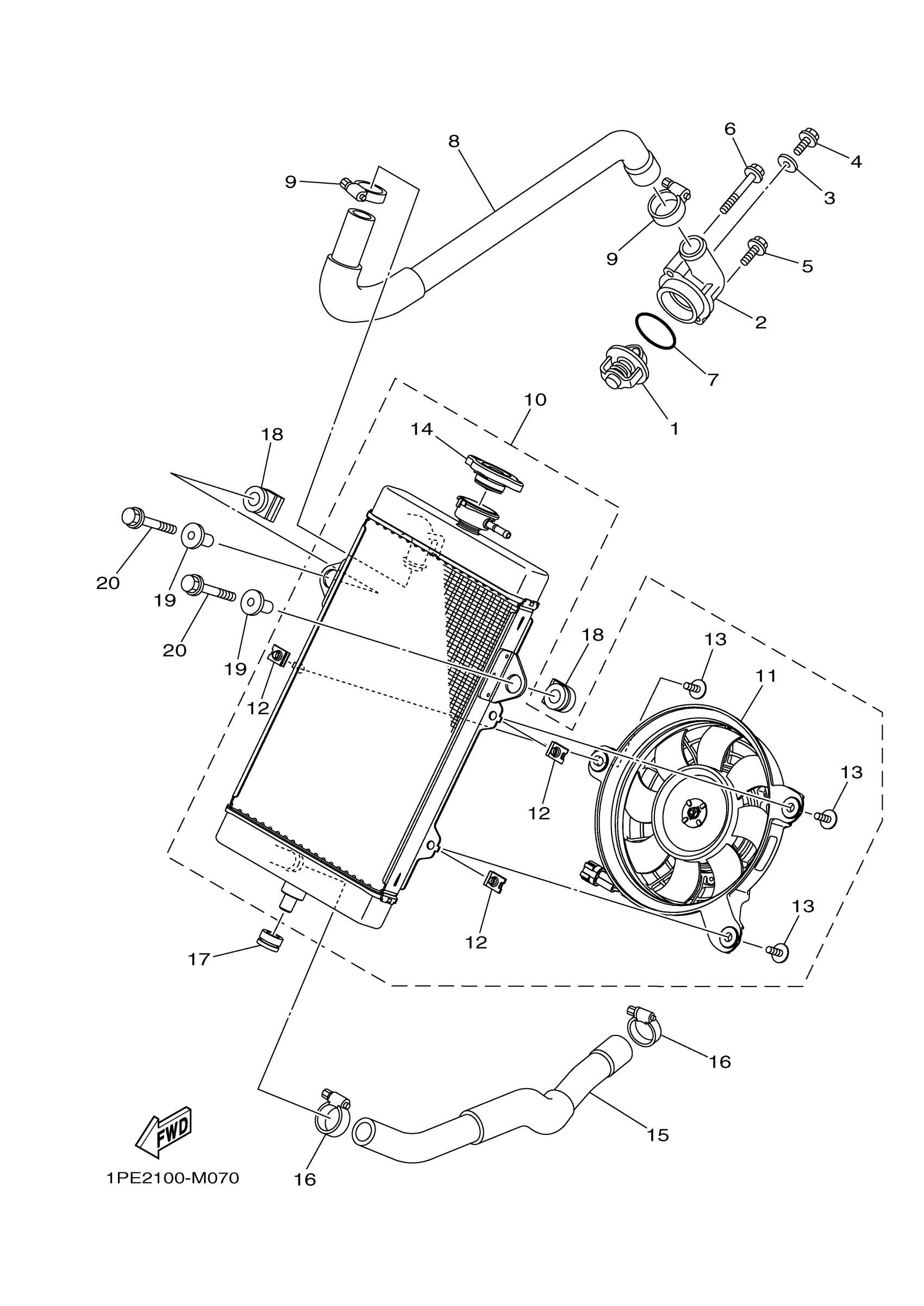

Yamaha YFM70RSCTL (RAPTOR 700R) DE31 2026 RADIATOR & HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

5VK-12410-01-00

$27.28

2

COVER, THERMOSTAT

1S3-12413-00-00

$41.97

3

GASKET 256113960000

90430-06014-00

$7.23

4

BOLT, FLANGE

95022-06010-00

$5.45

5

BOLT, FLANGE

95022-06020-00

$3.32

6

BOLT, FLANGE

95022-06045-00

$2.48

7

O-RING (132)

93210-41042-00

$5.72

8

HOSE 3

1PE-E2578-00-00

$28.89

9

CLIP

90467-26189-00

$5.86

10

RADIATOR ASSY

1PE-E2460-04-00

Unavailable

11

. BLOWER ASSY

1PE-E2405-02-00

Unavailable

12

PLATE

1PE-E2535-00-00

$3.09

13

BOLT, BLOWER HOLDING

1PE-E2675-00-00

$1.20

14

CAP, RADIATOR

1XD-E2462-00-00

Unavailable

15

HOSE 4

1PE-E2579-00-00

$32.39

16

HOSE CLAMP ASSY

90450-32015-00

$15.23

17

GROMMET (13X)

90480-18330-00

$2.46

18

DAMPER, RADIATOR

1S3-12465-00-00

$4.98

19

COLLAR

90387-06166-00

$10.20

20

BOLT, FLANGE

95817-06030-00

$3.91
