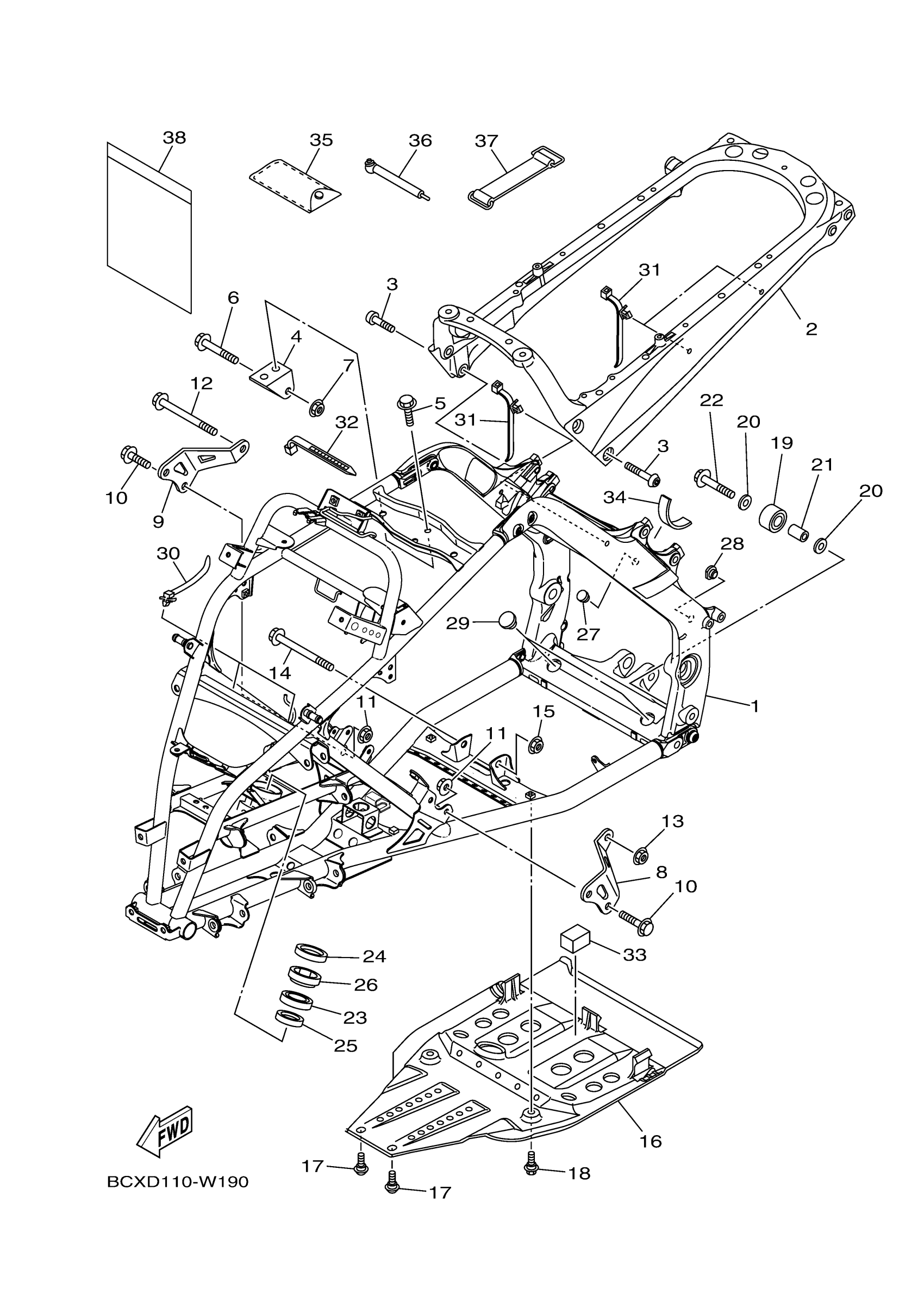

Yamaha YFM70RSCTL (RAPTOR 700R) DE31 2026 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

BMD-F1101-29-00

$1,578.99

2

REAR FRAME COMP.

2LS-F1190-08-00

$308.87

3

SCREW

90149-10079-00

$5.14

4

STAY, ENGINE 2

1S3-21315-10-00

$9.57

5

BOLT, FLANGE

90105-08142-00

$4.91

6

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

7

NUT, SELF-LOCKING

90185-10818-00

$1.11

8

STAY, ENGINE 3

1S3-21316-10-00

$14.25

9

STAY, ENGINE 3

1S3-21317-10-00

$15.83

10

BOLT, FLANGE

90105-08142-00

$4.91

11

NUT(4KM)

90179-08674-00

$5.69

12

BOLT, FLANGE

95812-10110-00

$5.86

13

NUT, SELF-LOCKING

90185-10818-00

$1.11

14

95812-10090

95812-10090-00

$3.49

15

NUT, SELF-LOCKING

90185-10818-00

$1.11

16

PROTECTOR, ENGINE

1PE-F1471-00-00

$40.38

17

BOLT

90109-06201-00

$5.62

18

BOLT

90109-06172-00

$2.71

19

TENSIONER

4D3-22178-00-00

$10.29

20

WASHER, PLATE

90201-08053-00

$5.63

21

BUSH, SOLID(38V)

90380-08136-00

$12.34

22

BOLT, FLANGE

95814-08045-00

$3.95

23

BEARING

93306-20352-00

$26.25

24

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

25

OIL SEAL (25X36X8-334)

93102-25099-00

$10.57

26

HOLDER, BEARING

2GU-23872-00-00

$22.43

27

PLUG

90338-24260-00

$4.08

28

PLUG(2AK)

90338-20183-00

$9.80

29

PLUG

90338-23004-00

$3.43

30

CLAMP

5B4-F1338-00-00

$2.92

31

CLAMP(4KJ)

90464-20213-00

$3.57

32

BAND, SWITCH CORD

25G-83936-01-00

$4.12

33

DAMPER, STOPPER

1S3-2140A-00-00

$6.38

34

DAMPER, LOCATING 1

4X4-24181-00-00

$4.77

35

TOOL KIT

1PE-F8100-01-00

$13.94

36

GAUGE, AIR

1NV-2811A-01-00

$49.11

37

BAND, BATTERY

116-82131-00-00

$26.19

38

POUCH

1P0-F8186-01-00

$2.58
