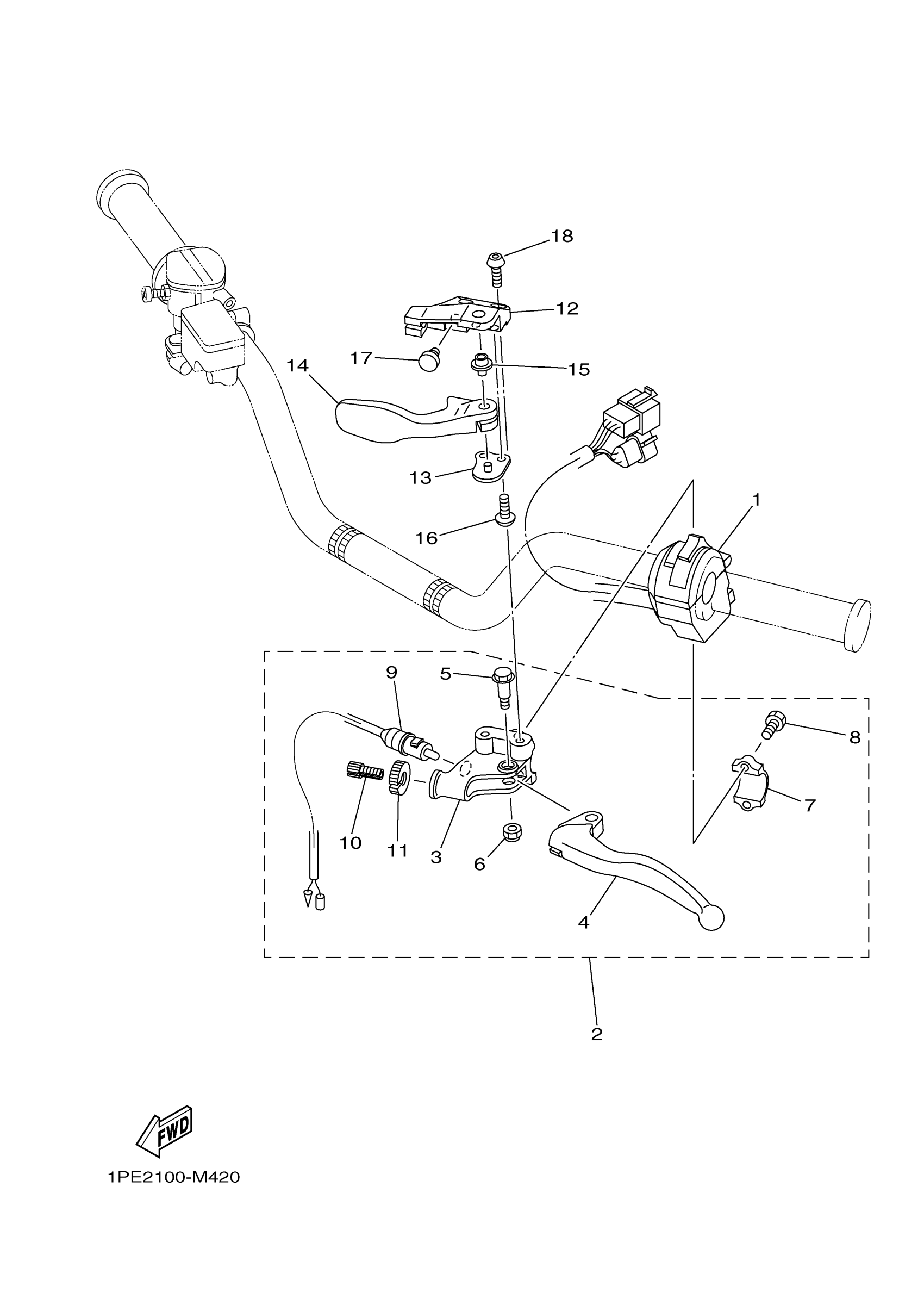

Yamaha YFM70RSCTG (RAPTOR 700R SE) DE32 2026 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

1S3-83973-12-00

$95.42

2

LEVER HOLDER ASSY

5YT-82910-12-00

$73.76

3

HOLDER, LEVER 1

5YT-82911-10-00

$34.10

4

LEVER 1

2HT-83912-01-00

$33.97

5

BOLT(1FG)

90109-06798-00

$6.26

6

NUT, SELF-LOCKING

95617-06100-00

$2.32

7

HOLDER, LEVER LOWER 1

5TG-82913-00-00

$8.32

8

BOLT(6A1)

97095-05016-00

$1.46

9

SWITCH

5KM-82917-00-00

$50.68

10

BOLT

90123-08002-00

$8.93

11

NUT

90179-08030-00

$3.78

12

BRACKET, LEVER

5TG-25727-01-00

$43.29

13

PLATE, GUIDE

5D3-25689-00-00

$6.71

14

LEVER, BRAKE

5TG-25726-01-00

$26.34

15

COLLAR, LEVER 2

5TG-83923-00-00

$11.66

16

BOLT, BUTTON HEAD

92012-06014-00

$6.18

17

PLUG

90338-07007-00

$2.83

18

BOLT, BUTTON HEAD

92012-06016-00

$6.23
