Description

Price

1

WHEEL,REAR

1TD-F5390-11-00

$265.99

2

AT 20 X 10-9 M976Y

94110-09801-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

GRAPHIC 2

BFK-F51G2-40-00

Unavailable

5

WHEEL,REAR

1TD-F5390-11-00

$265.99

6

AT 20 X 10-9 M976Y

94110-09801-00

Unavailable

7

VALVE, RIM

93900-00812-00

Unavailable

8

GRAPHIC 2

BFK-F51G2-40-00

Unavailable

9

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

10

BOLT, SERRATION

90114-10020-00

$5.60

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29

12

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

13

WASHER, PLATE

90201-16023-00

$8.49

14

NUT, CASTLE

90171-16002-00

$20.99

15

PIN, COTTER

90252-03001-00

$1.96

16

COLLAR, SPROCKET A

1PE-F5386-00-00

Unavailable

17

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

Unavailable

18

BOLT

90109-10013-00

Unavailable

19

NUT, SELF-LOCKING

90185-10818-00

Unavailable

20

AXLE, WHEEL

BFK-F5381-01-00

Unavailable

21

O-RING(2TY)

93210-36769-00

Unavailable

22

CHAIN (DID520VP2-T

94568-H6098-00

Unavailable

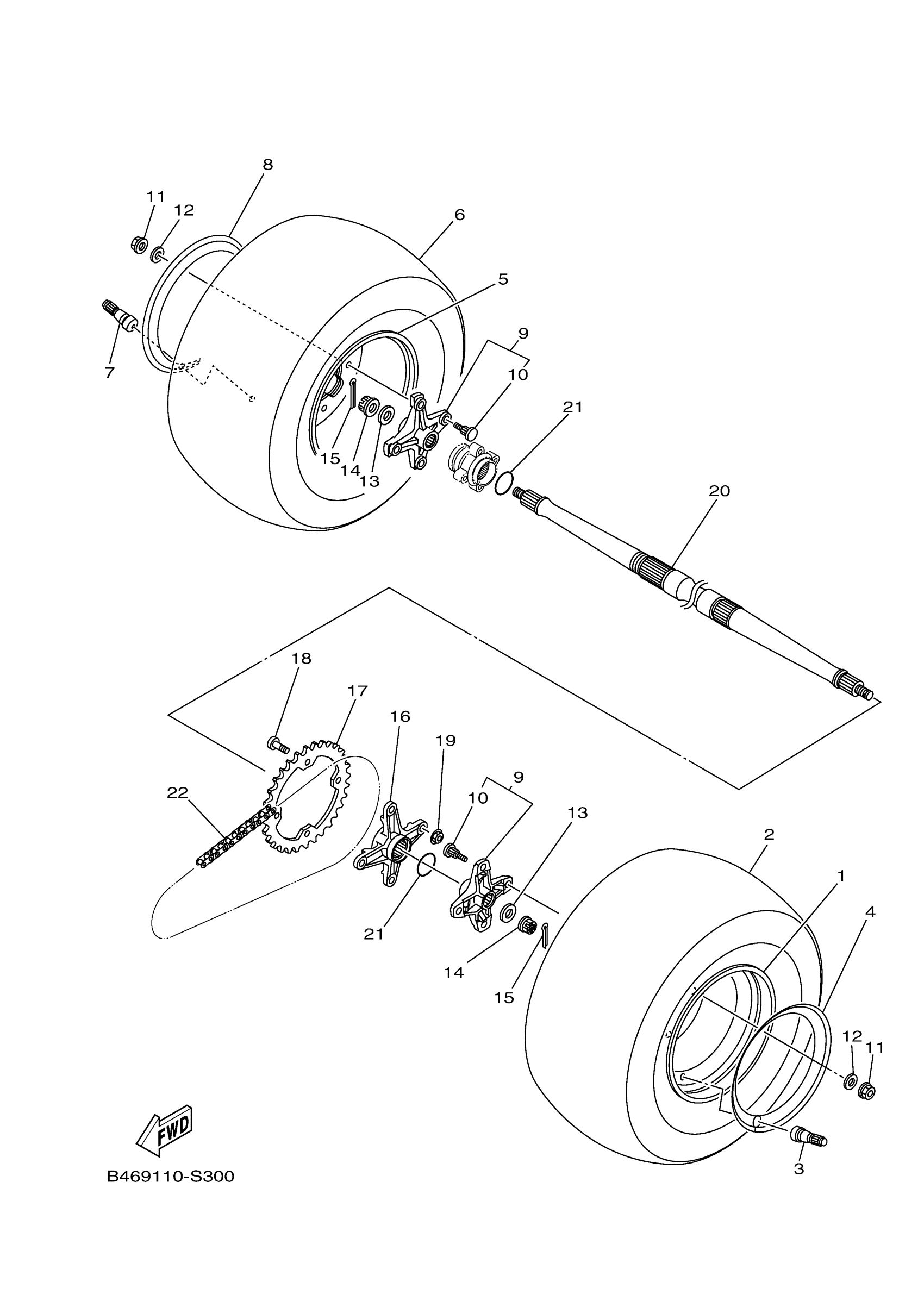

Yamaha YFM70RSCSR (RAPTOR 700R SE) BMDN 2025 REAR WHEEL Diagram

WHEEL,REAR

AT 20 X 10-9 M976Y

VALVE, RIM

GRAPHIC 2

WHEEL,REAR

AT 20 X 10-9 M976Y

VALVE, RIM

GRAPHIC 2

WHEEL SHAFT COLLAR ASSY.

BOLT, SERRATION

NUT, FLANGE(3BM)

958-69527-00 WASHER, PLAIN

WASHER, PLATE

NUT, CASTLE

PIN, COTTER

COLLAR, SPROCKET A

SPROCKET, DRIVEN (38T)

BOLT

NUT, SELF-LOCKING

AXLE, WHEEL

O-RING(2TY)

CHAIN (DID520VP2-T
