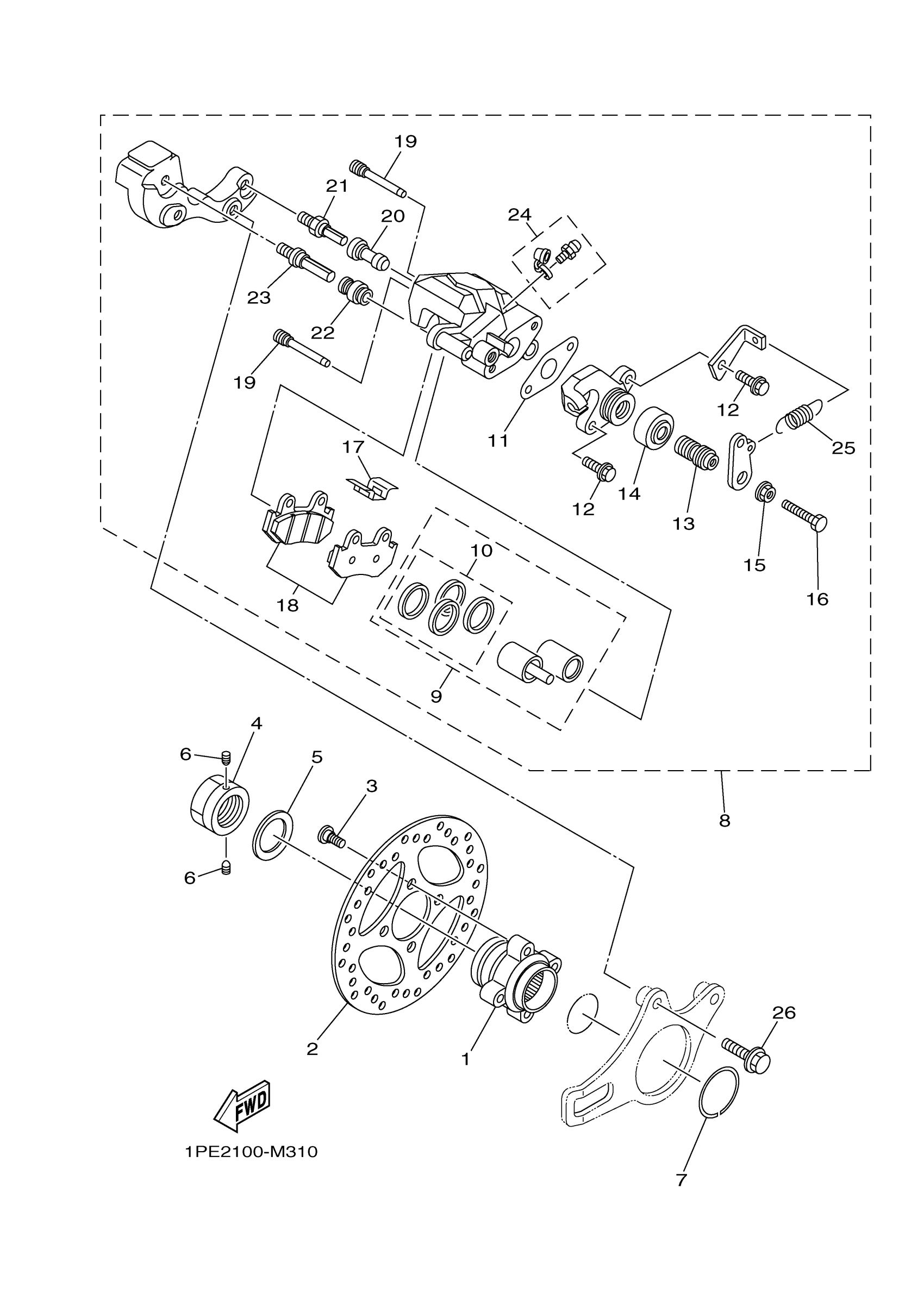

Yamaha YFM70RSCSR (RAPTOR 700R SE) BMDN 2025 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET, DISC

1PE-F5712-00-00

$119.99

2

DISK, REAR BRAKE 2

1PE-F582W-00-00

Unavailable

3

BOLT

90109-08077-00

$8.49

4

NUT

90179-36003-00

$49.99

5

WASHER, CONICAL SPRING

90208-37001-00

$12.49

6

BOLT, SET (8K2)

90113-06039-00

$9.49

7

CIRCLIP

1S3-25415-00-00

$6.99

8

CALIPER ASSY, REAR 2

5TG-2580W-21-00

$456.99

9

PISTON ASSY, CALIPER

5TG-W0057-10-00

$111.99

10

CALIPER SEAL KIT

5TG-W0047-00-00

$29.99

11

RUBBER, BUSHING

5TG-25975-00-00

$11.99

12

BOLT, FITTING

5UG-25833-00-00

$6.99

13

SHAFT L

5TG-25978-00-00

Unavailable

14

BOOT

1UY-25974-51-00

$7.99

15

NUT

1UY-25973-51-00

$6.99

16

ADJUSTBOLT

5TG-25972-00-00

Unavailable

17

SPRING, PAD

3LD-25934-01-00

Unavailable

18

BRAKE PAD KIT 2

5TG-W0046-10-00

Unavailable

19

PIN, PAD

5DH-25933-00-00

Unavailable

20

BOOT 2

1UY-25937-51-00

Unavailable

21

BOLT

3SP-25914-51-00

Unavailable

22

BOOT, CALIPER

3JD-25917-00-00

Unavailable

23

BOLT

3SP-25926-51-00

Unavailable

24

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

25

SPRING, RETURN

5TG-25977-50-00

Unavailable

26

BOLT, FLANGE

90105-10405-00

Unavailable
