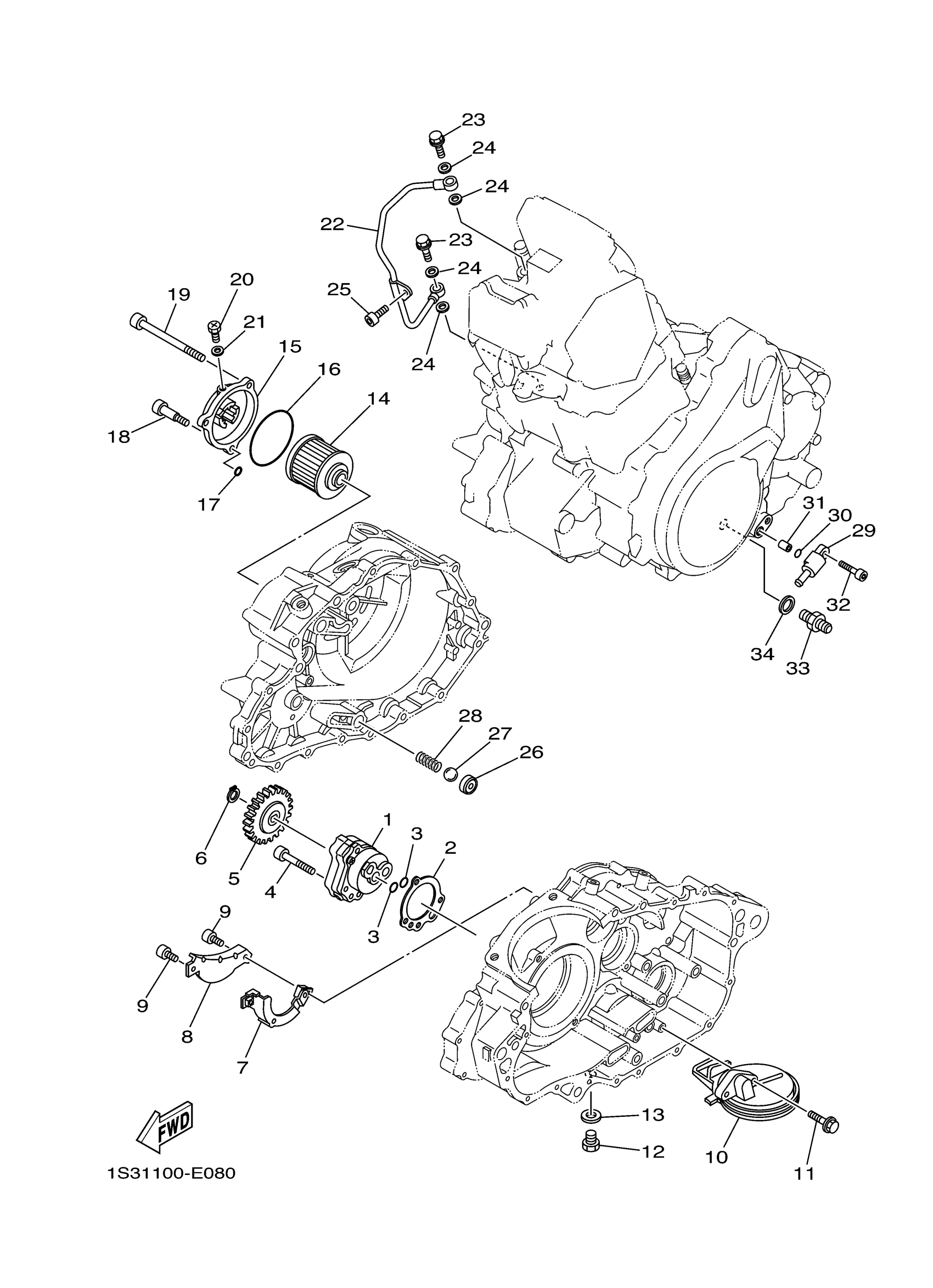

Yamaha YFM70RSCSR (RAPTOR 700R SE) BMDN 2025 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5LP-13300-00-00

$219.99

2

GASKET, PUMP COVER

5LP-13329-00-00

$6.99

3

O-RING (2H7)

93210-13361-00

$5.60

4

BOLT(J17)

91312-06035-00

$3.28

5

GEAR, PUMP DRIVEN

3AJ-13325-00-00

$27.99

6

CIRCLIP(24H)

99009-11400-00

$8.49

7

COVER, PUMP 2

1S3-13356-00-00

$22.99

8

COVER, PUMP GEAR

1S3-13327-00-00

$7.99

9

BOLT

91312-05008-00

$7.49

10

STRAINER HOUSING ASSY

1S3-13410-00-00

Unavailable

11

BOLT, FLANGE

95022-06020-00

$3.62

12

PLUG, STRAIGHT(2E9)

90340-14029-00

$4.29

13

GASKET

214-11198-01-00

$3.17

14

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

$14.49

15

COVER, OIL ELEMENT

1S3-13447-00-00

$45.99

16

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

17

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

18

BOLT

90109-06169-00

Unavailable

19

BOLT

91312-06095-00

Unavailable

20

SCREW

90149-05018-00

Unavailable

21

GASKET

90430-05126-00

Unavailable

22

PIPE, DELIVERY 2

1S3-13171-00-00

Unavailable

23

BOLT, UNION

90401-10024-00

Unavailable

24

GASKET

90430-10188-00

Unavailable

25

BOLT,SOCKET

91317-06012-00

Unavailable

26

SEAT, CHECK BALL

583-13113-00-00

Unavailable

27

BALL

93503-08007-00

Unavailable

28

SPRING, COMPRESSION(1VJ)

90501-043E0-00

Unavailable

29

PIPE, OIL 1

1S3-13416-00-00

Unavailable

30

O-RING (371)

93210-10197-00

Unavailable

31

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

32

BOLT, FLANGE

95022-06025-00

Unavailable

33

JOINT

1S3-13132-00-00

Unavailable

34

GASKET 256131670000

90430-14043-00

Unavailable
