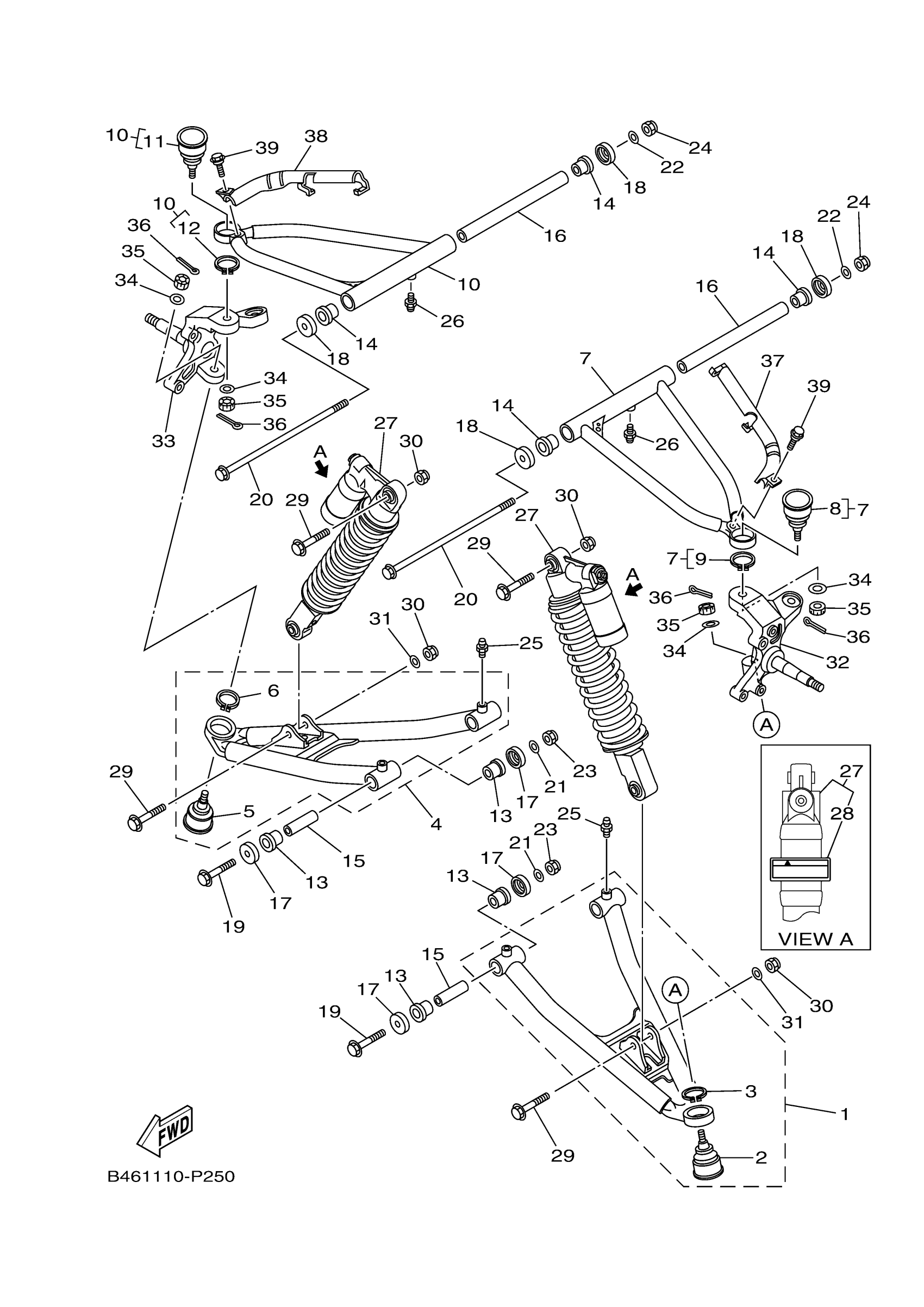

Yamaha YFM70RSCSR (RAPTOR 700R SE) BMDN 2025 FRONT SUSPENSION & WHEEL Diagram
#
Description
Price
1
FRONT LOWER ARM CO
1PE-F3570-60-00
Unavailable
10
FRONT UPPER ARM CO
2LS-F3550-00-00
Unavailable
16
COLLAR(3GG)
90387-100Y6-00
Unavailable
17
COVER, THRUST 1
1UY-23517-01-00
Unavailable
18
COVER, THRUST 1
1UY-23517-01-00
Unavailable
19
BOLT, FLANGE
90105-10135-00
Unavailable
20
BOLT, WASHER BASED(3GG)
90105-10651-00
Unavailable
21
WASHER, PLATE
90201-10037-00
Unavailable
22
WASHER, PLATE
90201-10037-00
Unavailable
23
NUT, SELF-LOCKING
90185-10817-00
Unavailable
24
NUT, SELF-LOCKING
90185-10817-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
NIPPLE, GREASE
93700-06M03-00
Unavailable
27
SHOCK ABSORBER ASSY 2
B46-F3390-91-00
Unavailable
28
LABEL, WARNING
BB5-F2259-00-00
Unavailable
29
BOLT, FLANGE
90105-10131-00
Unavailable
30
NUT, SELF-LOCKING
90185-10817-00
Unavailable
31
WASHER, PLATE
90201-10035-00
Unavailable
32
STEERING KNUCKLE ASSY (LEFT)
1S3-23501-01-00
Unavailable
33
STEERING KNUCKLE ASSY (RIGHT)
1S3-23502-01-00
Unavailable
34
WASHER (25G)
90209-10229-00
Unavailable
35
NUT, CASTLE
90171-10001-00
Unavailable
36
PIN, COTTER
91490-20025-00
Unavailable
37
HOLDER, BRAKE HOSE
2LS-F5875-00-00
Unavailable
38
HOLDER, BRAKE HOSE
2LS-F5876-00-00
Unavailable
39
BOLT
90109-06264-00
Unavailable
