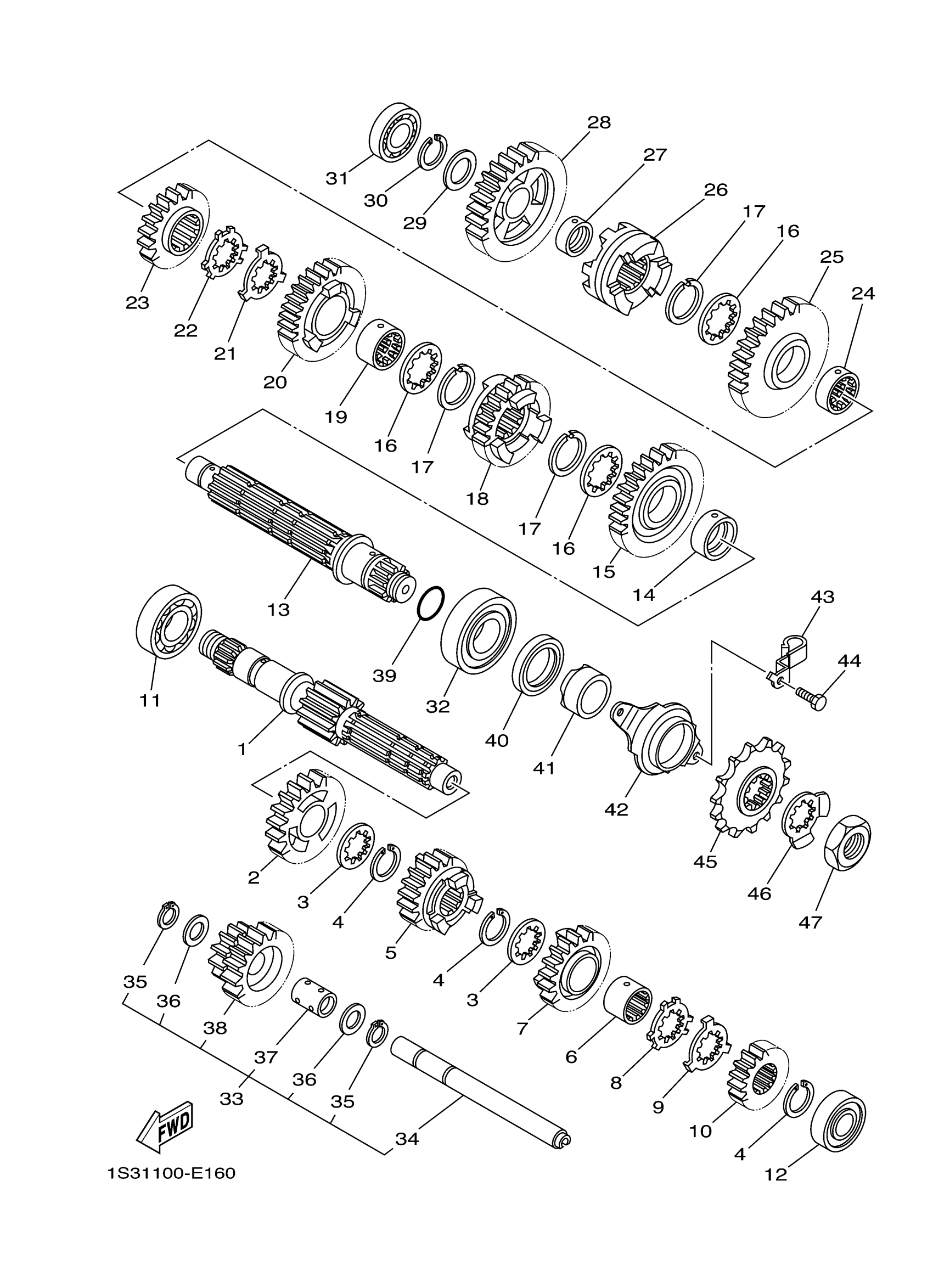

Yamaha YFM70RSCSL (RAPTOR 700R) BMDM 2025 TRANSMISSION Diagram
#
16
WASHER
90209-26008-00
Unavailable
17
CIRCLIP (2H7)
93440-28062-00
Unavailable
18
GEAR, 4TH WHEEL
1S3-17241-00-00
Unavailable
19
COLLAR
90387-26005-00
Unavailable
20
GEAR, 3RD WHEEL (2
1PE-17231-00-00
Unavailable
21
WASHER, CLAW
90214-26002-00
Unavailable
22
WASHER, CLAW
90214-26003-00
Unavailable
23
GEAR, 5TH WHEEL
1S3-17251-00-00
Unavailable
24
COLLAR
90387-26004-00
Unavailable
25
GEAR, 1ST WHEEL
1S3-17211-00-00
Unavailable
26
CLUTCH, DOG
1S3-17285-00-00
Unavailable
27
COLLAR
90387-20021-00
Unavailable
28
GEAR, REVERSE WHEEL 2
1S3-17253-00-00
Unavailable
29
WASHER PLATE 328171160000
90201-20276-00
Unavailable
30
CIRCLIP(1AR)
99009-20400-00
Unavailable
31
BEARING (7K2)
93306-00423-00
Unavailable
32
BEARING
93306-27803-00
Unavailable
33
COUNTER AXLE ASSY
1S3-17430-00-00
Unavailable
34
AXLE, IDLE
1S3-17432-00-00
Unavailable
35
CIRCLIP
93440-15012-00
Unavailable
36
WASHER (566)
90201-15701-00
Unavailable
37
COLLAR(4KB)
90387-1504G-00
Unavailable
38
GEAR, REVERSE WHEEL 1
1S3-17243-00-00
Unavailable
39
O-RING
93210-25001-00
Unavailable
40
OIL SEAL(1UY)
93102-35393-00
Unavailable
41
COLLAR
90387-28009-00
Unavailable
42
PLATE, COVER
1S3-17471-00-00
Unavailable
43
CLAMP
90461-10011-00
Unavailable
44
BOLT
97012-06014-00
Unavailable
45
SPROCKET, DRIVE (14T)
9383G-14231-00
Unavailable
46
WASHER, LOCK
90215-25003-00
Unavailable
47
NUT
90179-22011-00
Unavailable
