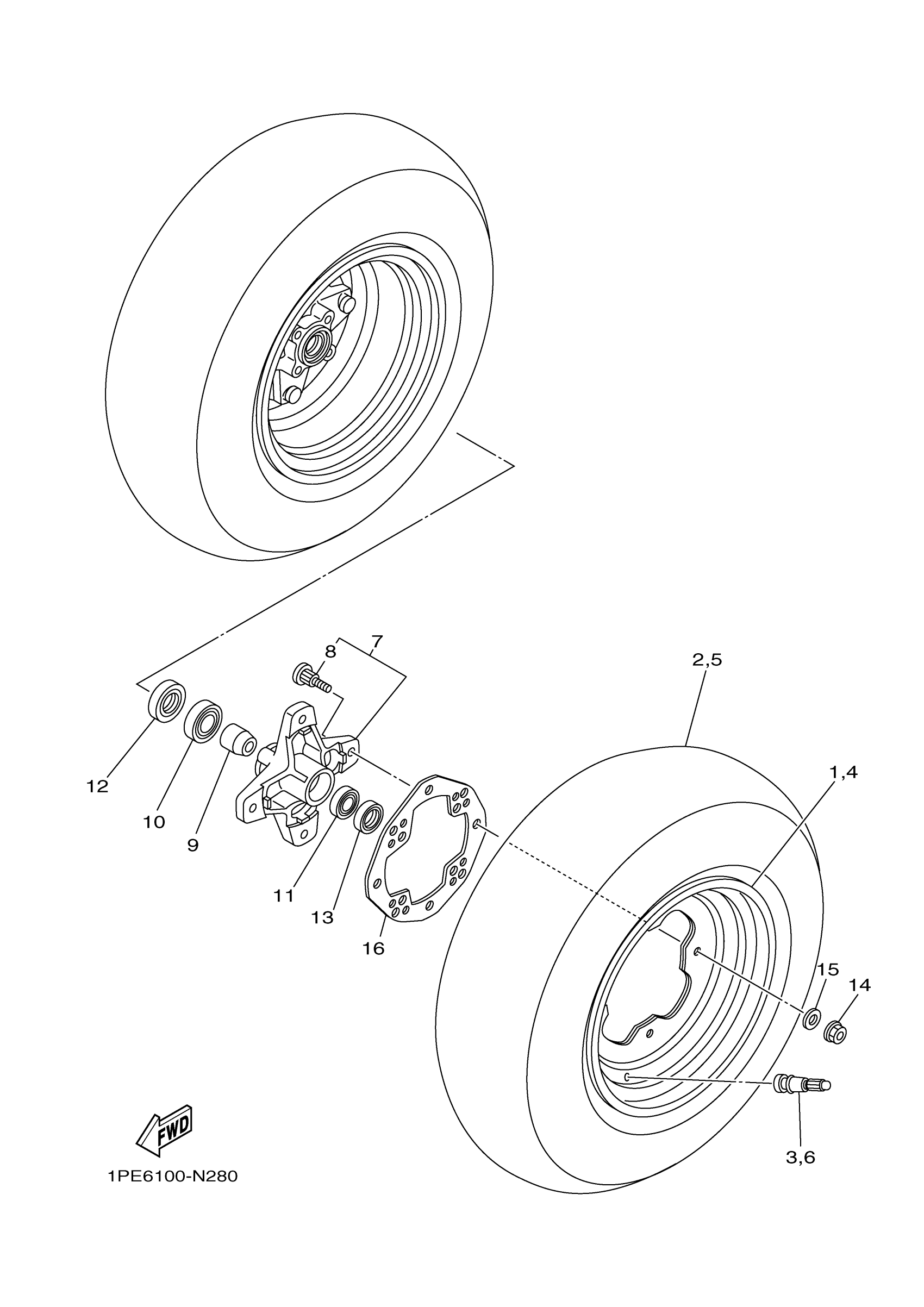

Yamaha YFM70RSCSL (RAPTOR 700R) BMDM 2025 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,FRONT

1TD-F5180-11-00

$148.82

2

AT22X7-10 MS13 TL 2LS/B46

94107-10803-00

$166.09

3

VALVE, RIM

93900-00812-00

Unavailable

4

WHEEL,FRONT

1TD-F5180-11-00

$148.82

5

AT22X7-10 MS13 TL 2LS/B46

94107-10803-00

$166.09

6

VALVE, RIM

93900-00812-00

Unavailable

7

HUB ASSY., 2

1PE-F510D-00-00

$60.01

8

BOLT, SERRATION

90114-10006-00

$4.81

9

SPACER, BEARING

5LP-25117-00-00

$14.07

10

BEARING

93306-00446-00

$34.51

11

. BEARING

93306-20231-00

$18.41

12

OIL SEAL(1UY)

93105-26026-00

$9.99

13

OIL SEAL (7H5)

93102-22216-00

$9.25

14

NUT, FLANGE(3BM)

95704-10500-00

$1.68

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

16

COVER, PLATE

1S3-25127-01-00

$6.68
