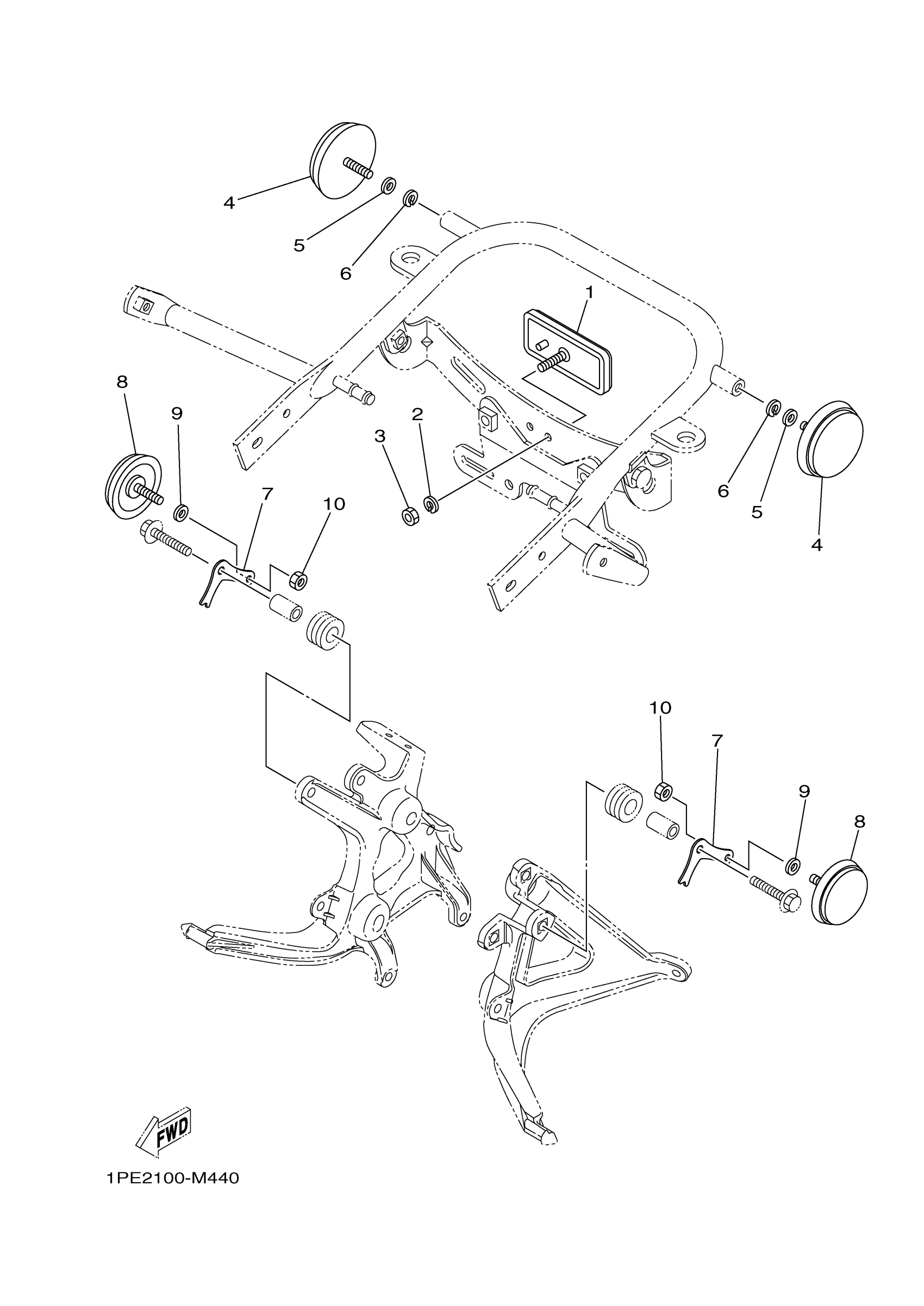

Yamaha YFM70RSCSG (RAPTOR 700R SE) BMDK 2025 ELECTRICAL 2 Diagram

#

Description

Price

1

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

2

. WASHER, PLAIN

92990-05200-00

$4.29

3

NUT, HEXAGON (663)

95380-05600-00

$6.08

4

REFLECTOR, REAR 1

449-85131-02-00

$24.04

5

. WASHER, PLAIN

92990-05200-00

$4.29

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

BRACKET, REFLECTOR

2LS-H5112-00-00

$26.06

8

REFLECTOR, FRONT 1

2EK-85111-00-00

$21.86

9

. WASHER, PLAIN

92990-05200-00

$4.29

10

NUT, HEXAGON (663)

95380-05600-00

$6.08
