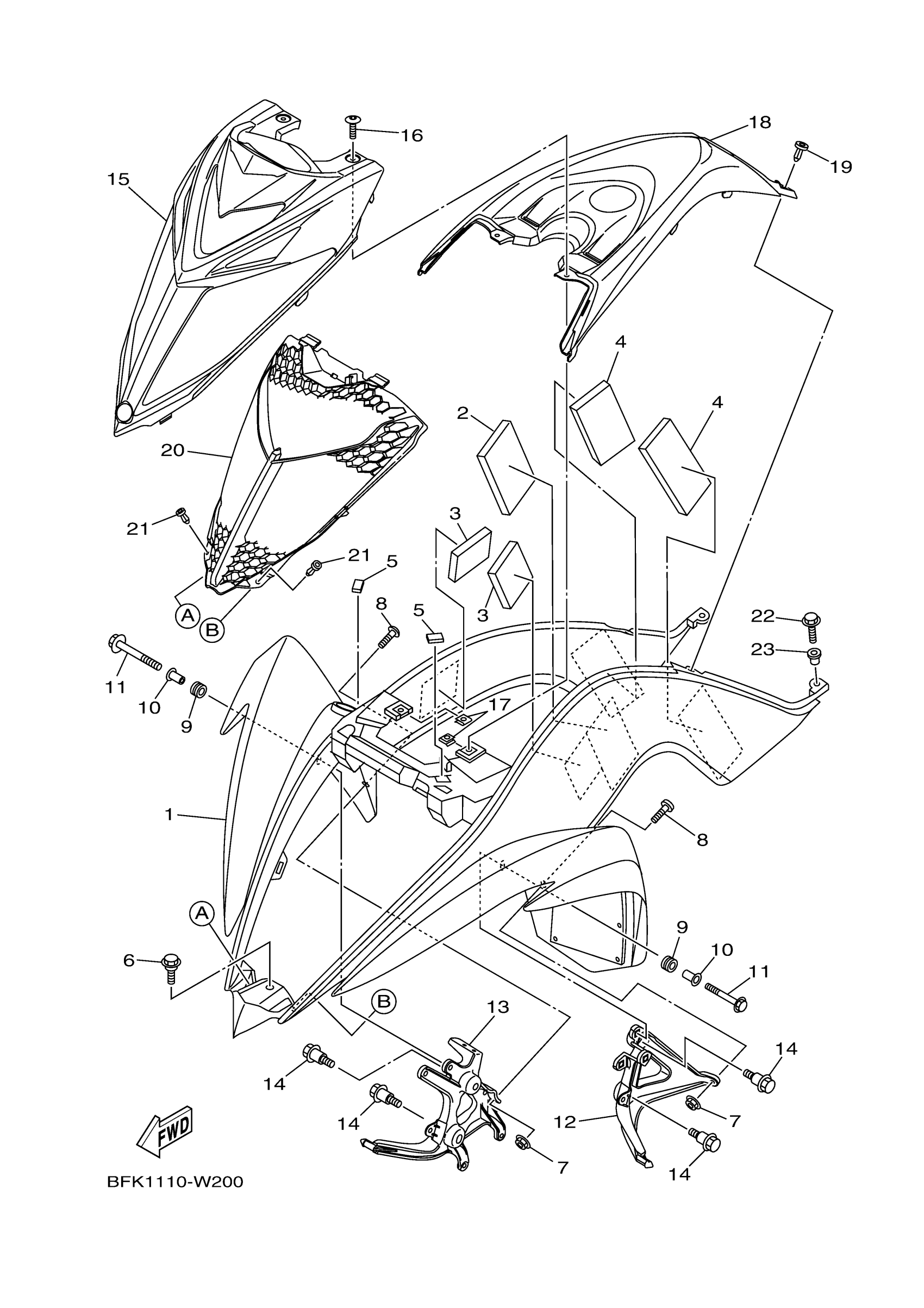

Yamaha YFM70RSBTS (RAPTOR 700) DE33 2026 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

2LS-F1500-01-00

Unavailable

2

DAMPER 1

29N-14425-00-00

$6.72

3

DAMPER 1

1S3-21541-00-00

$6.11

4

DAMPER, LOCATING 3

3Y0-24183-00-00

$20.32

5

DAMPER 1

3B4-21541-00-00

$2.45

6

BOLT

90109-06172-00

$2.71

7

NUT, U FLANGE

95604-06200-00

$2.35

8

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$4.78

9

GROMMET 839774310000

90480-14023-00

$4.74

10

COLLAR

90387-06136-00

$5.68

11

BLOT, FLANGE DEEP RECESS

95D32-06025-00

$0.83

12

STAY,FENDER 1

1PE-F1513-01-00

Unavailable

13

STAY,FENDER 2

1PE-F1514-01-00

$14.40

14

BOLT

90109-06214-00

$5.72

15

PANEL, FRONT

1PE-F3391-11-00

$45.85

16

BOLT,HEX SKT HEAD

90111-06814-00

$1.55

17

NUT, SPRING(4ES)

90183-06069-00

$5.93

18

COVER, TOP

1PE-F171A-11-00

$31.75

19

RIVET

90269-06002-00

$6.17

20

COVER, RADIATOR

1PE-E2467-00-00

$15.51

21

RIVET

90269-06002-00

$6.17

22

BOLT, FLANGE

90105-06084-00

$3.92

23

COLLAR

90387-06146-00

$6.17
