Description

Price

1

GEAR, PRIMARY DRIVE

1S3-16111-00-00

$114.55

2

KEY, STRAIGHT

90282-07003-00

$9.75

3

WASHER, LOCK

90215-20006-00

$5.62

4

NUT (4X7)

90170-20274-00

$13.86

5

PRIMARY DRIVEN GEAR COMP.

BFK-16150-00-00

$462.98

6

PLATE, THRUST 1

2JN-16154-00-00

$18.14

7

BOSS, CLUTCH

1S3-16371-10-00

$133.88

8

PLATE, SEAT

5JG-16384-00-00

$36.00

9

SPRING, CLUTCH BOSS

5JG-16383-00-00

$36.31

10

PLATE, FRICTION 2

5TG-16331-00-00

$14.25

11

PLATE, CLUTCH 2

4X7-16325-10-00

$15.32

12

PLATE, FRICTION

5TA-16321-00-00

$22.96

13

PLATE, PRESSURE 1

1S3-16351-00-00

$66.52

14

BEARING(2JN)

93306-00315-00

$27.16

15

SPRING, COMPRESSION(3GM)

90501-230E4-00

$8.31

16

SCREW, WITH WASHER

90159-06029-00

$7.51

17

WASHER, CONICAL SPRING

90208-20001-00

$14.64

18

NUT

90179-20022-00

Unavailable

19

ROD, PUSH 1

4XV-16356-01-00

$49.71

20

PUSH LEVER ASSY

3LD-16340-01-00

$19.65

21

SPRING, TORSION

90508-18018-00

$4.06

22

AXLE, PUSH LEVER

5EB-16382-00-00

$72.85

23

.. WASHER, PLATE

92990-08600-00

$2.36

24

CIRCLIP

99080-07600-00

$2.89

25

BEARING

93317-11096-00

$19.97

26

OIL SEAL (3X3)

93102-15212-00

$7.34

27

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$31.64

28

WASHER, PLATE (2W5)

90201-10614-00

$6.68

29

CIRCLIP(10W)

99009-10400-00

$3.91

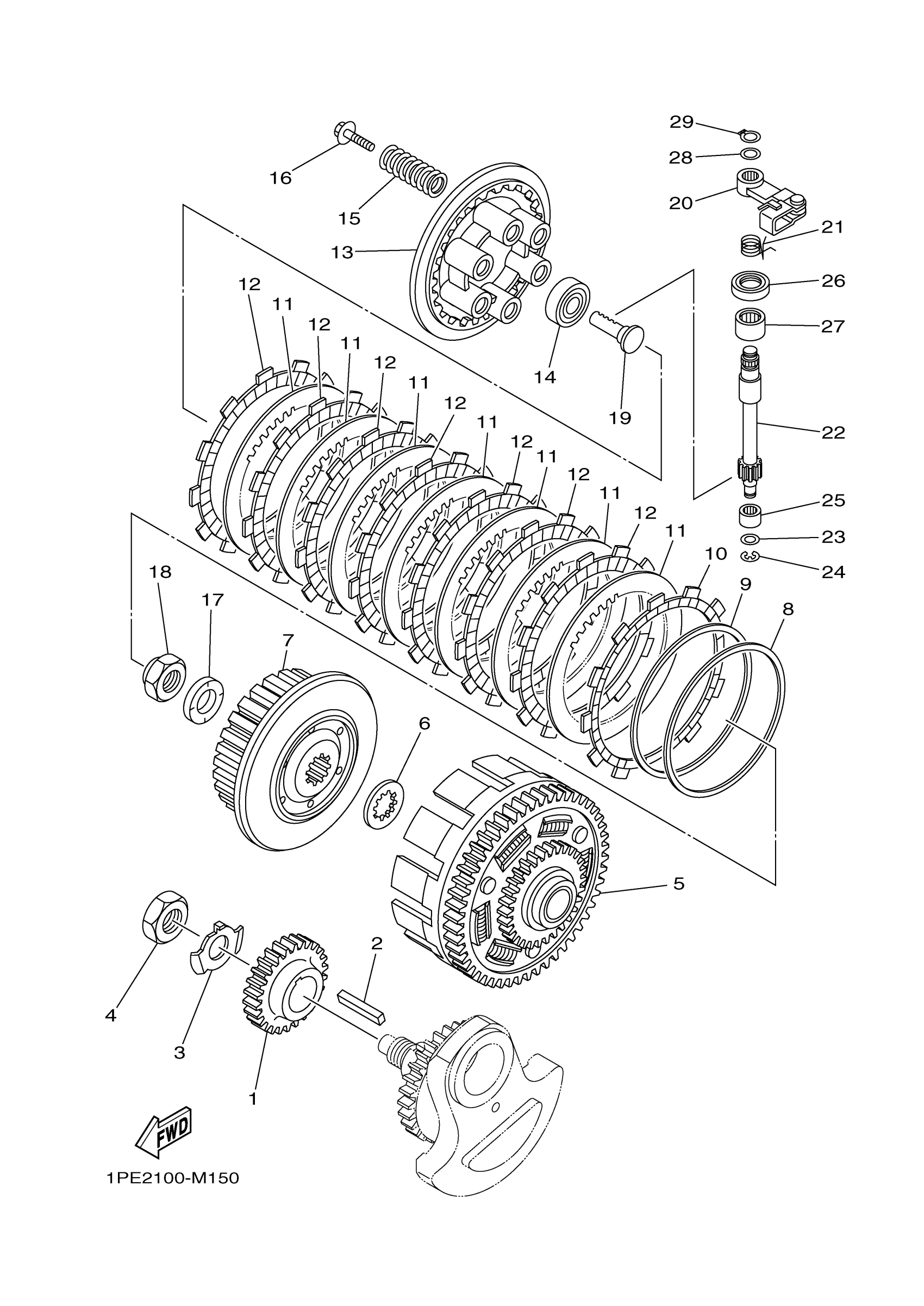

Yamaha YFM70RSBTS (RAPTOR 700) DE33 2026 CLUTCH Diagram
