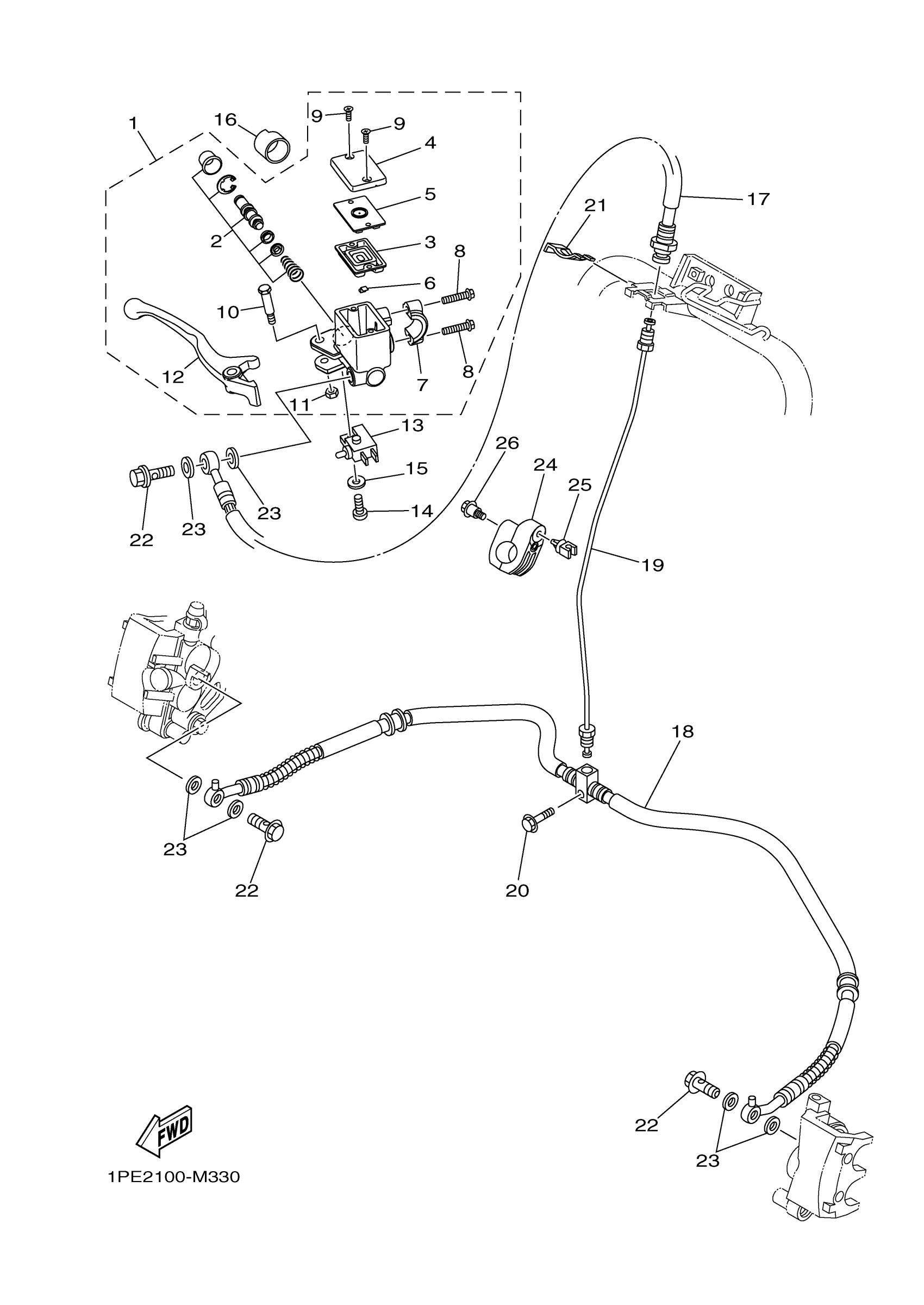

Yamaha YFM70RSBSS (RAPTOR 700) BMDL 2025 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER AS

1PE-2583T-00-00

$170.99

2

CYLINDER KIT, MAST

B16-F5807-00-00

Unavailable

3

. DIAPHRAGM, RESERVOIR

1HP-25854-00-00

Unavailable

4

CAP, RESERVOIR

B16-F5852-00-00

$7.49

5

PLATE, DIAPHRAGM

1HP-2585B-00-00

$6.99

6

SEPARATOR

1HP-25889-00-00

$2.24

7

BRACKET, MASTER CY

B16-F5867-00-00

Unavailable

8

BOLT

B16-F6332-00-00

$4.77

9

SCREW, FLAT HEAD

98780-04012-00

$2.87

10

BOLT, LEVER

B16-F589F-10-00

$4.24

11

NUT, FLANGE

95702-06500-00

$2.39

12

LEVER 2

1PE-83922-00-00

$56.99

13

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

14

SCREW, PAN HEAD

98511-04012-00

Unavailable

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

COLLAR

1UY-26259-00-00

Unavailable

17

HOSE, BRAKE 1

1PE-F5872-01-00

Unavailable

18

HOSE, BRAKE 2

5TG-25873-21-00

Unavailable

19

PIPE, BRAKE

1PE-F5871-00-00

Unavailable

20

BLOT, FLANGE DEEP RECESS

95D32-06025-00

Unavailable

21

CIRCLIP

2GU-25866-00-00

Unavailable

22

BOLT, UNION

90401-10015-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable

24

HOLDER

1AS-25522-01-00

Unavailable

25

CLAMP 1

5KM-81677-00-00

Unavailable

26

BOLT

90109-06241-00

Unavailable
