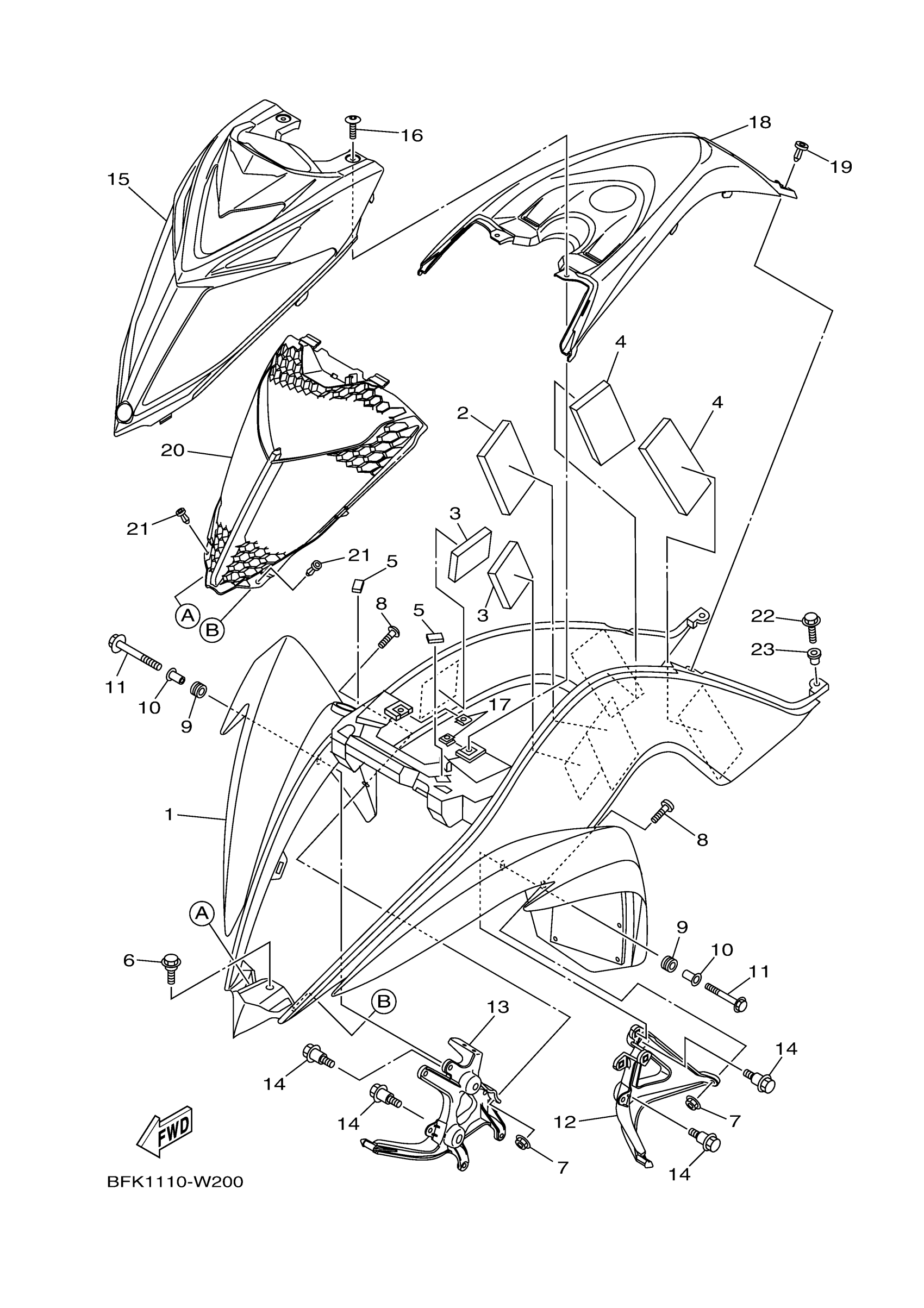

Yamaha YFM70RSBNS (RAPTOR 700) BCXL 2022 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

2LS-F1500-01-00

Unavailable

2

DAMPER 1

29N-14425-00-00

$7.99

3

DAMPER 1

1S3-21541-00-00

$7.99

4

DAMPER, LOCATING 3

3Y0-24183-00-00

$23.99

5

DAMPER 1

3B4-21541-00-00

$4.21

6

BOLT

90109-06172-00

$7.49

7

NUT, U FLANGE

95604-06200-00

$8.49

8

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

9

GROMMET 839774310000

90480-14023-00

$7.49

10

COLLAR

90387-06136-00

$7.49

11

BLOT, FLANGE DEEP RECESS

95D32-06025-00

$1.07

12

STAY,FENDER 1

1PE-F1513-01-00

$14.49

13

STAY,FENDER 2

1PE-F1514-01-00

$16.49

14

BOLT

90109-06214-00

$7.49

15

PANEL, FRONT

1PE-F3391-A0-00

$55.99

16

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

17

NUT, SPRING(4ES)

90183-06069-00

Unavailable

18

COVER, TOP

1PE-F171A-A0-00

Unavailable

19

RIVET

90269-06002-00

Unavailable

20

COVER, RADIATOR

1PE-E2467-00-00

Unavailable

21

RIVET

90269-06002-00

Unavailable

22

BOLT, FLANGE

90105-06084-00

Unavailable

23

COLLAR

90387-06146-00

Unavailable
