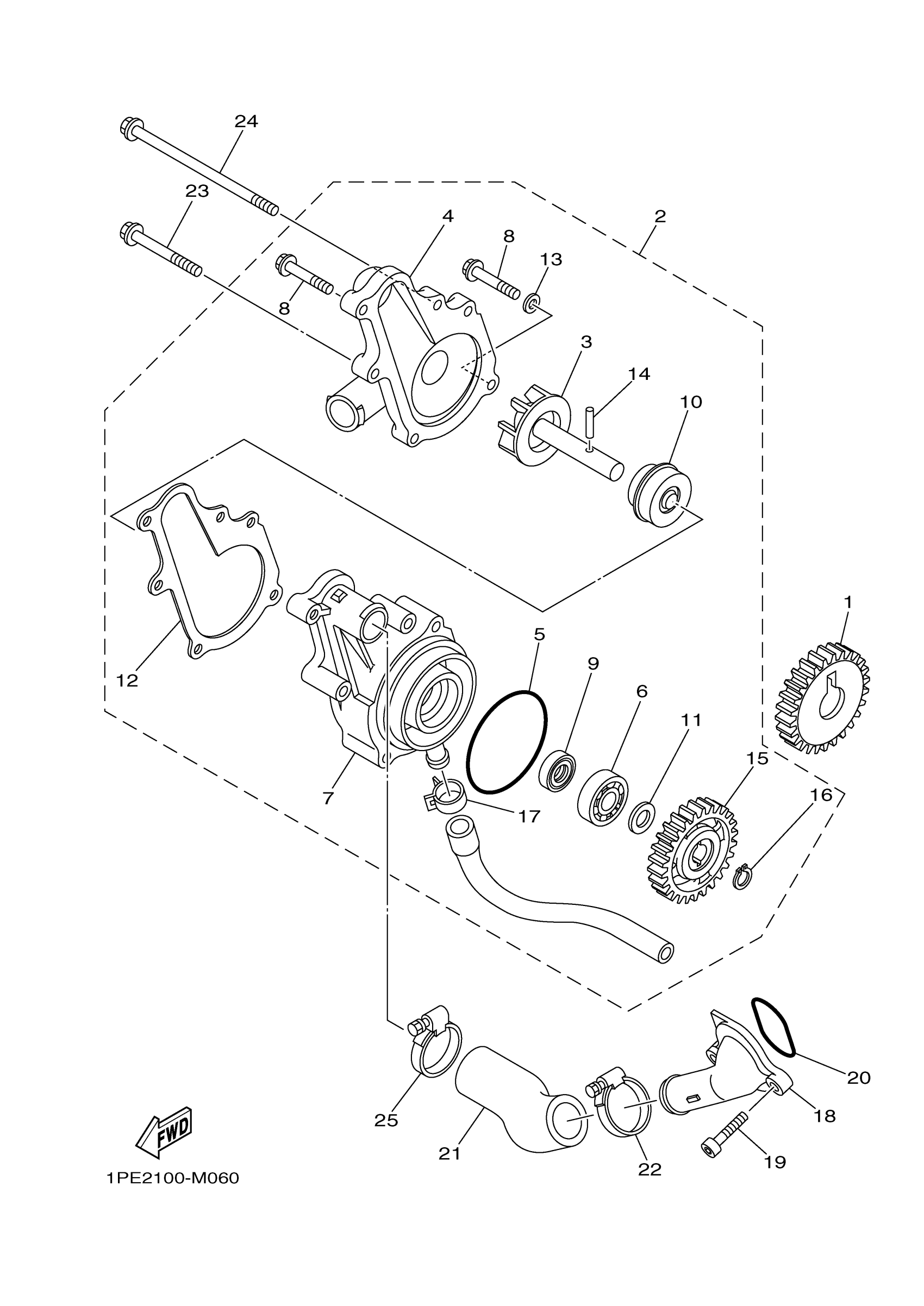

Yamaha YFM70RSBMS (RAPTOR 700) BCXD 2021 WATER PUMP Diagram

#

Description
Price

1

GEAR, DRIVE

1S3-12436-00-00

$53.99

2

WATER PUMP ASSY

1S3-12420-00-00

$291.99

3

IMPELLER SHAFT ASSY

1S3-12450-00-00

$57.99

4

COVER, HOUSING

1S3-12422-00-00

Unavailable

5

O-RING(2HT)

93210-61750-00

$8.49

6

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

7

HOUSING, WATER PUMP

1S3-12421-00-00

$74.99

8

BOLT, FLANGE

95022-06025-00

$3.62

9

OIL SEAL

93101-12173-00

$13.49

10

SEAL, MECHANICAL

4C8-12438-00-00

$49.99

11

WASHER, PLATE (525)

90201-12541-00

$7.49

12

GASKET, HOUSING COVER 2

1S3-12428-00-00

$10.99

13

GASKET 256113960000

90430-06014-00

Unavailable

14

PIN, DOWEL(1HX)

93603-16219-00

$8.49

15

GEAR, IMPELLER SHAFT

5VK-12459-00-00

$43.99

16

CIRCLIP(10Y)

99009-12400-00

Unavailable

17

CLIP(MG5)

90467-14117-00

Unavailable

18

JOINT 1

1S3-12469-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

20

O-RING

93210-33006-00

Unavailable

21

HOSE 2

1S3-12577-00-00

Unavailable

22

HOSE CLAMP ASSY

90450-32015-00

Unavailable

23

BOLT, FLANGE

95022-06050-00

Unavailable

24

BOLT, FLANGE

95022-06110-00

Unavailable

25

HOSE CLAMP ASSY

90450-32015-00

Unavailable
