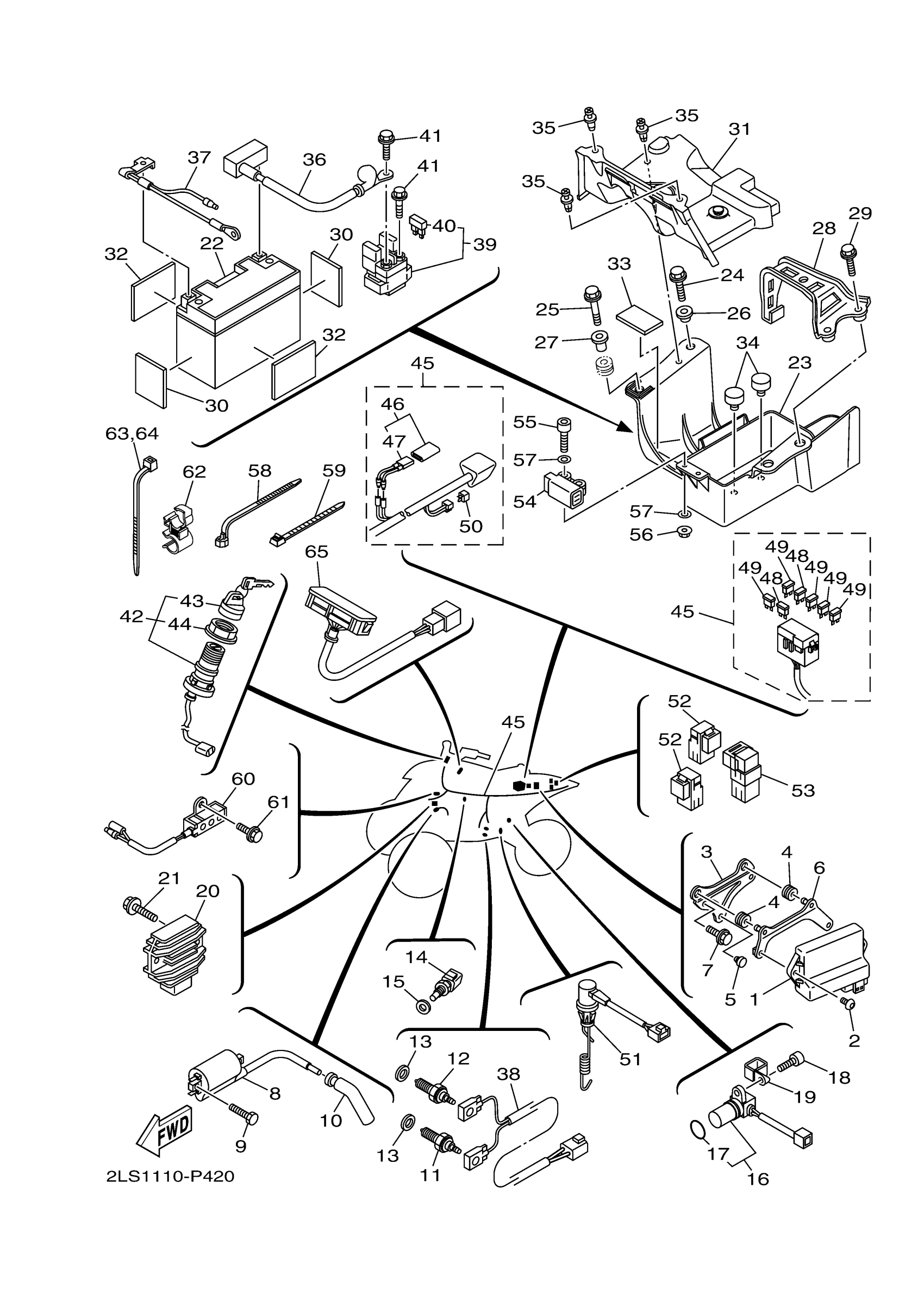

Yamaha YFM70RSBMS (RAPTOR 700) BCXD 2021 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

2LS-8591A-10-00

$712.99

2

BOLT, BUTTON HEAD

92012-06010-00

$4.30

3

BRACKET, C.D.I. UNIT

2LS-F1274-00-00

Unavailable

4

GROMMET (2H7)

90480-11224-00

$3.45

5

PLUG

90338-07007-00

$3.35

6

BRKT., CONTROL UNI

2LS-2830X-00-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

IGNITION COIL ASSY

3TB-82310-01-00

Unavailable

9

BOLT(3JK)

97027-05020-00

$3.29

10

PLUG CAP ASSY

5VK-82370-00-00

$62.99

11

NEUTRAL SWITCH ASSY

5LP-82540-01-00

$37.99

12

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

13

GASKET (1KH,1.0T)

90430-10148-00

$5.60

14

THERMOSENSOR ASSY

5YP-85790-00-00

$64.99

15

GASKET(2GH)

90430-12202-00

$9.49

16

SENSOR, SPEED

1S3-83755-02-00

Unavailable

17

O-RING

4D9-81168-00-00

Unavailable

18

BOLT(3MA)

91312-06016-00

Unavailable

19

CLAMP

90461-10004-00

Unavailable

20

RECTIFIER & REGULATOR ASSY

5BN-81960-00-00

Unavailable

21

BLOT, FLANGE DEEP RECESS

95D32-06025-00

Unavailable

22

GT9B4 GS BATTERY - FA

GT9-B4000-00-00

Unavailable

23

BOX, BATTERY 1

1PE-H212B-00-00

Unavailable

24

BOLT, FLANGE

90105-06084-00

Unavailable

25

BOLT, FLANGE DEEP

95D02-06030-00

Unavailable

26

COLLAR

90387-06153-00

Unavailable

27

COLLAR

90387-06158-00

Unavailable

28

BRACKET, BATTERY

1PE-H2128-00-00

Unavailable

29

BOLT, FLANGE DEEP RECESS

95D02-06020-00

Unavailable

30

SEAT, BATTERY

1S3-82123-00-00

Unavailable

31

COVER, BATTERY

1PE-H2129-00-00

Unavailable

32

PLATE, FOOTREST

4HC-27415-00-00

Unavailable

33

DAMPER

22F-2139X-00-00

Unavailable

34

PAD, BATTERY

5TG-82121-10-00

Unavailable

35

RIVET

90269-06002-00

Unavailable

36

WIRE, PLUS LEAD

1PE-H2115-00-00

Unavailable

37

WIRE, MINUS LEAD

1PE-H2116-00-00

Unavailable

38

WIRE, LEAD

1S3-82541-00-00

Unavailable

39

STARTER RELAY ASSY (2768112-A)

5UG-81940-00-00

Unavailable

40

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

41

BOLT, FLANGE

95022-06008-00

Unavailable

42

MAIN SWITCH ASSY

4SH-82510-01-00

Unavailable

43

CAP, KEY

3HN-82579-00-00

Unavailable

44

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

45

WIRE HARNESS ASSY

2LS-82590-10-00

Unavailable

46

CIRCUIT BREAKER ASSY

3D5-82180-00-00

Unavailable

47

THERMO SWITCH ASSY

3D5-82560-00-00

Unavailable

48

FUSE

5JJ-82151-20-00

Unavailable

49

. FUSE (10A)

67F-82151-40-00

Unavailable

50

DIODE ASSY

3WP-81980-00-00

Unavailable

51

STOP SWITCH ASSY

1S3-82530-11-00

Unavailable

52

RELAY ASSY

1TP-81950-00-00

Unavailable

53

RELAY ASSY

5DM-81950-01-00

Unavailable

54

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

55

BOLT

91312-04025-00

Unavailable

56

NUT, FLANGE

95707-04500-00

Unavailable

57

WASHER, PLATE

90201-04030-00

Unavailable

58

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

59

CLAMP (6E5)

90465-13M11-00

Unavailable

60

RESISTOR ASSY

1S3-85370-00-00

Unavailable

61

BLOT, FLANGE DEEP RECESS

95D32-06010-00

Unavailable

62

CLAMP

90464-15011-00

Unavailable

63

CLAMP (6E5)

90465-13M11-00

Unavailable

64

CLAMP(JN6)

90464-40825-00

Unavailable

65

PILOT LIGHT ASSY

1S3-83530-01-00

Unavailable
