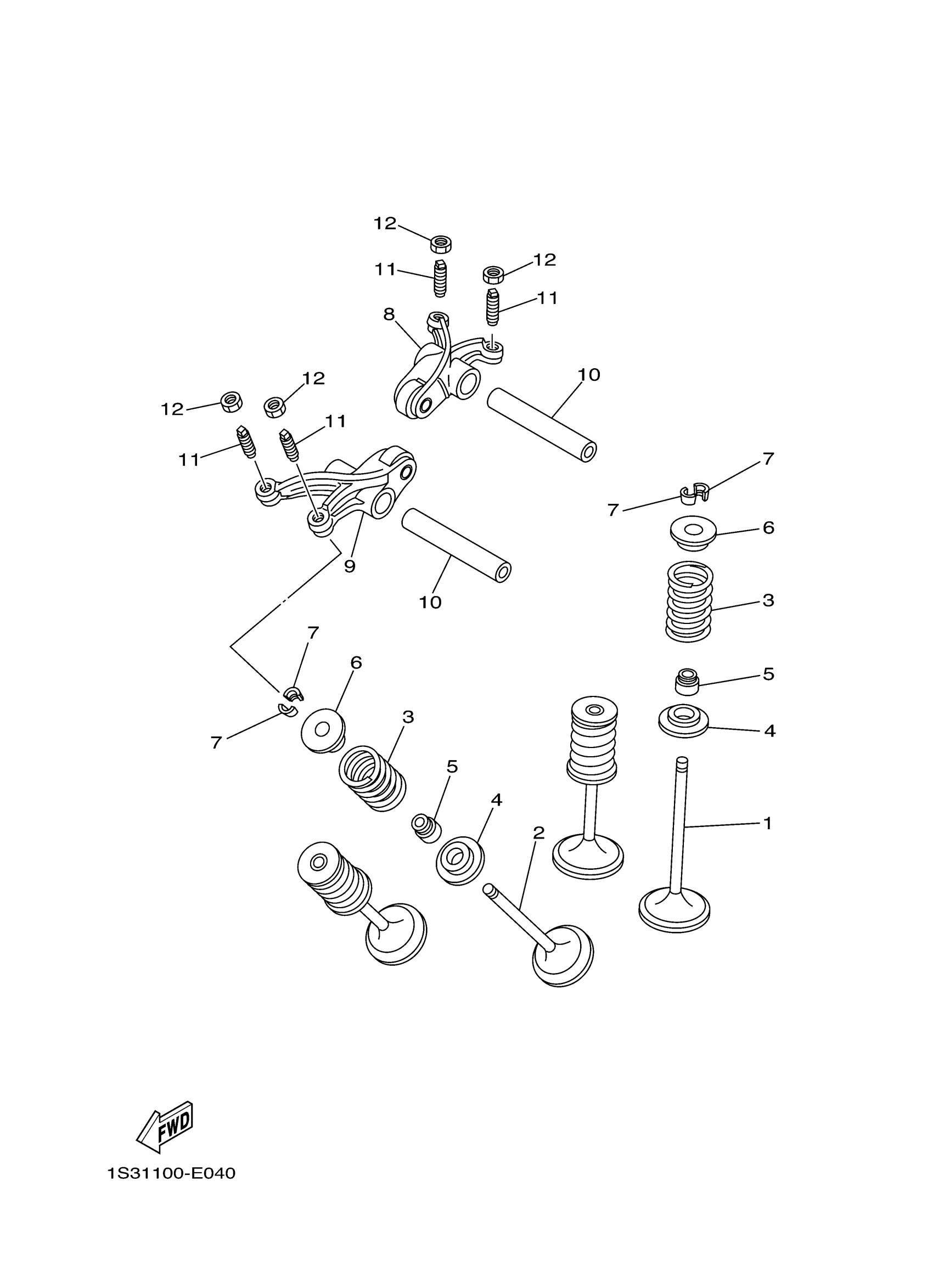

Yamaha YFM70RSBHO (RAPTOR 700) 2LS9 2017 VALVE Diagram

VALVE, INTAKE

5VK-12111-00-00

$34.95

VALVE, EXHAUST

5VK-12121-00-00

$70.67

SPRING, VALVE INNER

1S3-12113-00-00

$16.24

SEAT, VALVE SPRING

1PE-12116-00-00

$5.70

SEAL, VALVE STEM

5H0-12119-00-00

$13.75

RETAINER, VALVE SPRING

3YF-12117-01-00

$12.28

COTTER, VALVE

4G0-12118-00-00

$6.39

ARM, VALVE ROCKER

5VK-12151-00-00

$125.60

ARM, VALVE ROCKER 2

5VK-12161-10-00

$68.48

SHAFT, ROCKER

5VK-12146-00-00

$18.62

SCREW, VALVE ADJUSTING

5XT-12159-00-00

$8.06

NUT HEXAGON 371121580000

90170-06128-00

$5.75
