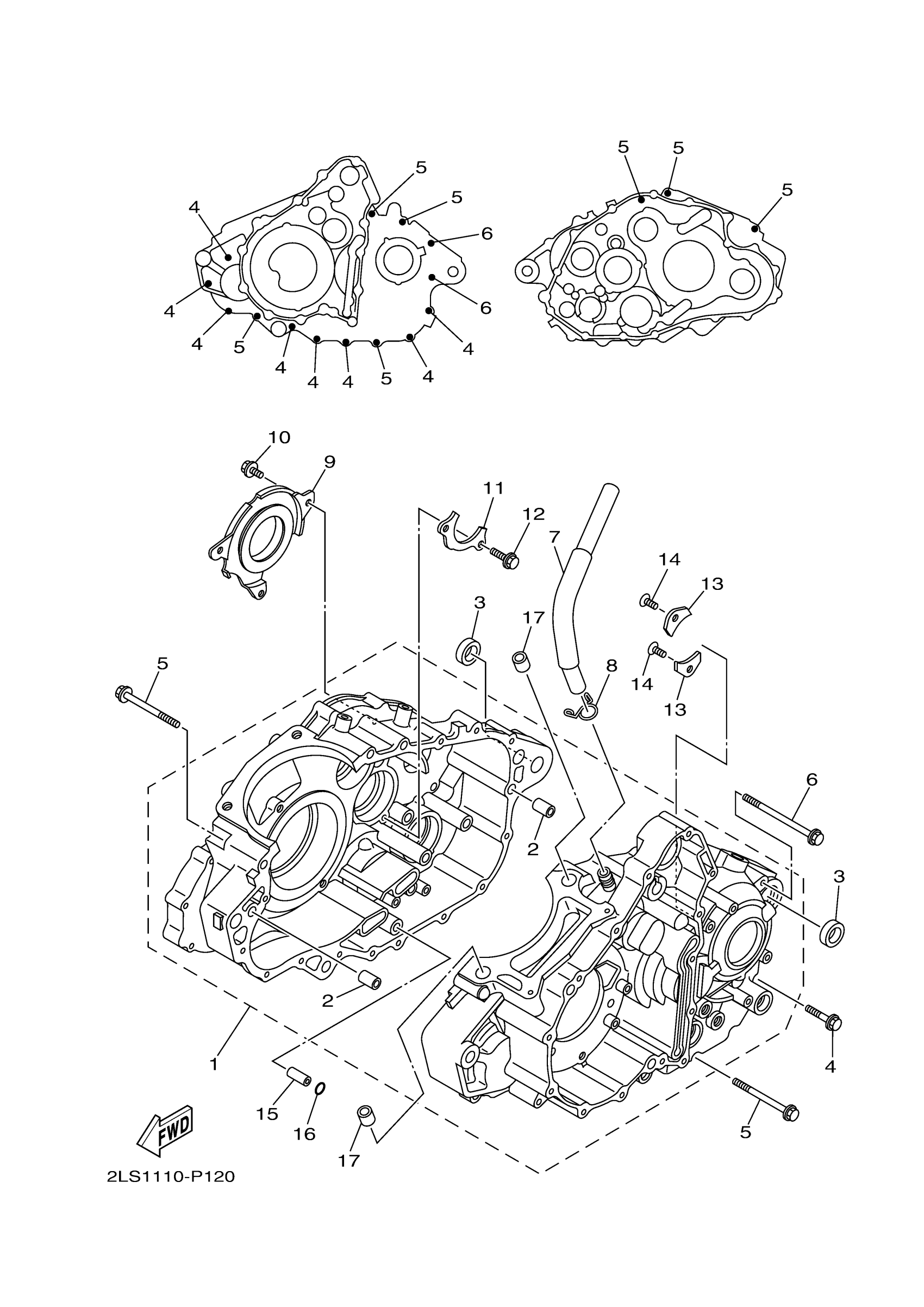

Yamaha YFM70RSBHO (RAPTOR 700) 2LS9 2017 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1PE-15100-09-00

$1,395.99

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

COLLAR

90387-17009-00

$13.50

4

BOLT, FLANGE

95022-06030-00

$1.31

5

BOLT, FLANGE

95022-06070-00

$1.88

6

BOLT, FLANGE

95022-06090-00

$1.61

7

PIPE, BREATHER 1

2LS-E1166-00-00

$5.44

8

CLIP

90467-140A4-00

$7.77

9

PLATE, BREATHER

1S3-11165-00-00

$14.27

10

BOLT, FLANGE

95022-06012-00

$2.80

11

PLATE, BEARING COVER

1S3-15383-00-00

$6.42

12

BOLT, FLANGE

95022-06020-00

$3.11

13

PLATE, BEARING COVER

4JT-15381-01-00

$9.82

14

SCREW, COUNTERSUNK

90151-06052-00

$5.96

15

PIN, DOWEL(3XW)

91808-16023-00

$5.26

16

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

17

PIN, DOWEL

99530-14016-00

Unavailable
