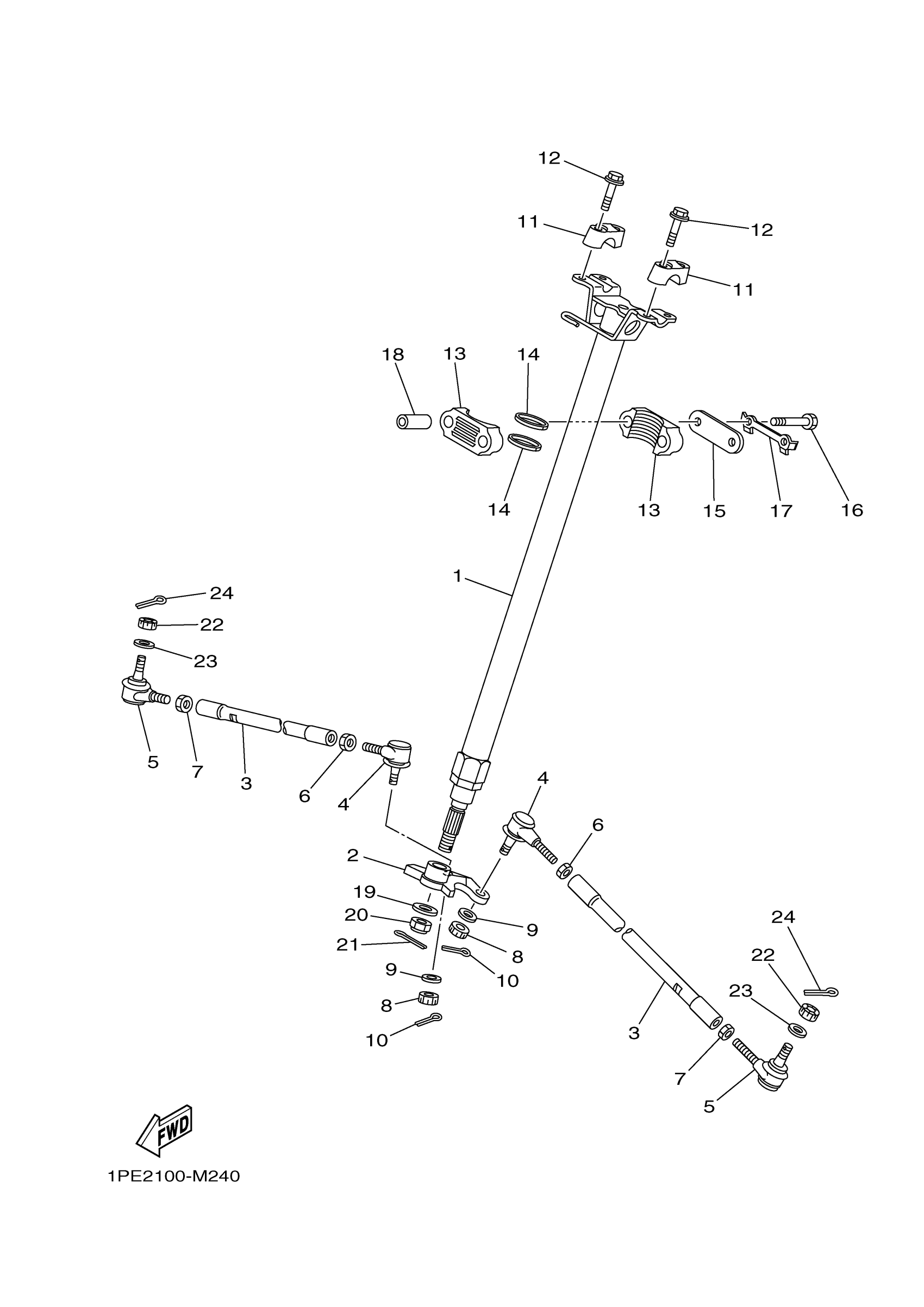

Yamaha YFM70RCCTW (RAPTOR 700R SE CAL) BFKP 2026 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

1PE-F3813-00-00

$182.26

2

ARM, PITMAN

1PE-F3816-00-00

$52.87

3

ROD, TIE

1PD-23831-00-00

$52.77

4

JOINT, UNIVERSAL 1

1S3-23841-20-00

$54.94

5

JOINT, UNIVERSAL 2

1S3-23845-20-00

$54.94

6

NUT, HEXAGON SMALL

95317-12700-00

$6.17

7

NUT (821-23834-00)

90170-12054-00

$6.17

8

NUT, CASTLE

90171-10001-00

$2.85

9

WASHER (25G)

90209-10229-00

$5.86

10

PIN, COTTER

91490-20025-00

$1.31

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

12

BOLT, FLANGE DEEP RECESS

95D32-08030-00

$0.85

13

PLANE BEARING, STE

37S-F3812-00-00

$6.25

14

OIL SEAL

93112-31800-00

$1.48

15

BRACKET, STEERING

1PE-F3868-00-00

$5.53

16

BOLT, HEXAGON

97017-08060-00

$7.72

17

WASHER, LOCK 1

1UY-23894-01-00

$6.86

18

COLLAR(85G)

90387-106T4-00

$11.29

19

WASHER, PLATE

90201-14021-00

$5.14

20

NUT, SELF-LOCKING

90185-14009-00

$8.31

21

PIN, COTTER

91490-20035-00

$3.25

22

NUT, CASTLE

90171-10001-00

$2.85

23

WASHER (25G)

90209-10229-00

$5.86

24

PIN, COTTER

91490-20025-00

$1.31
