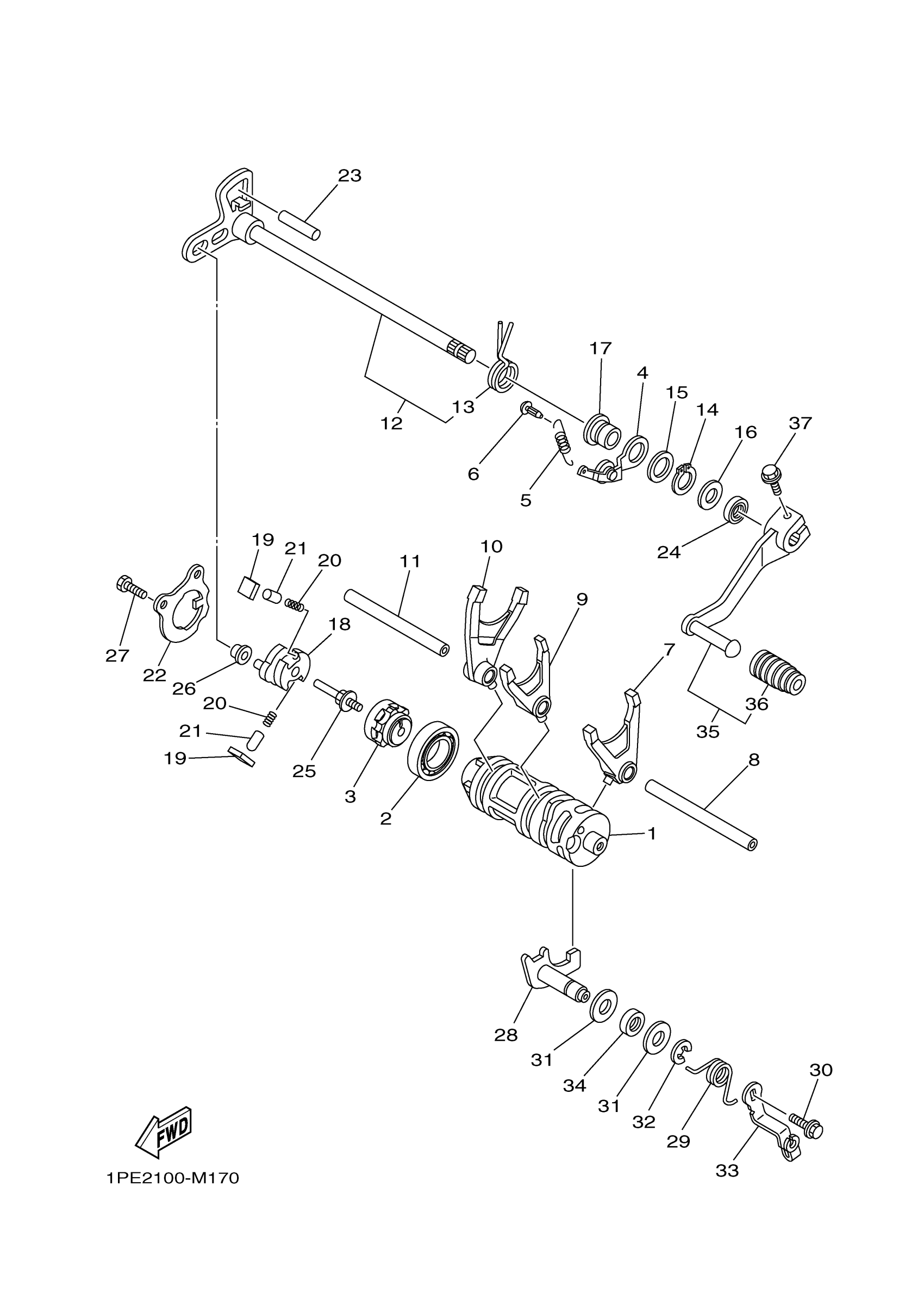

Yamaha YFM70RCCTW (RAPTOR 700R SE CAL) BFKP 2026 SHIFT CAM & FORK Diagram

#

Description
Price

1

CAM, SHIFT

1PE-18541-00-00

$128.69

2

BEARING

93306-90509-00

$33.59

3

SEGMENT

2S2-18185-00-00

$55.76

4

STOPPER LEVER ASSY

1S3-18140-00-00

$18.45

5

HANGER, SPRING

5JW-18144-00-00

$6.38

6

HOOK, SPRING

132-16346-00-00

$8.70

7

FORK, SHIFT 1

1PE-18511-00-00

$106.12

8

BAR, SHIFT FORK GU

1PE-18531-00-00

$24.12

9

FORK, SHIFT 2

1PE-18512-00-00

$108.49

10

FORK, SHIFT 3

1PE-18513-00-00

$115.75

11

BAR, SHIFT FORK GU

1PE-18534-00-00

$21.37

12

SHIFT SHAFT ASSY

1S3-18101-10-00

$88.20

13

SPRING, TORSION

90508-35007-00

$6.22

14

CIRCLIP(1EY)

99009-17400-00

$3.91

15

WASHER, PLATE (30X)

90201-177G4-00

$6.78

16

WASHER, PLATE

90201-12040-00

$5.26

17

BOSS 1

5VK-18699-00-00

$11.78

18

LEVER, SHIFT 2

1S3-18122-01-00

$76.17

19

PAWL, SHIFTER

3XJ-18182-00-00

$13.06

20

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$5.10

21

PIN, PAWL

3XJ-18184-00-00

$12.69

22

GUIDE, SHIFT

1S3-18172-00-00

$13.29

23

PIN, DOWEL

93608-30002-00

$7.42

24

OIL SEAL (4G0)

93102-12224-00

$8.35

25

PIN, SHIFT

3XJ-18173-10-00

$16.43

26

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$10.77

27

BOLT

90101-06664-00

$2.62

28

SHIFTER BRKT. ASSY

1S3-18380-00-00

$33.26

29

SPRING

5LP-18337-01-00

$5.32

30

BOLT, FLANGE

95817-06012-00

$1.49

31

WASHER, PLATE (353)

90201-12575-00

$6.17

32

CIRCLIP

99002-10600-00

$6.28

33

BRACKET, SHIFTER

5LP-18431-00-00

$10.43

34

OIL SEAL (12X22X5-371)

93102-12106-00

$10.14

35

SHIFT PEDAL ASSY

1PE-E8110-00-00

$56.98

36

COVER, SHIFT PEDAL

1PE-E8113-00-00

$4.95

37

BOLT, FLANGE

90105-06142-00

$6.17
