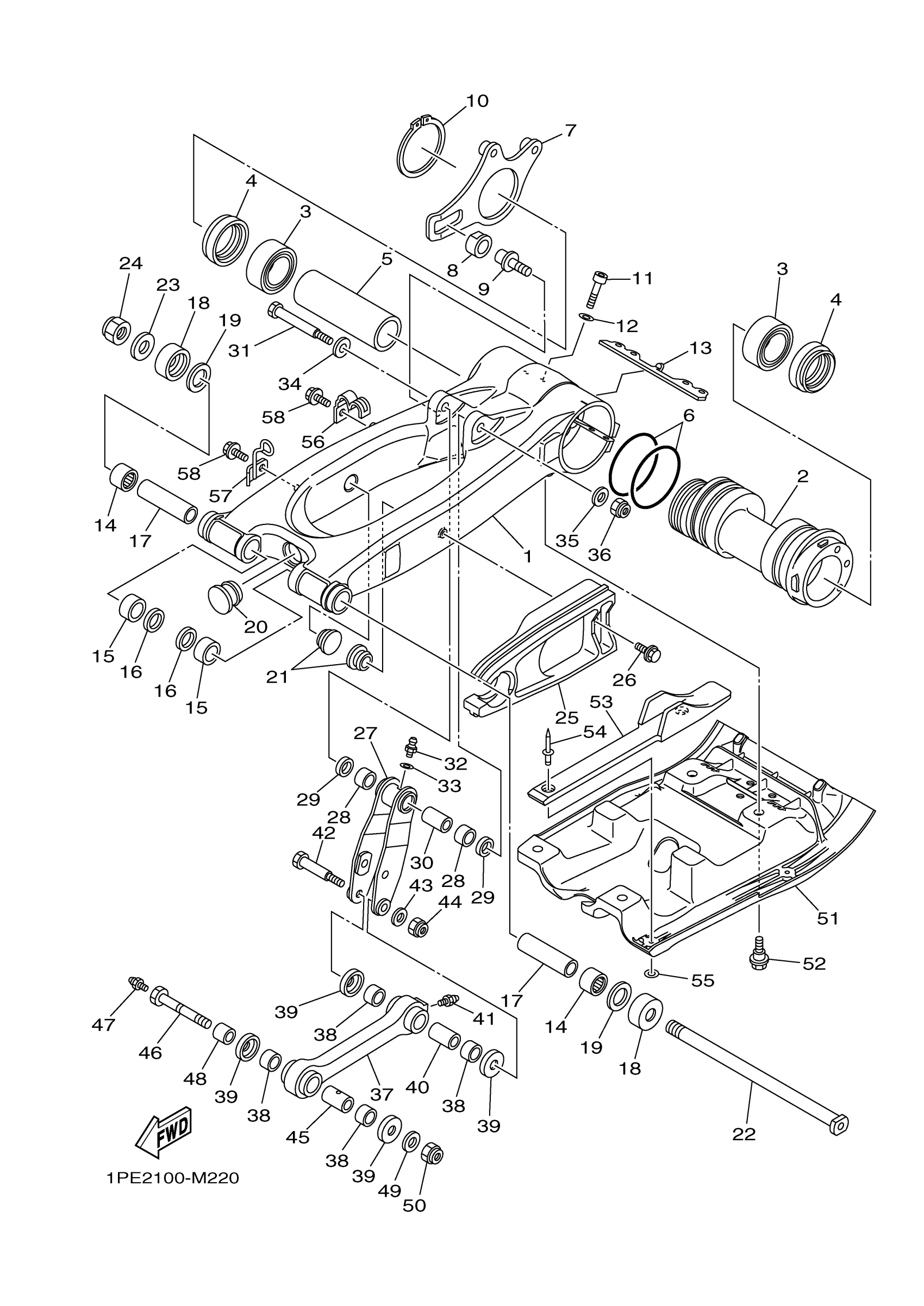

Yamaha YFM70RCCTW (RAPTOR 700R SE CAL) BFKP 2026 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

1S3-22110-00-00

$884.99

2

HUB, REAR

1PE-25311-00-00

$226.50

3

BEARING

93304-20812-00

$87.90

4

OIL SEAL

93106-46003-00

$13.85

5

SPACER, BEARING

1PE-25317-00-00

$57.81

6

O-RING

1S3-23147-01-00

$8.70

7

BRACKET, CALIPER

1PE-25721-00-00

$111.66

8

COLLAR

90387-16014-00

$24.34

9

BOLT, HEXAGON SOCKET HEAD

90110-12002-00

$8.31

10

CIRCLIP

93410-67085-00

$10.68

11

BOLT,SOCKET

91314-08040-00

$5.10

12

.. WASHER, PLATE

92990-08600-00

$2.36

13

SEAL, DUST

1S3-22475-00-00

$5.32

14

BEARING

93317-222B8-00

$16.34

15

BUSH, SOLID (23X)

90380-22111-00

$17.11

16

OIL SEAL (23X)

93106-22019-00

$9.34

17

BUSH

1S3-22184-00-00

$21.00

18

COVER, THRUST 2

4X7-22129-00-00

$19.54

19

WASHER

3YF-22149-00-00

$8.03

20

PLUG

1S3-22417-00-00

$6.40

21

PLUG

90338-23004-00

$3.43

22

SHAFT, PIVOT

1S3-22141-00-00

$60.97

23

WASHER, PLATE

90201-16018-00

$6.71

24

NUT, SELF-LOCKING

90185-16002-00

$15.11

25

SEAL, GUARD

1S3-22151-00-00

$66.52

26

BOLT

90109-06172-00

$2.71

27

ARM, RELAY

1PE-F217A-00-00

$49.60

28

BUSH, FORMED(1RX)

90383-20032-00

$10.52

29

OIL SEAL

93109-20076-00

$13.58

30

COLLAR

90387-12021-00

$16.49

31

BOLT

90109-10018-00

$6.22

32

NIPPLE, GREASE

93700-06M03-00

$7.15

33

WASHER, PLATE (J22)

90201-063F3-00

$6.46

34

WASHER, PLATE

90201-12030-00

$5.25

35

WASHER, PLATE

90201-10034-00

$6.29

36

NUT, SELF-LOCKING

90185-10817-00

$1.03

37

ROD, CONNECTING 1

1PE-F217F-00-00

$110.31

38

BUSH, FORMED(1RX)

90383-20032-00

$10.52

39

COVER, THRUST 2

23X-22129-01-00

$10.29

40

COLLAR

90387-12010-00

$15.58

41

NIPPLE, GREASE

93700-06M03-00

$7.15

42

BOLT

90109-10020-00

$5.85

43

WASHER, PLATE

90201-10035-00

$3.56

44

NUT, SELF-LOCKING

90185-10817-00

$1.03

45

COLLAR

90387-12010-00

$15.58

46

BOLT

90109-12009-00

$17.17

47

NIPPLE, GREASE

93700-06M03-00

$7.15

48

COLLAR

90387-12028-00

$6.23

49

WASHER, PLATE

90201-12032-00

$4.55

50

NUT, SELF-LOCKING

90185-12002-00

$10.05

51

COVER

1PE-F219X-01-00

$25.72

52

BOLT

90109-06199-00

$5.78

53

GUARD, CHAIN

1S3-22153-00-00

$50.67

54

RIVET, BLIND(8CH)

90267-47187-00

$1.84

55

WASHER, PLATE

90201-04027-00

$1.88

56

HOLDER, BRAKE HOSE

1S3-25886-00-00

$6.68

57

HOLDER, CABLE

1S3-23317-00-00

$16.58

58

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.88
