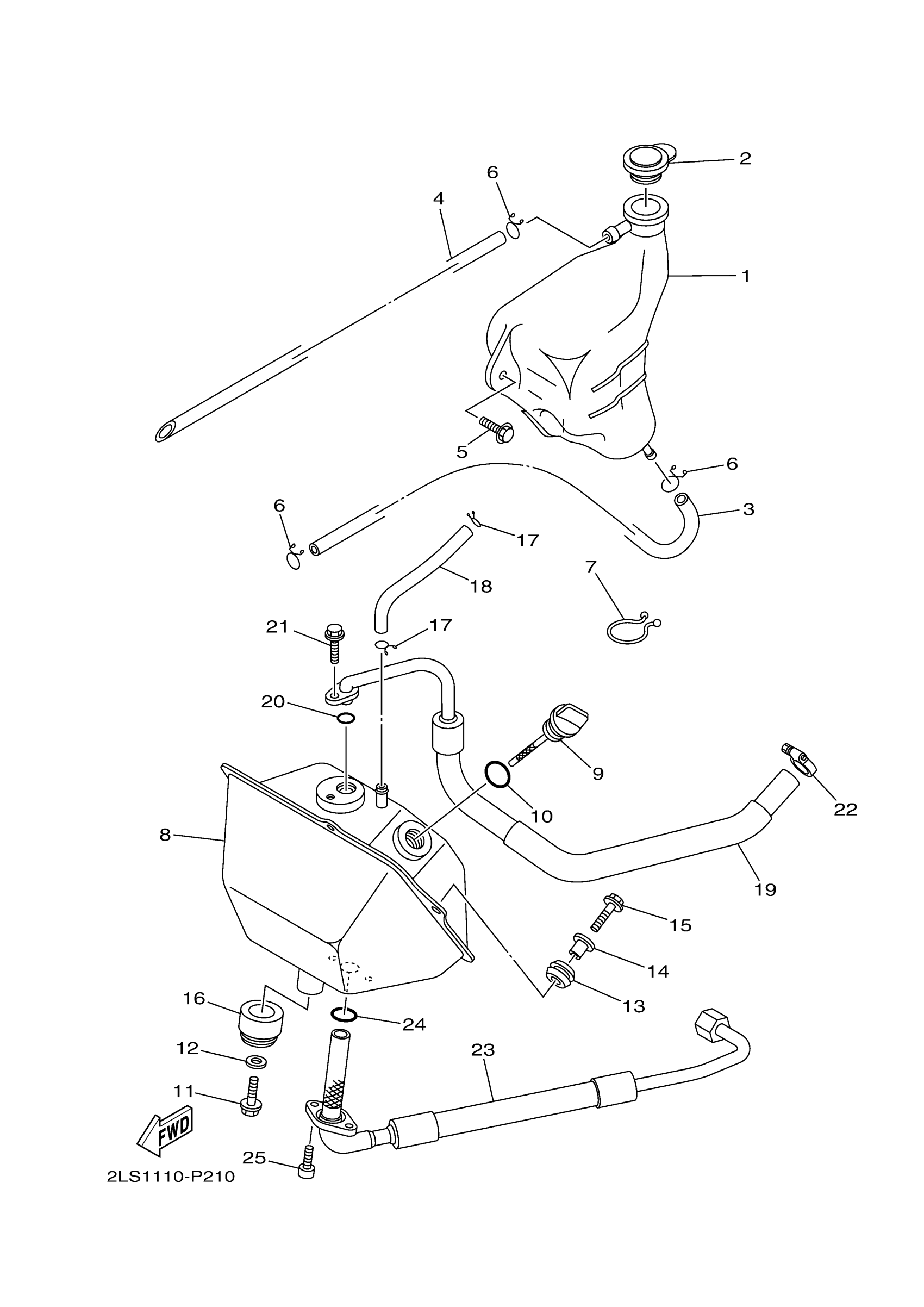

Yamaha YFM70RCCTW (RAPTOR 700R SE CAL) BFKP 2026 OIL TANK Diagram

#

Description
Price

1

TANK, RECOVERY

1PE-F1871-00-00

$34.67

2

CAP

1S3-21875-00-00

$9.12

3

HOSE (L865)

90445-09021-00

$30.76

4

HOSE (L420)

90445-092K1-00

$10.63

5

BOLT, WITH WASHER

90119-06152-00

$2.74

6

CLIP 101235600

90467-08003-00

$6.13

7

CLAMP

90464-25267-00

$5.62

8

OIL TANK ASSY

1S3-21750-10-00

$468.57

9

GAUGE, LEVEL

5LP-21761-01-00

$8.91

10

O-RING

93210-21190-00

$5.59

11

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

12

WASHER, PLATE (4L0)

90201-082A6-00

$2.92

13

GROMMET(1VJ)

90480-13459-00

$1.69

14

COLLAR

90387-06205-00

$5.26

15

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$0.74

16

GROMMET

90480-24004-00

$3.58

17

CLIP

90467-100A1-00

$6.38

18

HOSE (L147)

90445-11034-00

$7.57

19

HOSE, OIL 2

2LS-13465-10-00

$97.32

20

O-RING (371)

93210-10197-00

$5.86

21

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.57

22

HOSE CLAMP ASSY

90450-18M09-00

$11.49

23

HOSE, OIL 1

1S3-13464-11-00

$126.71

24

O-RING (26H)

93210-16629-00

$5.86

25

BOLT(3MA)

91312-06016-00

$4.89
