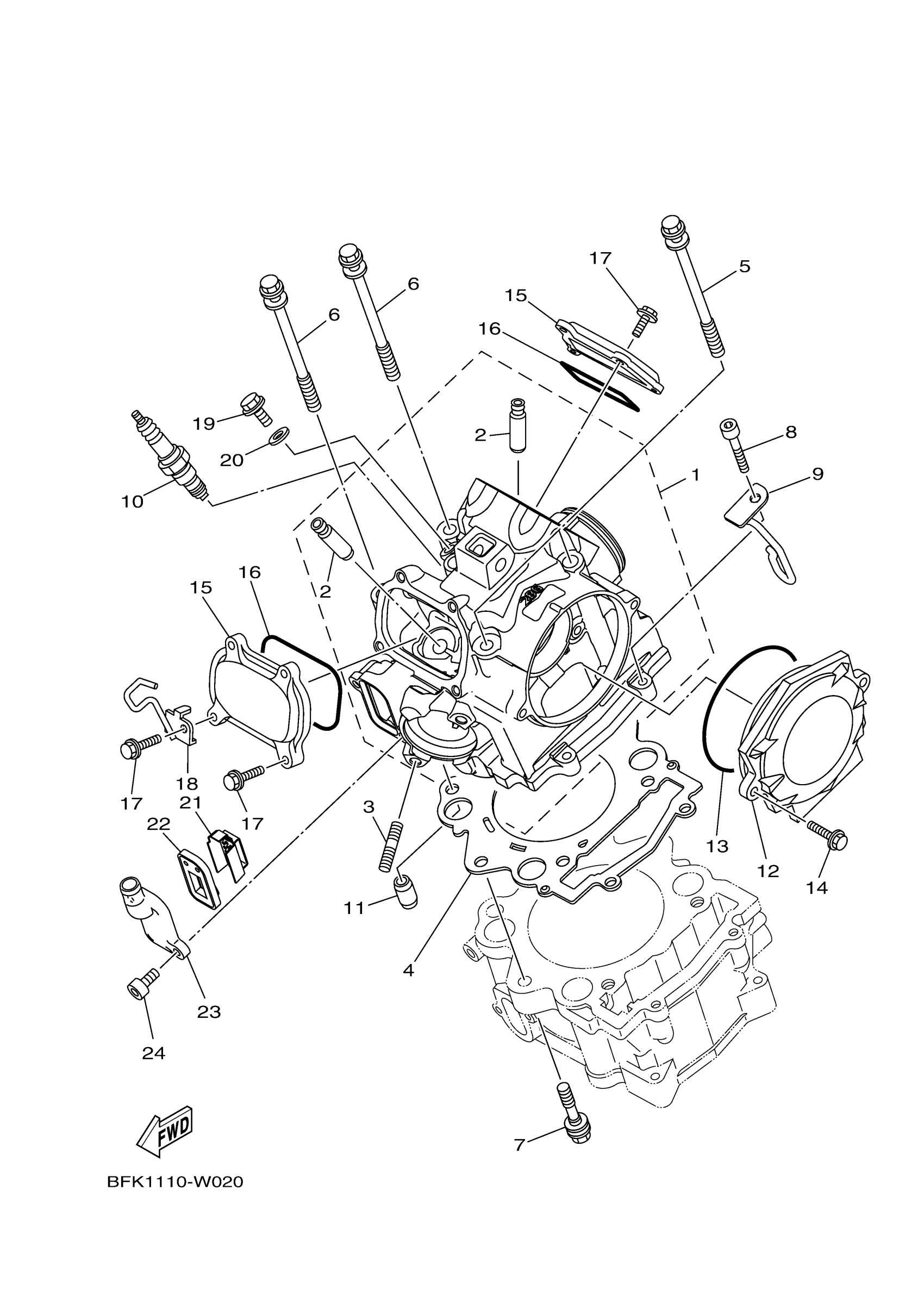

Yamaha YFM70RCCTW (RAPTOR 700R SE CAL) BFKP 2026 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2LS-11101-08-00

$902.99

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$45.32

3

BOLT, STUD

95612-08625-00

$4.69

4

GASKET, CYLINDER HEAD 1

3B4-11181-00-00

$47.74

5

BOLT

90109-09003-00

$9.10

6

BOLT

90109-09002-00

$9.10

7

BOLT

90109-09005-00

$7.40

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

9

HOLDER

BFK-11395-00-00

$11.72

10

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

11

PIN, DOWEL(4XL)

93612-16254-00

$4.37

12

COVER, CYLINDER HEAD SIDE 3

1S3-11185-10-00

$68.12

13

O-RING (70R)

93210-96601-00

$10.68

14

BOLT, FLANGE

95022-06020-00

$3.32

15

COVER, CYLINDER HEAD SIDE 2

1S3-11186-00-00

$26.46

16

O-RING (14X)

93210-78544-00

$10.65

17

BOLT, FLANGE

95022-06020-00

$3.32

18

HOLDER 1

1S3-1131E-00-00

$14.75

19

BOLT, UNION

90401-08004-00

$6.31

20

GASKET

90430-08119-00

$4.70

21

PLATE

2BG-1482K-00-00

$13.29

22

REED VALVE ASS

5JW-14890-00-00

$58.68

23

CAP, CASE

5JW-14889-00-00

$62.98

24

BOLT,SOCKET HEAD

91314-06020-00

$2.05
