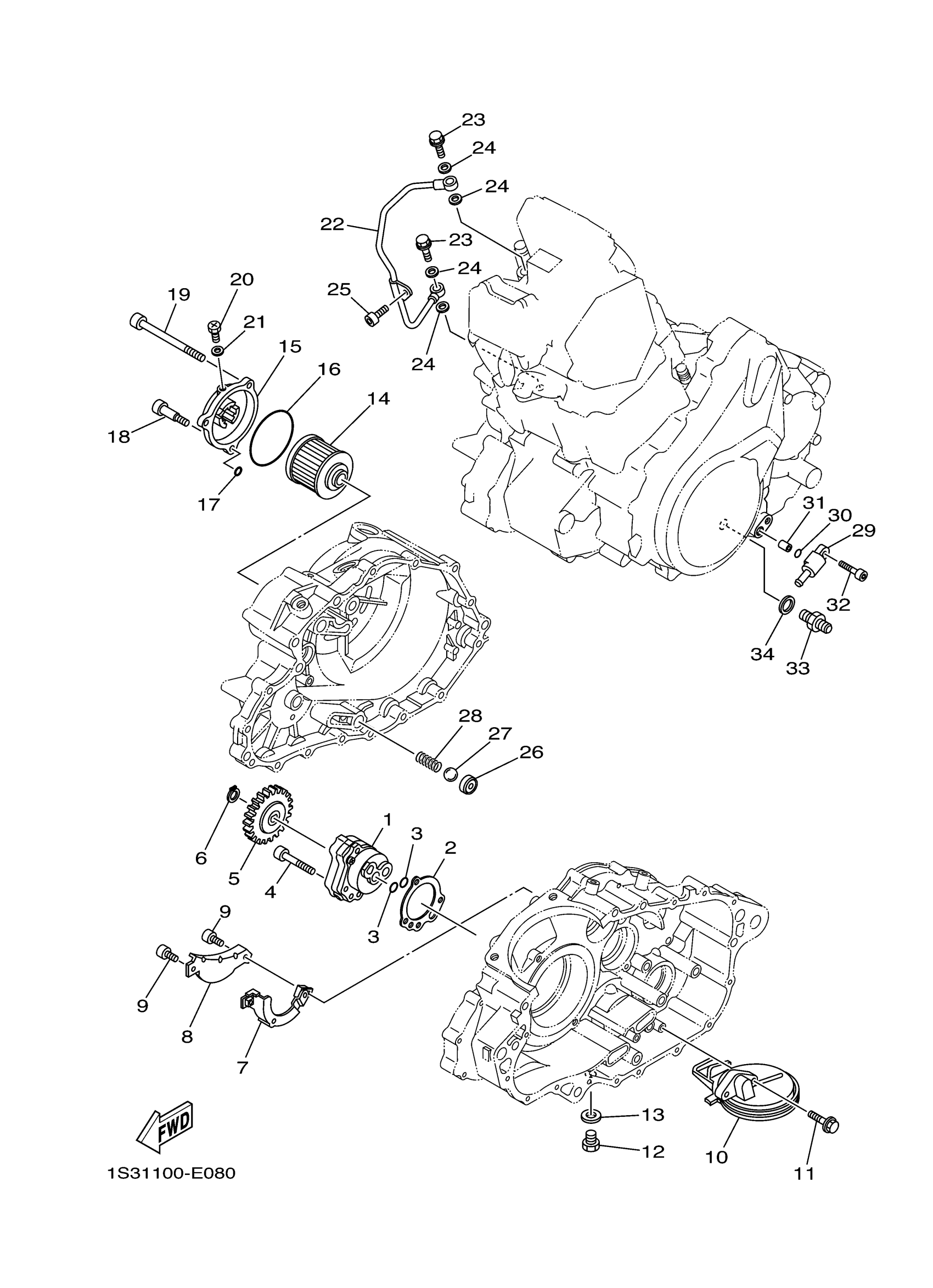

Yamaha YFM70RCCTL (RAPTOR 700R CAL) BFKM 2026 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5LP-13300-00-00

$217.49

2

GASKET, PUMP COVER

5LP-13329-00-00

$5.75

3

O-RING (2H7)

93210-13361-00

$4.00

4

BOLT(J17)

91312-06035-00

$2.38

5

GEAR, PUMP DRIVEN

3AJ-13325-00-00

$21.25

6

CIRCLIP(24H)

99009-11400-00

$4.70

7

COVER, PUMP 2

1S3-13356-00-00

$19.45

8

COVER, PUMP GEAR

1S3-13327-00-00

$6.14

9

BOLT

91312-05008-00

$5.18

10

STRAINER HOUSING ASSY

1S3-13410-00-00

$50.68

11

BOLT, FLANGE

95022-06020-00

$3.32

12

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

13

GASKET

214-11198-01-00

$2.66

14

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

$12.82

15

COVER, OIL ELEMENT

1S3-13447-00-00

$39.59

16

O-RING (583 OIL CLEANER)

93210-64297-00

$7.12

17

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.35

18

BOLT

90109-06169-00

$4.75

19

BOLT

91312-06095-00

$3.72

20

SCREW

90149-05018-00

$6.29

21

GASKET

90430-05126-00

$5.69

22

PIPE, DELIVERY 2

1S3-13171-00-00

$65.91

23

BOLT, UNION

90401-10024-00

$8.31

24

GASKET

90430-10188-00

$5.98

25

BOLT,SOCKET

91317-06012-00

$6.17

26

SEAT, CHECK BALL

583-13113-00-00

$20.58

27

BALL

93503-08007-00

$2.35

28

SPRING, COMPRESSION(1VJ)

90501-043E0-00

$3.65

29

PIPE, OIL 1

1S3-13416-00-00

$35.06

30

O-RING (371)

93210-10197-00

$5.86

31

PIN, DOWEL(3VD)

99530-10114-00

$2.23

32

BOLT, FLANGE

95022-06025-00

$1.46

33

JOINT

1S3-13132-00-00

$13.85

34

GASKET 256131670000

90430-14043-00

$6.46
