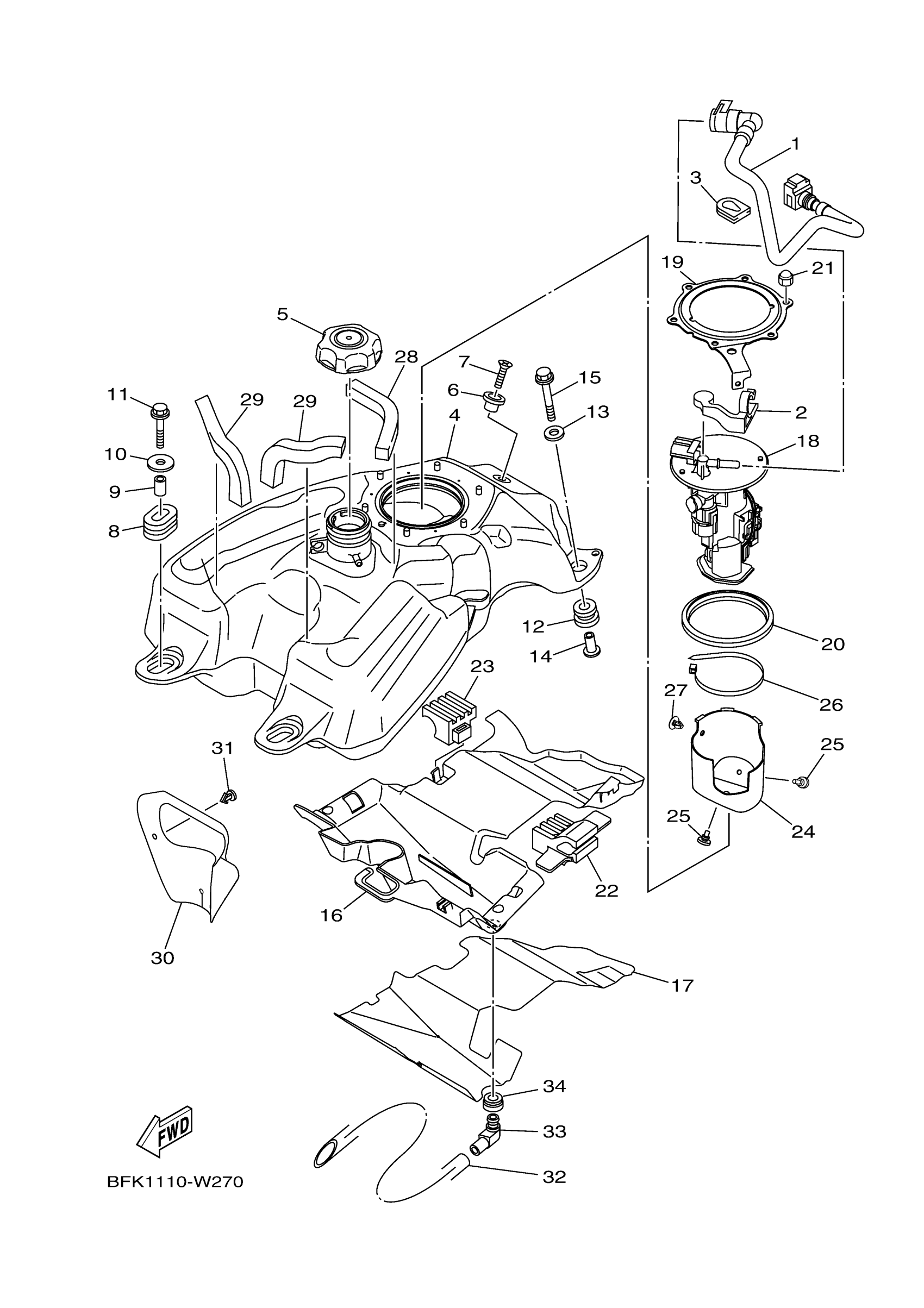

Yamaha YFM70RCCTL (RAPTOR 700R CAL) BFKM 2026 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

BFK-13971-00-00

$54.48

2

CLAMP

90464-14004-00

$5.40

3

GROMMET

90480-17012-00

$6.52

4

FUEL TANK COMP.

1PE-F4110-21-00

$175.23

5

CAP ASSY

BFK-24610-10-00

$32.33

6

BRACKET, SEAT

4EW-2412F-00-00

$12.71

7

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

8

GROMMET

90480-01017-00

$4.60

9

COLLAR, LEVER 1

36Y-83913-01-00

$8.94

10

WASHER, PLATE

90201-06090-00

$5.17

11

BOLT, FLANGE DEEPRECESS (1FD9)

95D02-06035-00

$0.38

12

GROMMET

90480-18005-00

$6.25

13

WASHER, PLATE

90201-06033-00

$2.74

14

COLLAR

90387-06098-00

$7.06

15

BOLT, FLANGE DEEPRECESS (1FD9)

95D02-06035-00

$0.38

16

DAMPER, PLATE 1

1S3-2414H-00-00

$26.29

17

INSULATOR, FUEL TA

1PE-F416F-00-00

$34.26

18

FUEL PUMP COMP.

BFK-13907-00-00

$305.70

19

BRACKET, FUEL PUMP

BFK-24491-00-00

$29.18

20

O-RING

1S3-24486-00-00

$15.04

21

NUT(4MY)

95307-06800-00

$2.86

22

STOPPER 1

1S3-24278-00-00

$15.71

23

STOPPER 2

1S3-24279-00-00

$10.40

24

COVER

BFK-24452-00-00

$11.29

25

PLUG

90338-05008-00

$2.49

26

CLAMP

90464-66001-00

$1.85

27

RIVET

90269-07011-00

$6.25

28

DAMPER, PLATE

90520-15017-00

$2.78

29

DAMPER, PLATE 4

3C5-2414N-00-00

$4.02

30

PLATE

1S3-2413X-00-00

$9.22

31

RIVET(81E)

90269-05055-00

$7.02

32

HOSE (L400)

90445-16007-00

$12.02

33

PIPE

31A-14419-00-00

$6.62

34

GROMMET

31A-14435-01-00

$3.54
