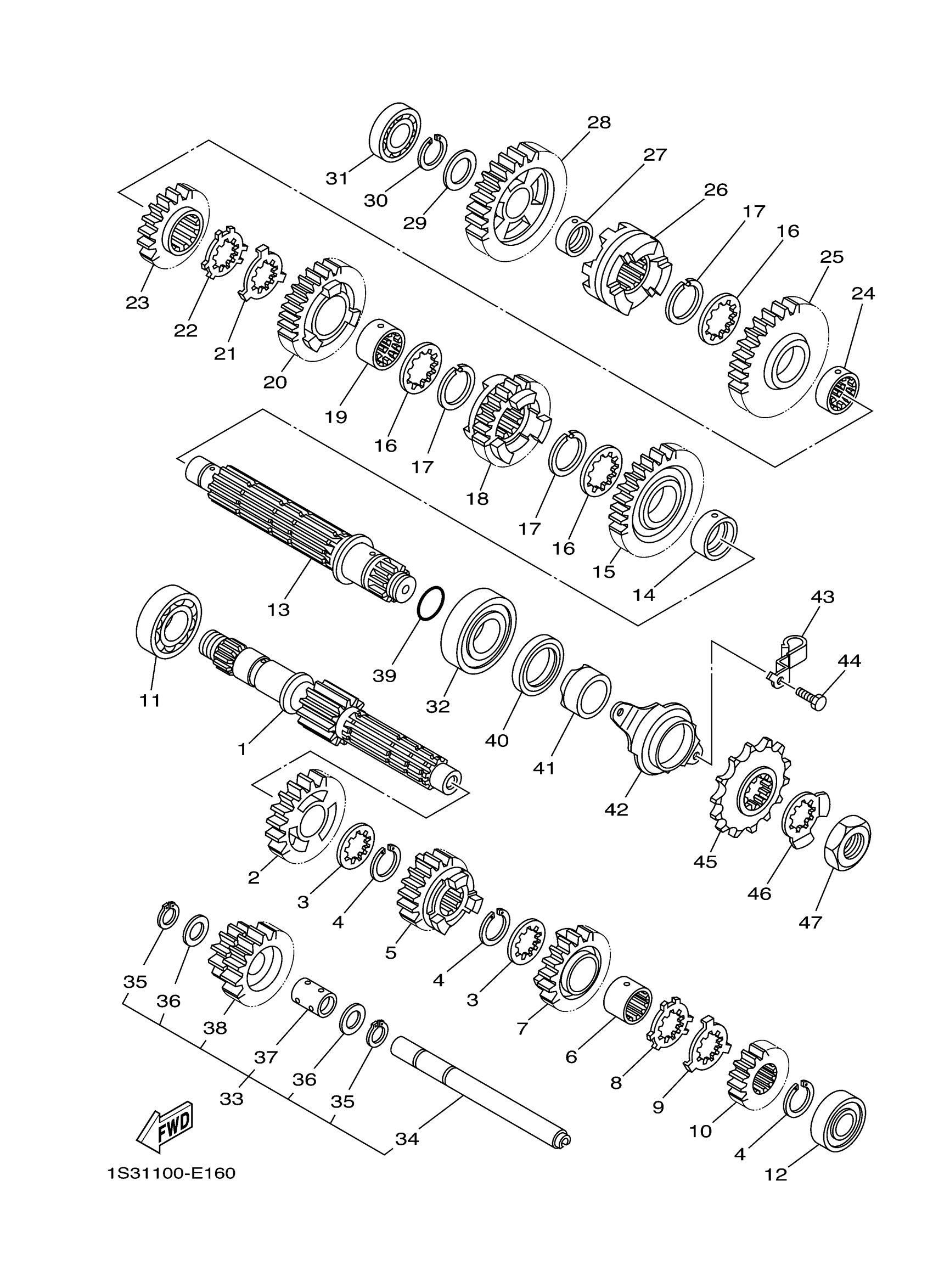

Yamaha YFM70RCCTG (RAPTOR 700R SE CAL) BFKN 2026 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSY

1S3-17401-00-00

$213.04

2

GEAR, 5TH PINION

1S3-17151-00-00

$79.19

3

WASHER

90209-22008-00

$5.14

4

CIRCLIP (4L0)

93440-25084-00

$3.96

5

GEAR, 3RD PINION

1S3-17131-00-00

$86.46

6

COLLAR

90387-22006-00

$30.77

7

GEAR, 4TH PINION

1S3-17141-00-00

$58.60

8

WASHER, CLAW

90214-22003-00

$8.80

9

WASHER, CLAW

90214-22002-00

$5.48

10

GEAR, 2ND PINION

1S3-17121-00-00

$34.96

11

BEARING (3Y1)

93306-20541-00

$33.15

12

BEARING (34L)

93306-00431-00

$36.27

13

DRIVE AXLE ASSY

1S3-17402-00-00

$232.95

14

COLLAR

90387-28008-00

$24.22

15

GEAR, 2ND WHEEL

1S3-17221-00-00

$102.95

16

WASHER

90209-26008-00

$7.03

17

CIRCLIP (2H7)

93440-28062-00

$6.68

18

GEAR, 4TH WHEEL

1S3-17241-00-00

$91.07

19

COLLAR

90387-26005-00

$30.20

20

GEAR, 3RD WHEEL (2

1PE-17231-00-00

$101.03

21

WASHER, CLAW

90214-26002-00

$5.42

22

WASHER, CLAW

90214-26003-00

$5.14

23

GEAR, 5TH WHEEL

1S3-17251-00-00

$75.20

24

COLLAR

90387-26004-00

$30.28

25

GEAR, 1ST WHEEL

1S3-17211-00-00

$93.45

26

CLUTCH, DOG

1S3-17285-00-00

$74.35

27

COLLAR

90387-20021-00

$21.34

28

GEAR, REVERSE WHEEL 2

1S3-17253-00-00

$79.20

29

WASHER PLATE 328171160000

90201-20276-00

$6.57

30

CIRCLIP(1AR)

99009-20400-00

$6.17

31

BEARING (7K2)

93306-00423-00

$30.87

32

BEARING

93306-27803-00

$59.65

33

COUNTER AXLE ASSY

1S3-17430-00-00

$194.15

34

AXLE, IDLE

1S3-17432-00-00

$65.63

35

CIRCLIP

93440-15012-00

$6.17

36

WASHER (566)

90201-15701-00

$6.17

37

COLLAR(4KB)

90387-1504G-00

$28.26

38

GEAR, REVERSE WHEEL 1

1S3-17243-00-00

$105.34

39

O-RING

93210-25001-00

$5.14

40

OIL SEAL(1UY)

93102-35393-00

$17.78

41

COLLAR

90387-28009-00

$23.89

42

PLATE, COVER

1S3-17471-00-00

$16.28

43

CLAMP

90461-10011-00

$10.66

44

BOLT

97012-06014-00

$6.25

45

SPROCKET, DRIVE (14T)

9383G-14231-00

$26.13

46

WASHER, LOCK

90215-25003-00

$7.92

47

NUT

90179-22011-00

$20.12
