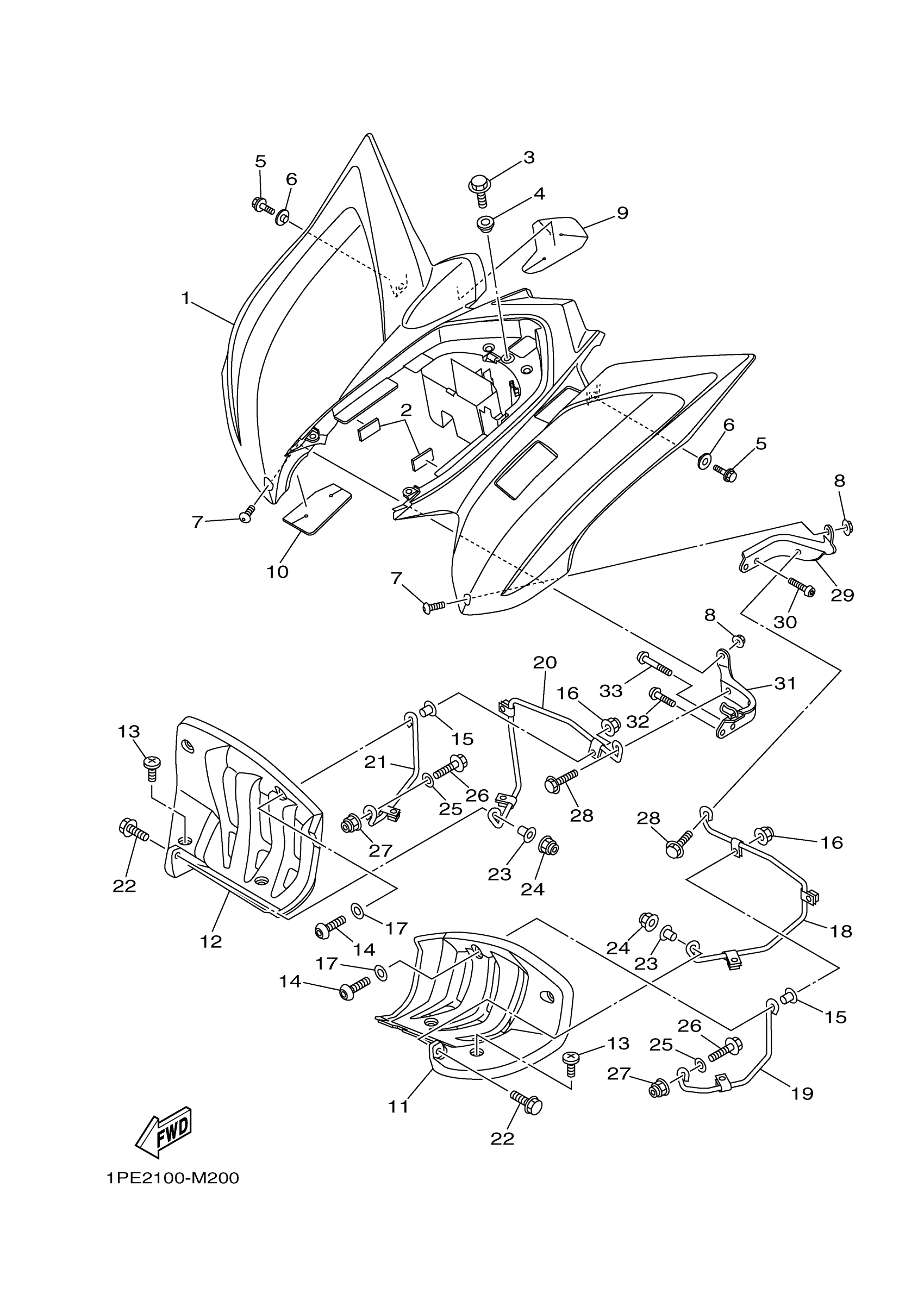

Yamaha YFM70RCCTG (RAPTOR 700R SE CAL) BFKN 2026 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY

1PE-F1600-P0-00

$277.75

2

DAMPER, STOPPER

1S3-2140A-00-00

$6.38

3

BOLT, FLANGE

90105-06084-00

$3.92

4

COLLAR

90387-06153-00

$5.75

5

BOLT, FLANGE

95812-06014-00

$5.45

6

COLLAR

90387-06153-00

$5.75

7

BOLT,HEX SKT HEAD

90111-06814-00

$1.55

8

NUT, U FLANGE

95604-06200-00

$2.35

9

COVER, REAR FENDER 1

1S3-2163A-00-00

$4.15

10

COVER, REAR FENDER 2

1S3-2163E-00-00

$3.57

11

FLAP

1PE-F1621-00-00

$36.22

12

FLAP

1PE-F1691-00-00

$22.15

13

SCREW, BINDING

90154-05043-00

$6.26

14

BOLT, BUTTON HEAD

92012-06025-00

$2.88

15

SPACER (4F2)

90560-06201-00

$12.20

16

NUT, U FLANGE

95604-06200-00

$2.35

17

WASHER, PLATE

90201-06380-00

$0.57

18

STAY 1

1S3-2164F-10-00

$84.11

19

STAY 3

1S3-2164H-20-00

$37.71

20

STAY 2

5TG-2164G-20-00

$71.37

21

STAY 4

1S3-2164J-20-00

$42.45

22

BOLT, FLANGE

95817-06025-00

$1.46

23

COLLAR

90387-06204-00

$6.17

24

NUT, U FLANGE

95604-06200-00

$2.35

25

WASHER, PLATE

90201-08053-00

$5.63

26

BOLT, FLANGE DEEP RECESS

95D32-08020-00

$0.46

27

NUT, SELF-LOCKING

95602-08200-00

$2.77

28

BOLT, FLANGE DEEP RECESS

95D32-08016-00

$0.95

29

STAY, REAR

1PE-F1643-00-00

$20.00

30

BOLT, BUTTON HEAD

92012-08020-00

$2.15

31

STAY, REAR

1PE-F1644-00-00

$26.49

32

BOLT, BUTTON HEAD

92012-08016-00

$6.98

33

BOLT, BUTTON HEAD

92012-08035-00

$3.76
