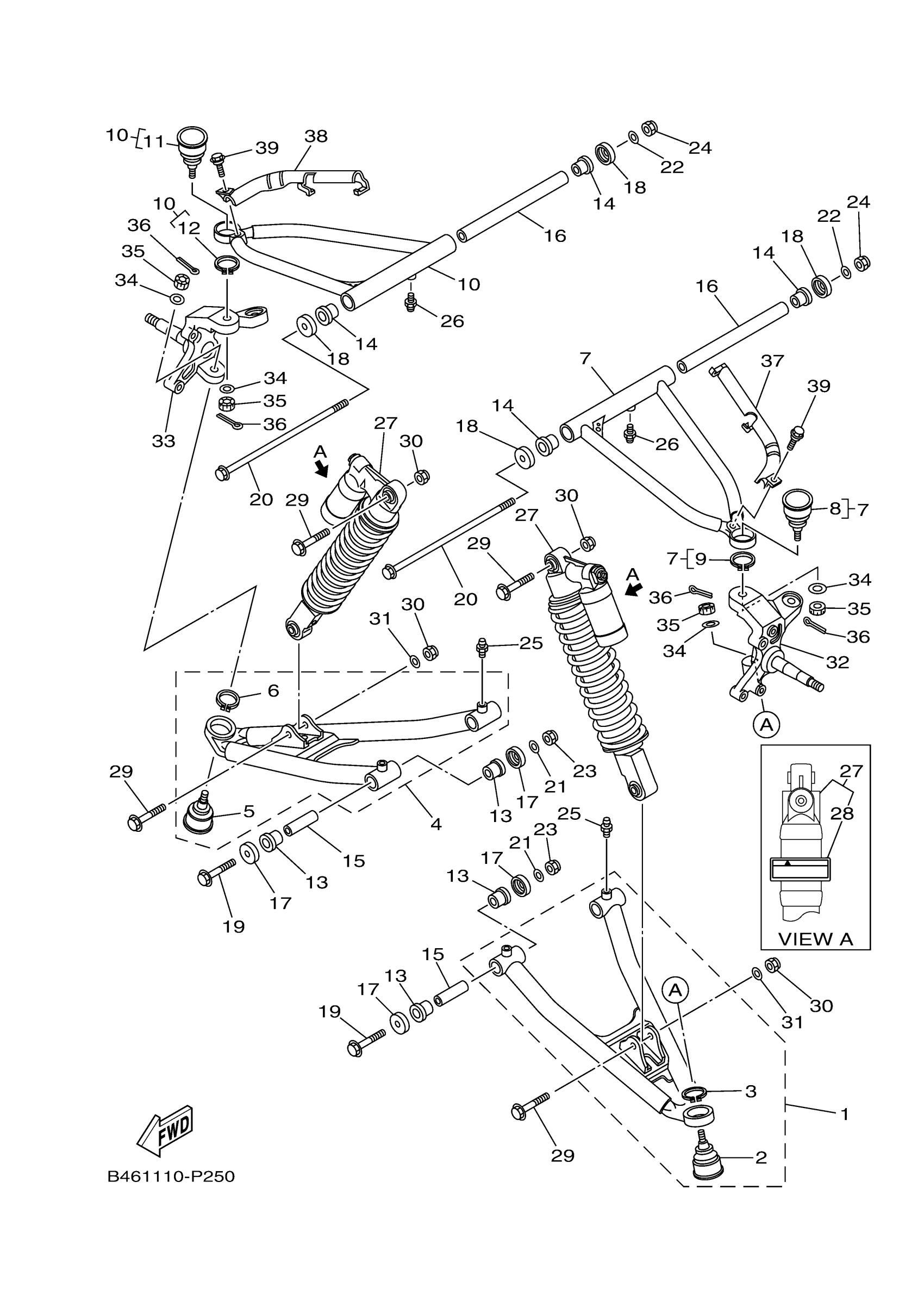

Yamaha YFM70RCCTG (RAPTOR 700R SE CAL) BFKN 2026 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM CO

1PE-F3570-60-00

$56.01

2

BALL JOINT

5LP-23579-00-00

$57.01

3

CIRCLIP(4A6)

99009-30400-00

$6.55

4

FRONT LOWER ARM CO

1PE-F3580-60-00

$51.47

5

BALL JOINT

5LP-23579-00-00

$57.01

6

CIRCLIP(4A6)

99009-30400-00

$6.55

7

FRONT UPPER ARM CO

2LS-F3540-00-00

$73.62

8

BALL JOINT

5LP-23579-00-00

$57.01

9

CIRCLIP(4A6)

99009-30400-00

$6.55

10

FRONT UPPER ARM CO

2LS-F3550-00-00

$73.45

11

BALL JOINT

5LP-23579-00-00

$57.01

12

CIRCLIP(4A6)

99009-30400-00

$6.55

13

BUSH, SOLID(3GG)

90381-15088-00

$20.42

14

BUSH, SOLID(3GG)

90381-15088-00

$20.42

15

COLLAR(1UY)

90387-101R3-00

$17.22

16

COLLAR(3GG)

90387-100Y6-00

$28.35

17

COVER, THRUST 1

1UY-23517-01-00

$6.38

18

COVER, THRUST 1

1UY-23517-01-00

$6.38

19

BOLT, FLANGE

90105-10135-00

$5.14

20

BOLT, WASHER BASED(3GG)

90105-10651-00

$10.78

21

WASHER, PLATE

90201-10037-00

$6.49

22

WASHER, PLATE

90201-10037-00

$6.49

23

NUT, SELF-LOCKING

90185-10817-00

$1.03

24

NUT, SELF-LOCKING

90185-10817-00

$1.03

25

NIPPLE, GREASE

93700-06M03-00

$7.15

26

NIPPLE, GREASE

93700-06M03-00

$7.15

27

SHOCK ABSORBER ASSY 2

B46-F3390-91-00

$524.99

28

LABEL, WARNING

BB5-F2259-00-00

$2.14

29

BOLT, FLANGE

90105-10131-00

$5.14

30

NUT, SELF-LOCKING

90185-10817-00

$1.03

31

WASHER, PLATE

90201-10035-00

$3.56

32

STEERING KNUCKLE ASSY (LEFT)

1S3-23501-01-00

$283.11

33

STEERING KNUCKLE ASSY (RIGHT)

1S3-23502-01-00

$287.80

34

WASHER (25G)

90209-10229-00

$5.86

35

NUT, CASTLE

90171-10001-00

$2.85

36

PIN, COTTER

91490-20025-00

$1.31

37

HOLDER, BRAKE HOSE

2LS-F5875-00-00

$3.52

38

HOLDER, BRAKE HOSE

2LS-F5876-00-00

$3.52

39

BOLT

90109-06264-00

$4.34
