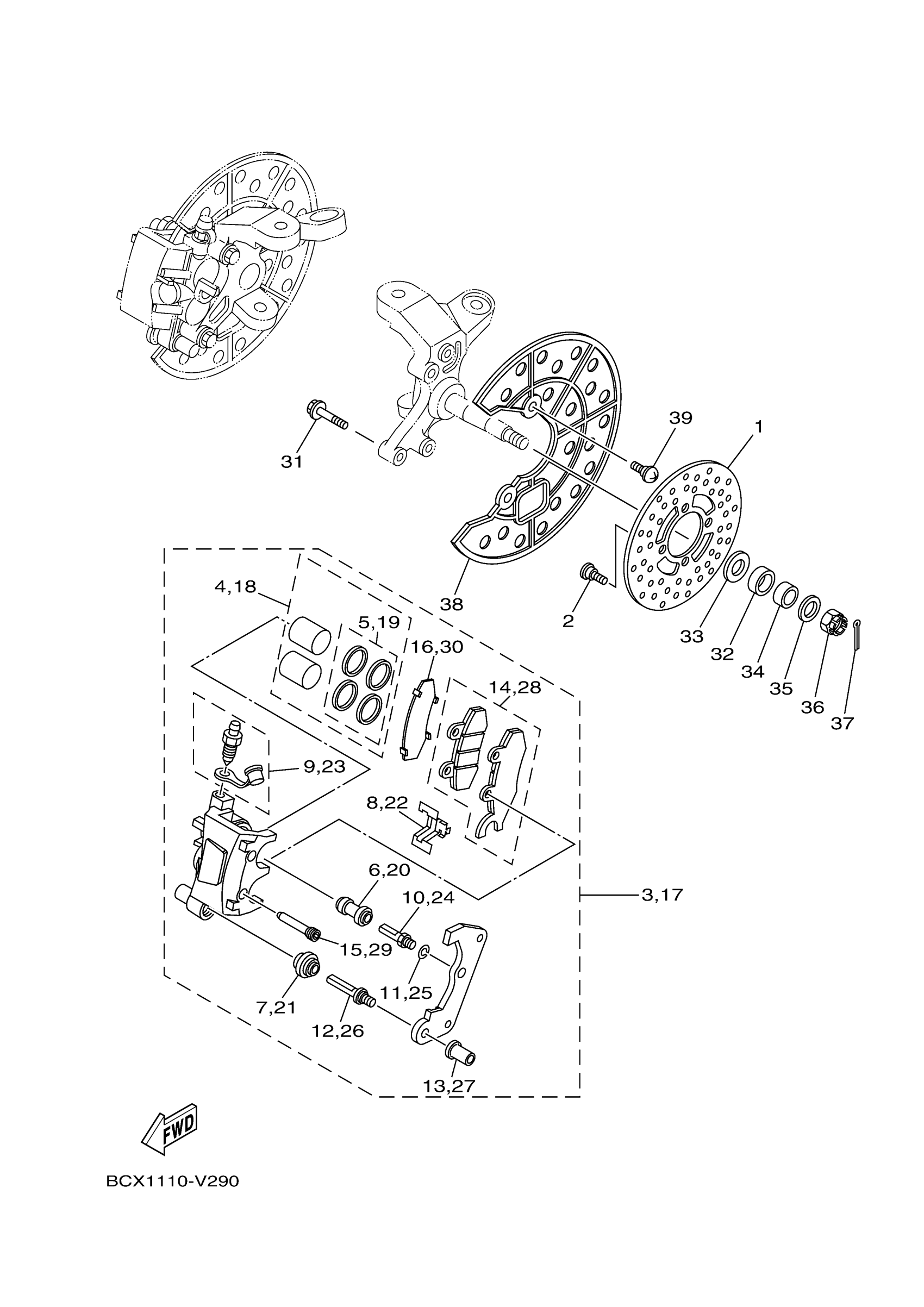

Yamaha YFM70RCCTG (RAPTOR 700R SE CAL) BFKN 2026 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

4XE-F582T-11-00

$85.53

2

BOLT

90109-08087-00

$2.65

3

CALIPER ASSY (LEFT)

1S3-2580T-01-00

$290.14

4

PISTON ASSY, CALIPER

5TG-W0057-00-00

$72.98

5

CALIPER SEAL KIT

3LC-W0047-50-00

$50.68

6

BOOT 2

1UY-25937-51-00

$12.27

7

BOOT, CALIPER

3JD-25917-00-00

$7.51

8

SUPPORT, PAD

3JD-25919-00-00

Unavailable

9

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

10

BOLT

1UY-25926-51-00

$3.34

11

WASHER, SPRING

1UY-25938-51-00

$7.51

12

BOLT

3JD-25926-00-00

$6.43

13

NUT

3JD-25961-00-00

$6.94

14

BRAKE PAD KIT

1S3-W0045-00-00

$40.38

15

PIN, PAD

5TG-25924-00-00

$14.25

16

SHIM, CALIPER

1S3-25828-00-00

$14.14

17

CALIPER ASSY (RIGHT)

1S3-2580U-01-00

$287.43

18

PISTON ASSY, CALIPER

5TG-W0057-00-00

$72.98

19

CALIPER SEAL KIT

3LC-W0047-50-00

$50.68

20

BOOT 2

1UY-25937-51-00

$12.27

21

BOOT, CALIPER

3JD-25917-00-00

$7.51

22

SUPPORT, PAD

3JD-25919-00-00

Unavailable

23

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

24

BOLT

1UY-25926-51-00

$3.34

25

WASHER, SPRING

1UY-25938-51-00

$7.51

26

BOLT

3JD-25926-00-00

$6.43

27

NUT

3JD-25961-00-00

$6.94

28

BRAKE PAD KIT

1S3-W0045-10-00

$40.38

29

PIN, PAD

5TG-25924-00-00

$14.25

30

SHIM, CALIPER

1S3-25828-00-00

$14.14

31

BOLT, FLANGE

90105-08184-00

$4.77

32

COLLAR

90387-20005-00

$21.51

33

WASHER, PLATE

90201-20022-00

$6.78

34

COLLAR(1UY)

90387-150R1-00

$6.29

35

WASHER PLATE 248181370000

90201-14220-00

$6.17

36

NUT, CASTLE

90171-14002-00

$7.62

37

PIN, COTTER

91401-30025-00

$6.18

38

RING, WHEEL 1 (LEFT)

5TG-2514A-00-00

$9.32

39

SCREW

90149-06117-00

$5.24
