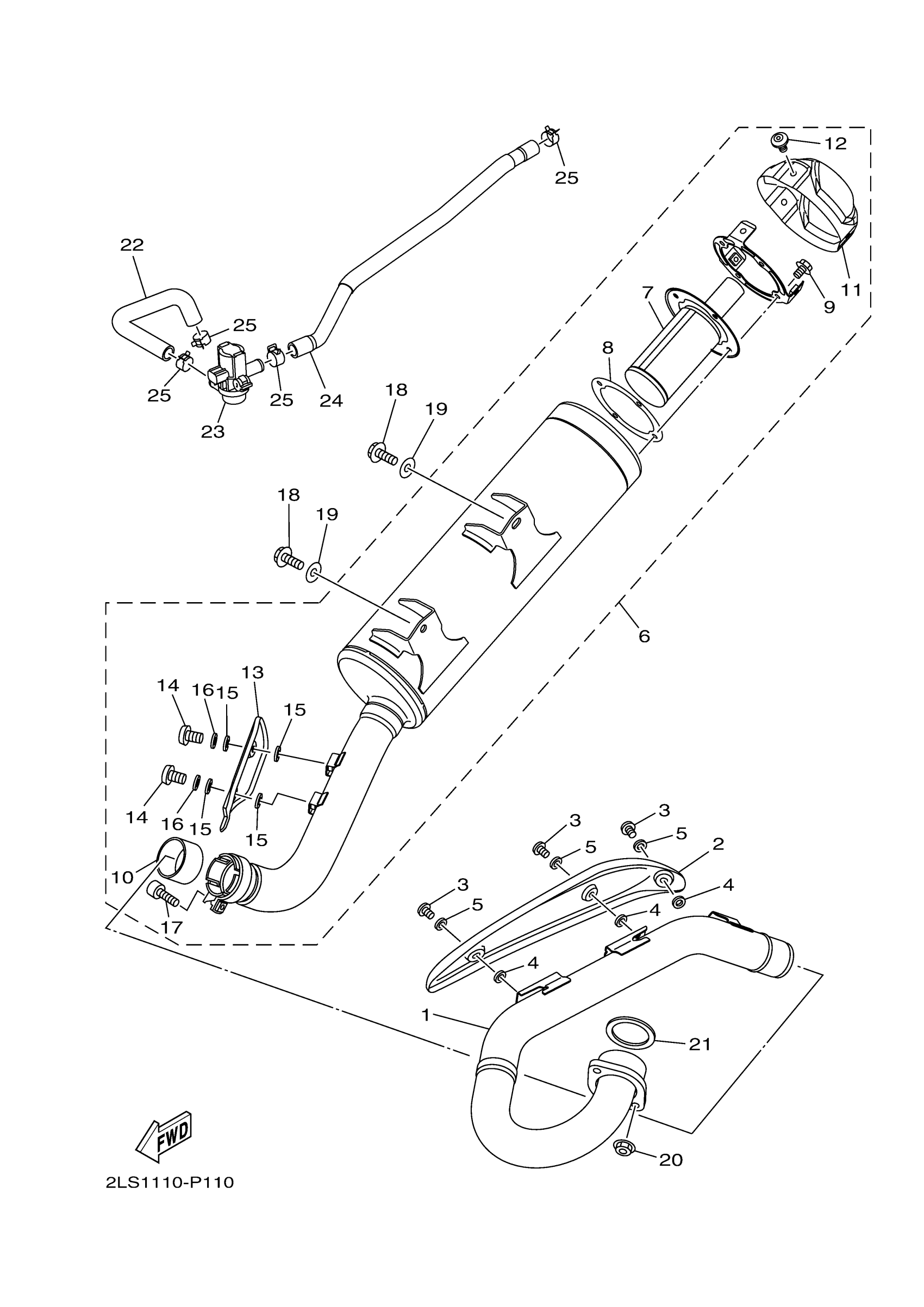

Yamaha YFM70RCCTG (RAPTOR 700R SE CAL) BFKN 2026 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2LS-E4611-00-00

$128.71

2

PROTECTOR, EXHAUST

2LS-E4628-00-00

$54.57

3

SCREW, BIND(1JK)

98980-06010-00

$5.20

4

WASHER, PLATE

90201-05019-00

$3.76

5

WASHER, PLATE

90201-05037-00

$3.49

6

MUFFLER ASSY 1

2LS-E4710-01-00

$311.03

7

SPARK ARRESTER ASS

2LS-E4780-00-00

$62.29

8

GASKET, SILENCER

2BG-E4755-00-00

$18.95

9

BOLT, FLANGE

95022-06012-00

$3.00

10

GASKET, MUFFLER

2LS-E4714-00-00

$56.22

11

CAP, SILENCER

1TD-E4787-00-00

$61.77

12

SCREW(3XV)

90149-06298-00

$4.28

13

. PROTECTOR, MUFFLER 2

2LS-E4728-00-00

$24.54

14

SCREW, BIND(1JK)

98980-06010-00

$5.20

15

WASHER, PLATE

90201-05017-00

$6.29

16

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

17

BOLT, SOCKET

91314-08035-00

$2.57

18

BOLT, FLANGE

90105-08142-00

$4.91

19

WASHER, PLATE

90201-08048-00

$5.75

20

NUT,FLANGE(J10)

95702-08500-00

$0.80

21

GASKET, EXHAUST PIPE

3EG-14613-00-00

$20.15

22

HOSE, BEND 1

2LS-E4881-00-00

$4.14

23

AIR CUT VALVE ASSY

1TD-14840-00-00

$88.60

24

HOSE, BEND 2

2LS-E4882-00-00

$7.74

25

CLIP(3TB)

90467-17128-00

$6.68
