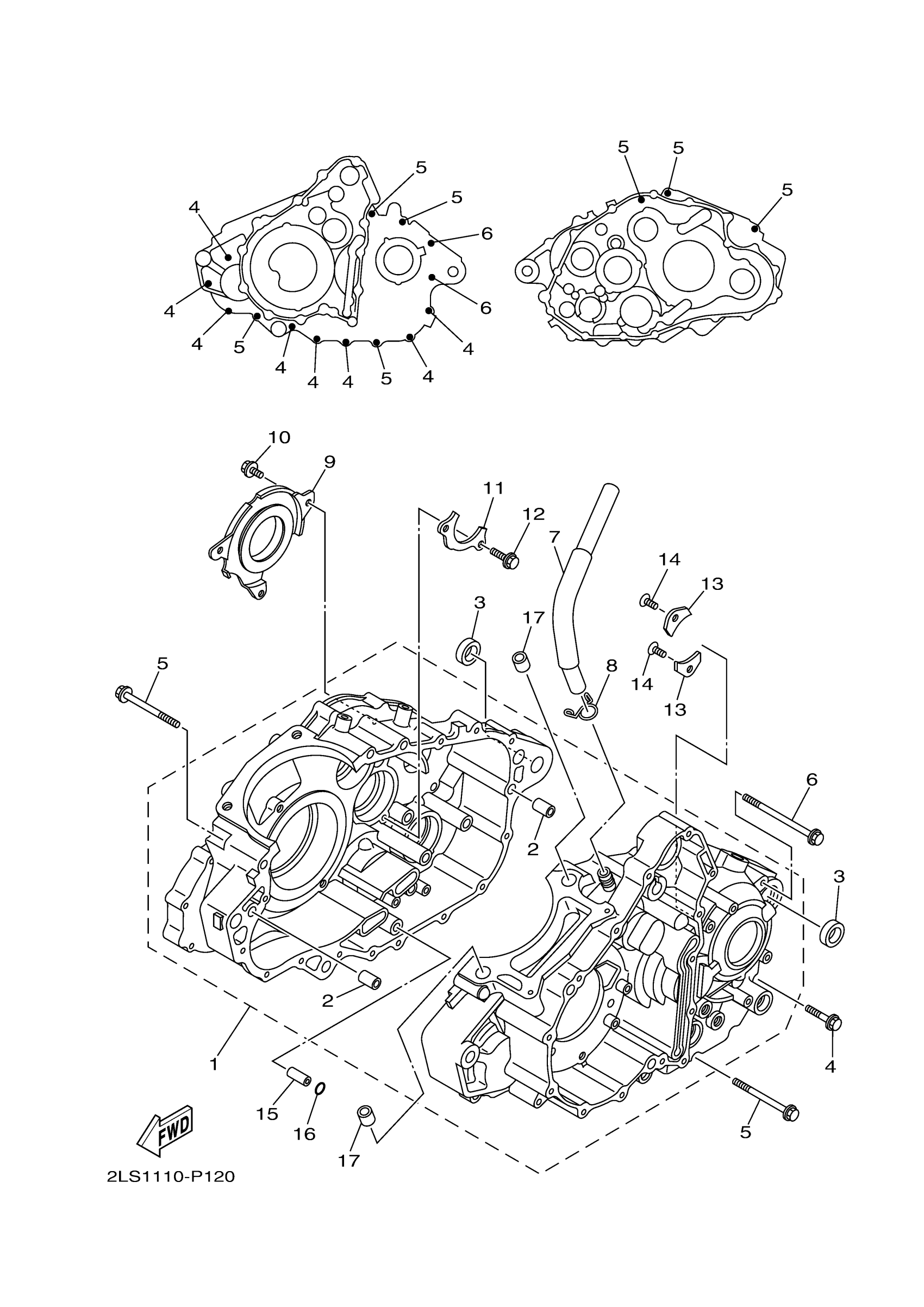

Yamaha YFM70RCCTG (RAPTOR 700R SE CAL) BFKN 2026 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1PE-15100-09-00

$1,395.99

2

PIN, DOWEL(3VD)

99530-10114-00

$2.23

3

COLLAR

90387-17009-00

$14.46

4

BOLT, FLANGE

95022-06030-00

$1.40

5

BOLT, FLANGE

95022-06070-00

$2.02

6

BOLT, FLANGE

95022-06090-00

$1.74

7

PIPE, BREATHER 1

2LS-E1166-00-00

$5.52

8

CLIP

90467-140A4-00

$8.31

9

PLATE, BREATHER

1S3-11165-00-00

$14.49

10

BOLT, FLANGE

95022-06012-00

$3.00

11

PLATE, BEARING COVER

1S3-15383-00-00

$6.52

12

BOLT, FLANGE

95022-06020-00

$3.32

13

PLATE, BEARING COVER

4JT-15381-01-00

$10.54

14

SCREW, COUNTERSUNK

90151-06052-00

$6.38

15

PIN, DOWEL(3XW)

91808-16023-00

$5.48

16

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.35

17

PIN, DOWEL

99530-14016-00

$3.20
