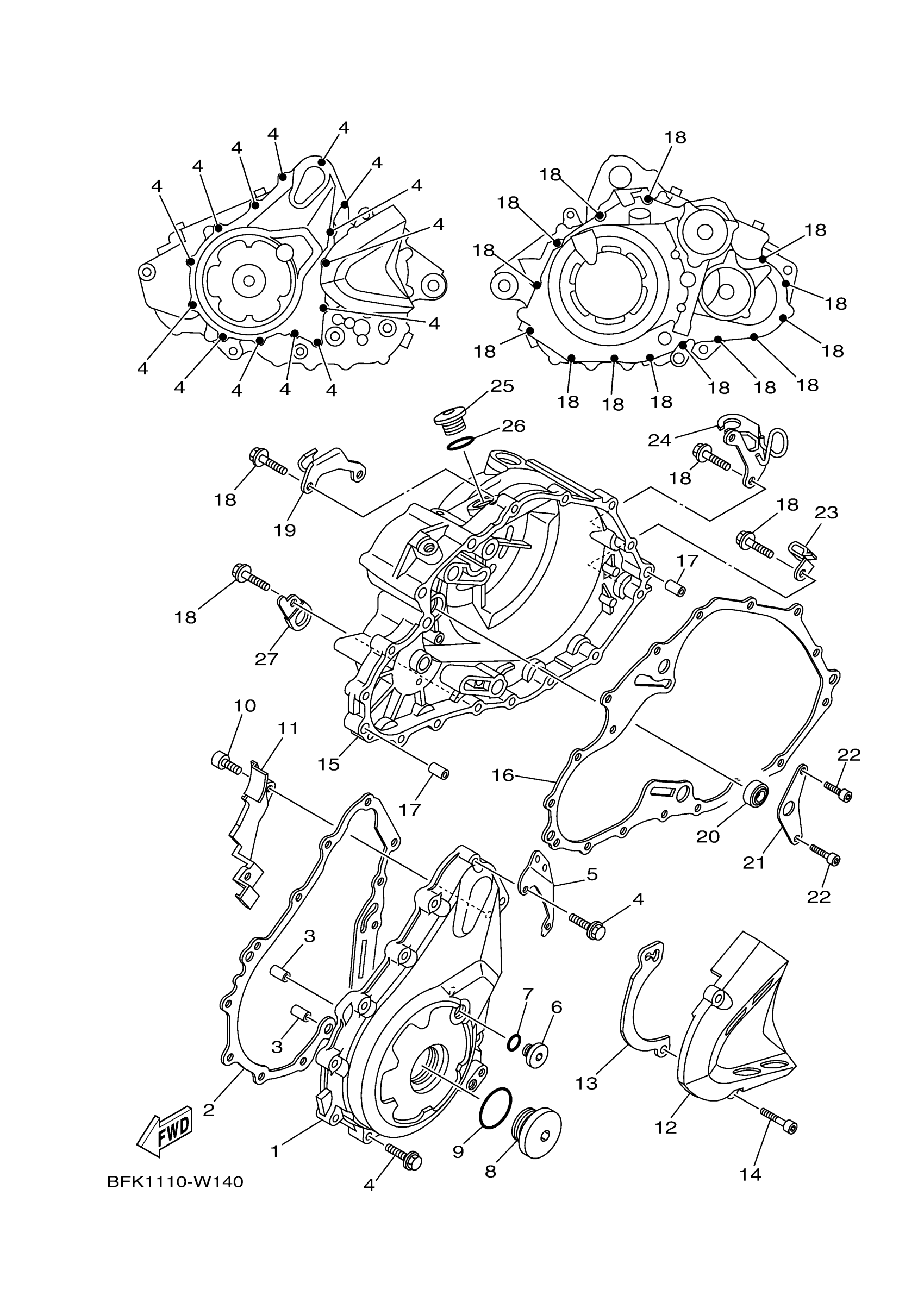

Yamaha YFM70RCCSR (RAPTOR 700R SE CAL) BFKK 2025 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1S3-15411-00-00

$224.44

2

GASKET, CRANKCASE COVER 1

1S3-15451-00-00

$14.81

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT, FLANGE

95022-06030-00

$1.31

5

STAY 2

BFK-14494-00-00

$6.55

6

PLUG, STRAIGHT SCREW

90340-14016-00

$14.23

7

O-RING (2H9)

93210-14369-00

$5.42

8

PLUG, STRAIGHT SCREW

90340-36004-00

$14.93

9

O-RING

93210-35804-00

$0.46

10

BOLT

91312-05014-00

$2.56

11

PLATE

1S3-15113-00-00

$15.02

12

COVER, CRANKCASE 2

1S3-15421-00-00

$18.68

13

GUIDE, CHAIN

1S3-17466-00-00

$14.93

14

BOLT,SOCKET

91317-06025-00

$1.91

15

COVER, CRANKCASE 3

1S3-15431-00-00

$350.82

16

GASKET, CRANKCASE COVER 3

1S3-15462-00-00

Unavailable

17

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

18

BOLT, FLANGE

95022-06030-00

$1.31

19

HOLDER, CLUTCH CABLE

1S3-15441-00-00

Unavailable

20

OIL SEAL(4GY)

93101-14164-00

Unavailable

21

HOLDER

1S3-15118-00-00

Unavailable

22

BOLT,SOCKET

91317-06012-00

Unavailable

23

CLAMP

90461-10011-00

Unavailable

24

HOLDER

1S3-1546C-00-00

Unavailable

25

PLUG

4H7-15189-00-00

Unavailable

26

O-RING

93210-20802-00

Unavailable

27

CLAMP

90462-08046-00

Unavailable
