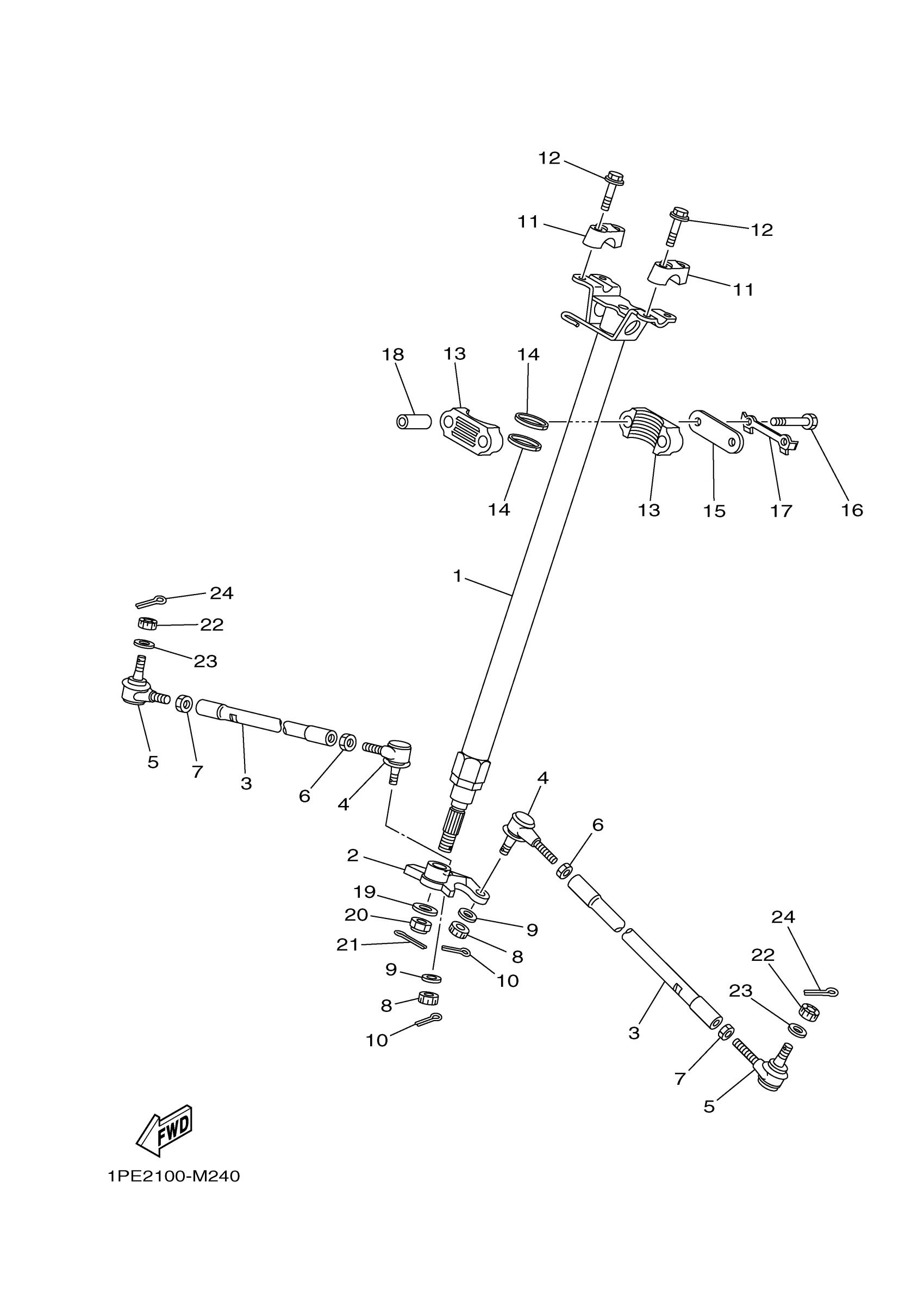

Yamaha YFM70RCCSL (RAPTOR 700R CAL) BFKH 2025 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

1PE-F3813-00-00

$200.99

2

ARM, PITMAN

1PE-F3816-00-00

Unavailable

3

ROD, TIE

1PD-23831-00-00

$61.99

4

JOINT, UNIVERSAL 1

1S3-23841-20-00

$64.99

5

JOINT, UNIVERSAL 2

1S3-23845-20-00

$64.99

6

NUT, HEXAGON SMALL

95317-12700-00

$8.49

7

NUT (821-23834-00)

90170-12054-00

$8.49

8

NUT, CASTLE

90171-10001-00

$7.49

9

WASHER (25G)

90209-10229-00

$7.49

10

PIN, COTTER

91490-20025-00

$1.99

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

12

BOLT, FLANGE DEEP RECESS

95D32-08030-00

$1.28

13

PLANE BEARING, STE

37S-F3812-00-00

$7.99

14

OIL SEAL

93112-31800-00

$1.59

15

BRACKET, STEERING

1PE-F3868-00-00

Unavailable

16

BOLT, HEXAGON

97017-08060-00

Unavailable

17

WASHER, LOCK 1

1UY-23894-01-00

Unavailable

18

COLLAR(85G)

90387-106T4-00

Unavailable

19

WASHER, PLATE

90201-14021-00

Unavailable

20

NUT, SELF-LOCKING

90185-14009-00

Unavailable

21

PIN, COTTER

91490-20035-00

Unavailable

22

NUT, CASTLE

90171-10001-00

$7.49

23

WASHER (25G)

90209-10229-00

$7.49

24

PIN, COTTER

91490-20025-00

$1.99
